Patented Modular Truck-Rack
& Loading Platform
Starts as a premium aluminum headache rack. Expands into a loading and transport ecosystem — powersports equipment and watercraft one day, lumber, ladders and building materials the next — while keeping the truck bed usable and the trailer hitch free. Patent issued. Prototypes proven.
Start with the rack. Sell the ecosystem. Own the upgrade path.
A conventional headache rack protects the cab and carries a ladder. It does one job, and it gives the customer no reason to come back.
Nothing in the category is designed to be extended, so there is no attachment revenue after the initial sale and no second transaction to plan for.
Free-standing ramps and elevated decks put the operator beneath an unstable load — usually at height, usually working alone.
Storage, maintenance, licensing and insurance — and the hitch is occupied for as long as the trailer is in use.
Most rack and deck systems take over the cargo bed rather than preserving it, removing the truck’s primary utility.
Owners end up with a trailer, a ramp set and a rack — or a second vehicle — because no single product spans the use cases.
9 documented hazards in conventional powersports hauling — and how the design removes each one.
Every conventional way of hauling a machine puts a person in the path of a heavy, unstable load — usually while working at height, usually alone, often on a wet or icy surface. Frostrack doesn’t manage those hazards with procedure and PPE. It removes them.
Elimination & engineering controls — the top of the hierarchy
Loading ramps slip off the tailgate or shift under load. The machine slides back and can land on whoever is behind or beneath it. These are struck-by and crush events, with potential for serious or fatal injury.
The machine rides a wheeled cradle captured inside telescoping rails and is drawn up under winch power. Nothing can kick out sideways or run away, and the operator stands clear at ground level — never behind or under the load.
Operators routinely ride an ATV or sled up a narrow ramp onto a deck four to seven feet up. A lost edge, a slipped track or a little too much throttle becomes a fall from height with several hundred pounds of machine on top of the rider.
Loading happens from the ground. The rider is never on the machine while it is moving up, and never elevated during the load. The fall exposure is designed out, not mitigated.
With deck and over-cab systems somebody has to physically get up to the machine before it can be driven aboard, then get back down once it is up there. That means climbing the ramp, a tire, the bed rail or the rack itself — in riding boots, often in the dark or on ice, with no handhold and nothing to tie off to. It happens twice per machine, every single trip, and each one is an unprotected climb at height.
The machine rides its cradle up under winch power while the operator stays flat-footed on the ground. There is no mounting the machine at height, no dismount from a loaded deck, and no repeated climbing exposure — the single most frequent height exposure in powersports hauling is removed outright.
Some powersports racks carry loads above the cab — seven to nine feet up. Someone has to climb the rack or the load to position and strap it. On any job site that would be treated as unprotected work at height — no guardrail, nowhere to tie off — and a fall from that height carries serious injury potential.
Frostrack carries high too — that’s what keeps the bed usable and the hitch free. The difference is that nobody goes up with it: the machine is winched into place and captured on locking pins from ground level. The design eliminates the need for the operator to climb onto the elevated load during normal loading and unloading, rather than relying on a worker to arrest a fall after one starts.
Steel sled decks and heavy ramp systems can run 200–500 lb. Fitting or pulling one takes a crew, a hoist or a forklift — and produces the familiar injuries: crushed hands and feet, dropped loads, and back and shoulder strain.
Lightweight aluminum, turnbuckle-clamped with quick pins. One person installs or removes it in minutes with no crew, no forklift and no drilling into the truck — so the manual-handling exposure largely disappears.
Wet, algae-slick concrete on a blind reverse, often with people and children moving around the ramp. Tow vehicles do slide in, with real potential to lose the vehicle — or worse.

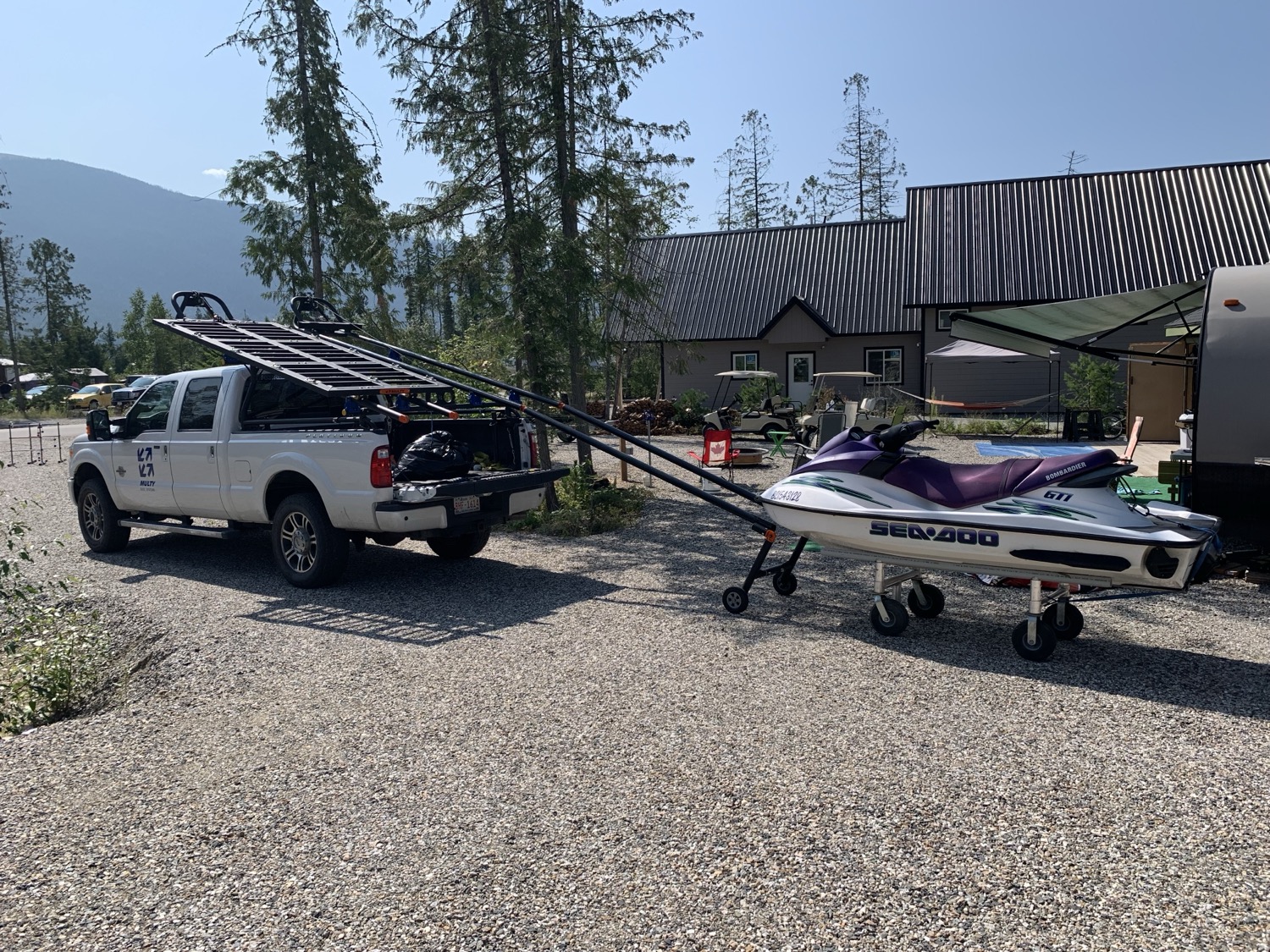

Watercraft launch directly off the rack wherever the truck can reach. No reversing down a slick grade, no trailer in the water, no spotter standing in the traffic path.
Sway and jackknife at highway speed, blind-spot reversing, tongues dropped on feet, hitch and coupler pinch points, unmaintained bearings and blowouts, plus the yard-handling injuries of moving a trailer by hand.

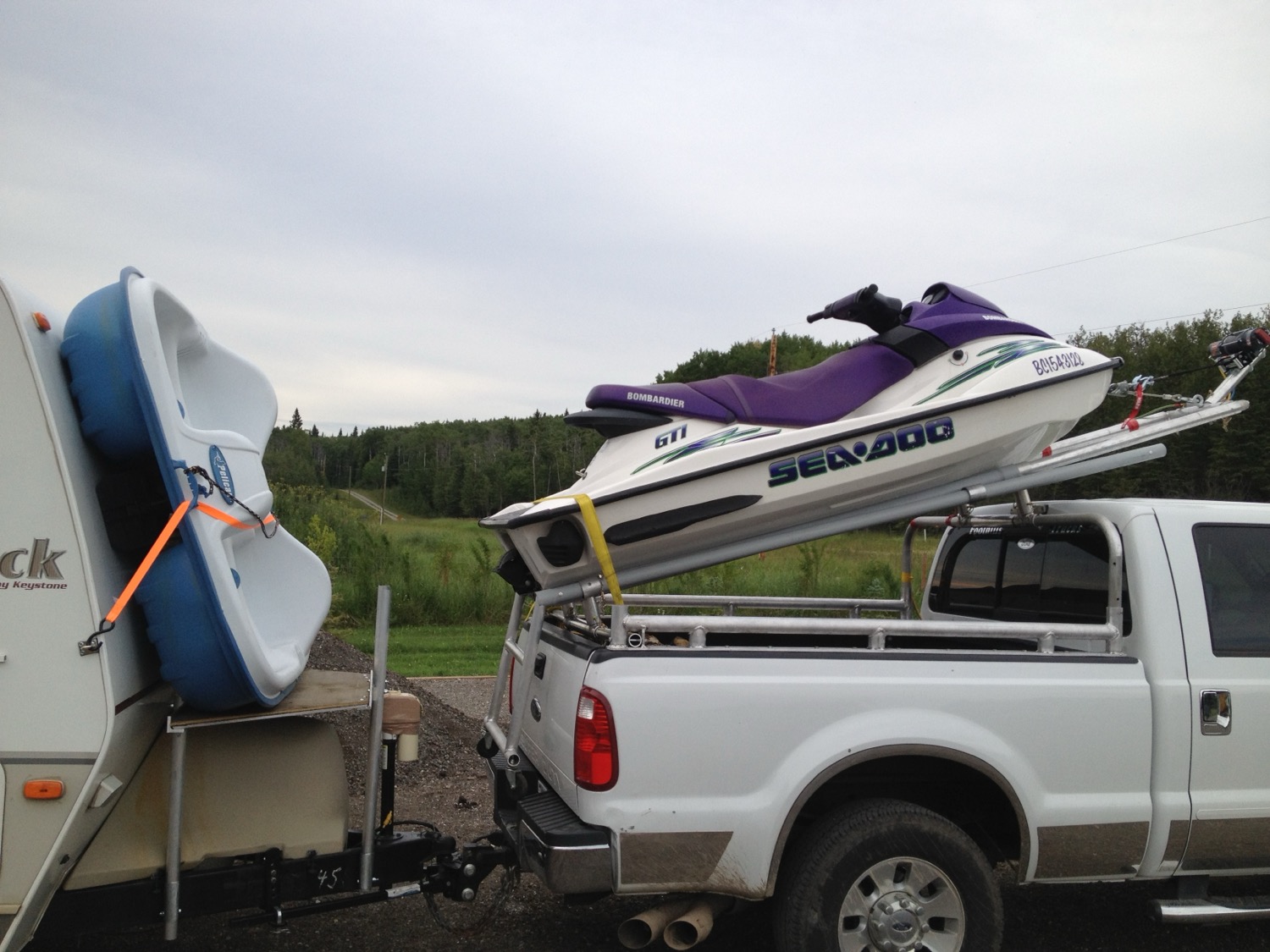

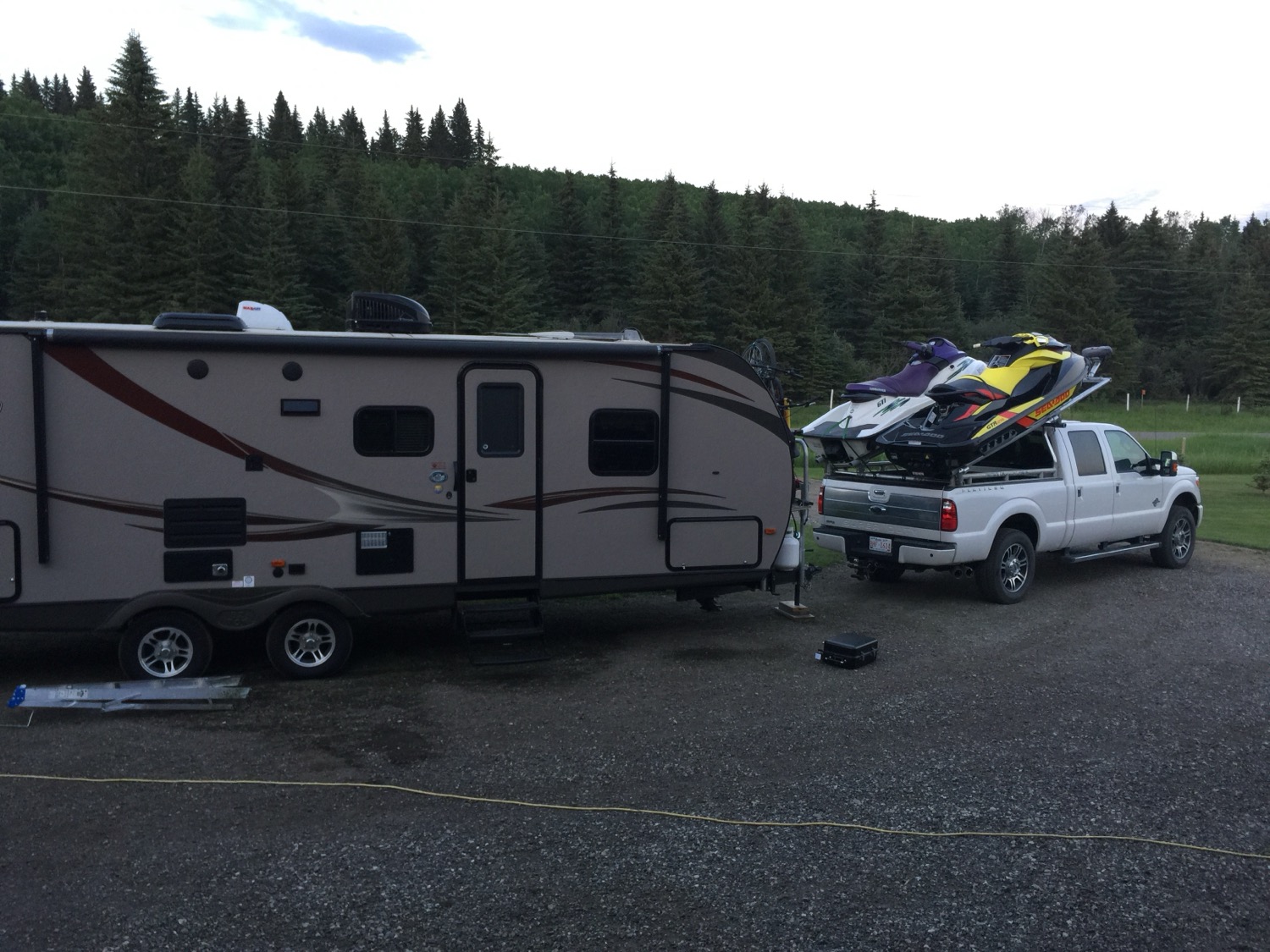

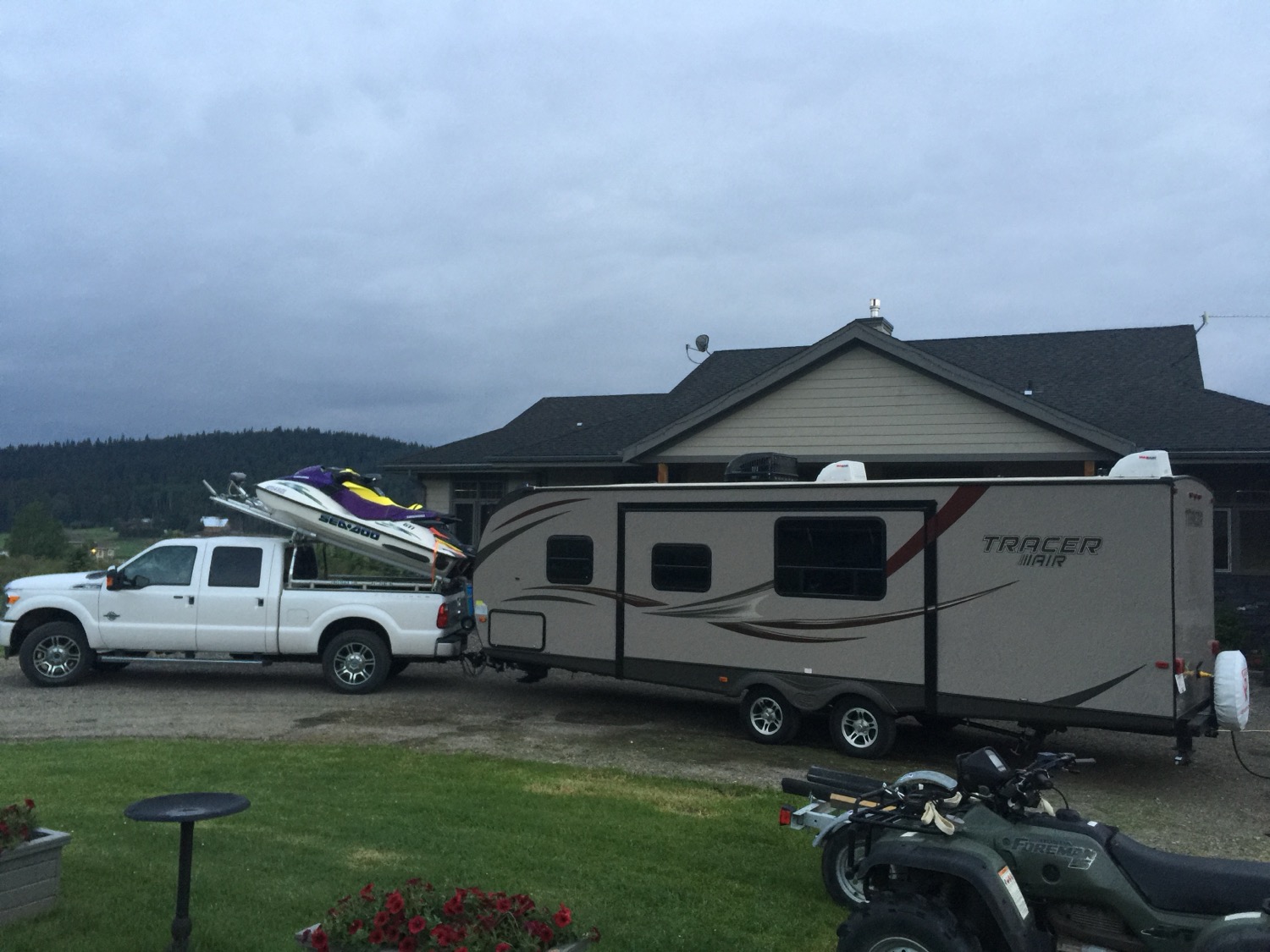

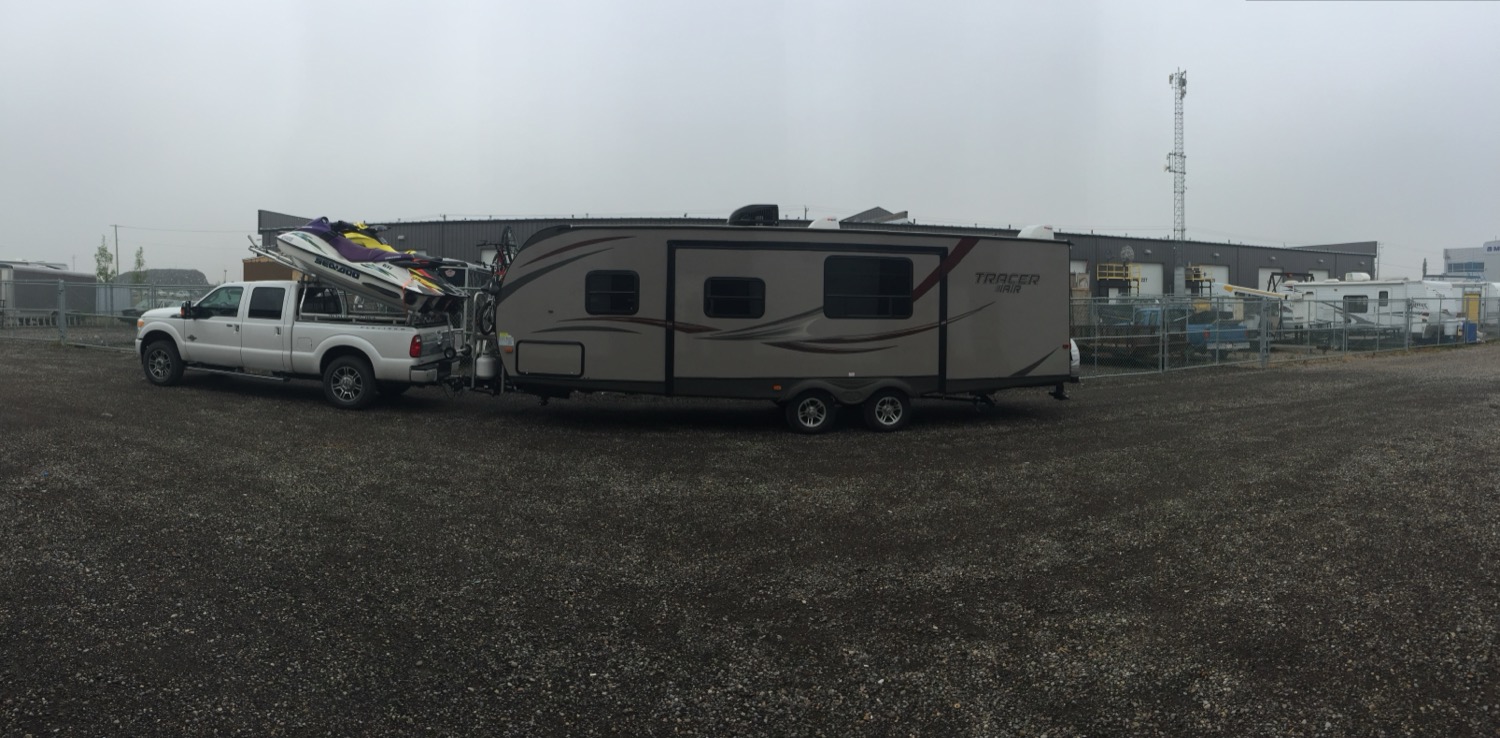

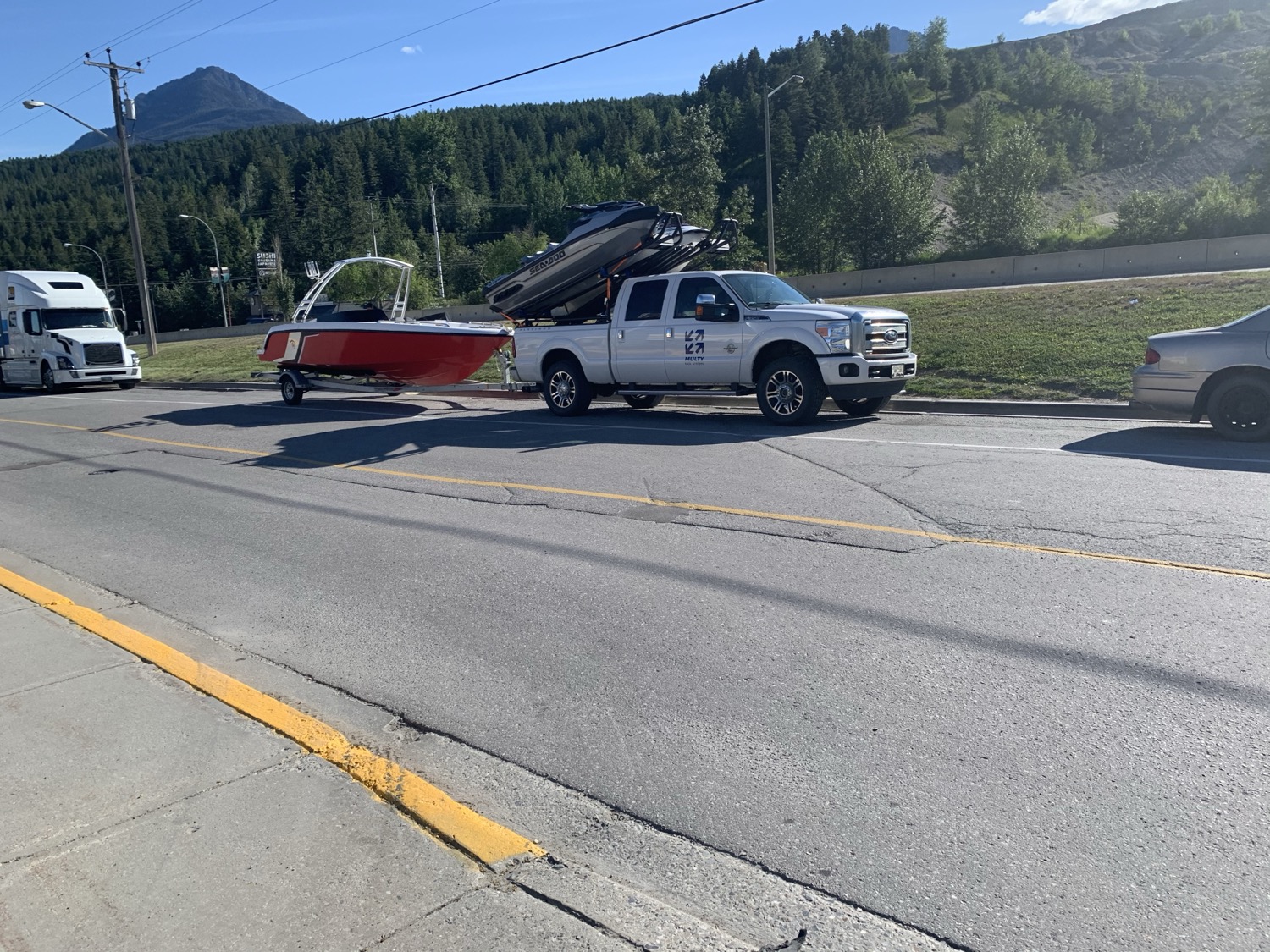

The equipment rides on the truck and the hitch stays free. An entire category of towing exposure is removed from the trip — and you can still pull a camper if you want one.
Generators, pumps, coolers, appliances and tool cases lifted into a bed by hand, usually with a twist at the end of a long day. Repetitive lifting of awkward, heavy loads is a well-recognized source of strain and back injury.

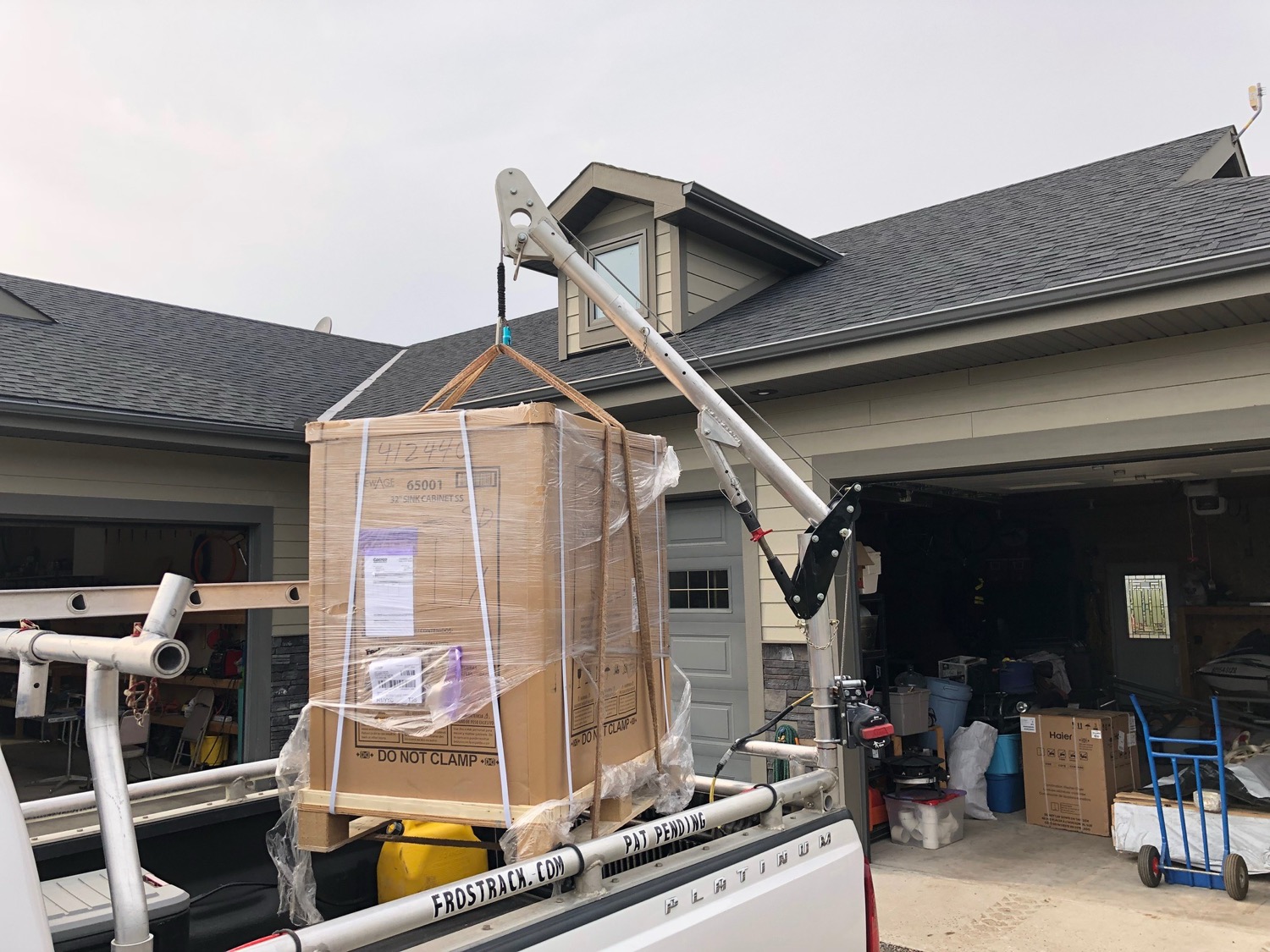

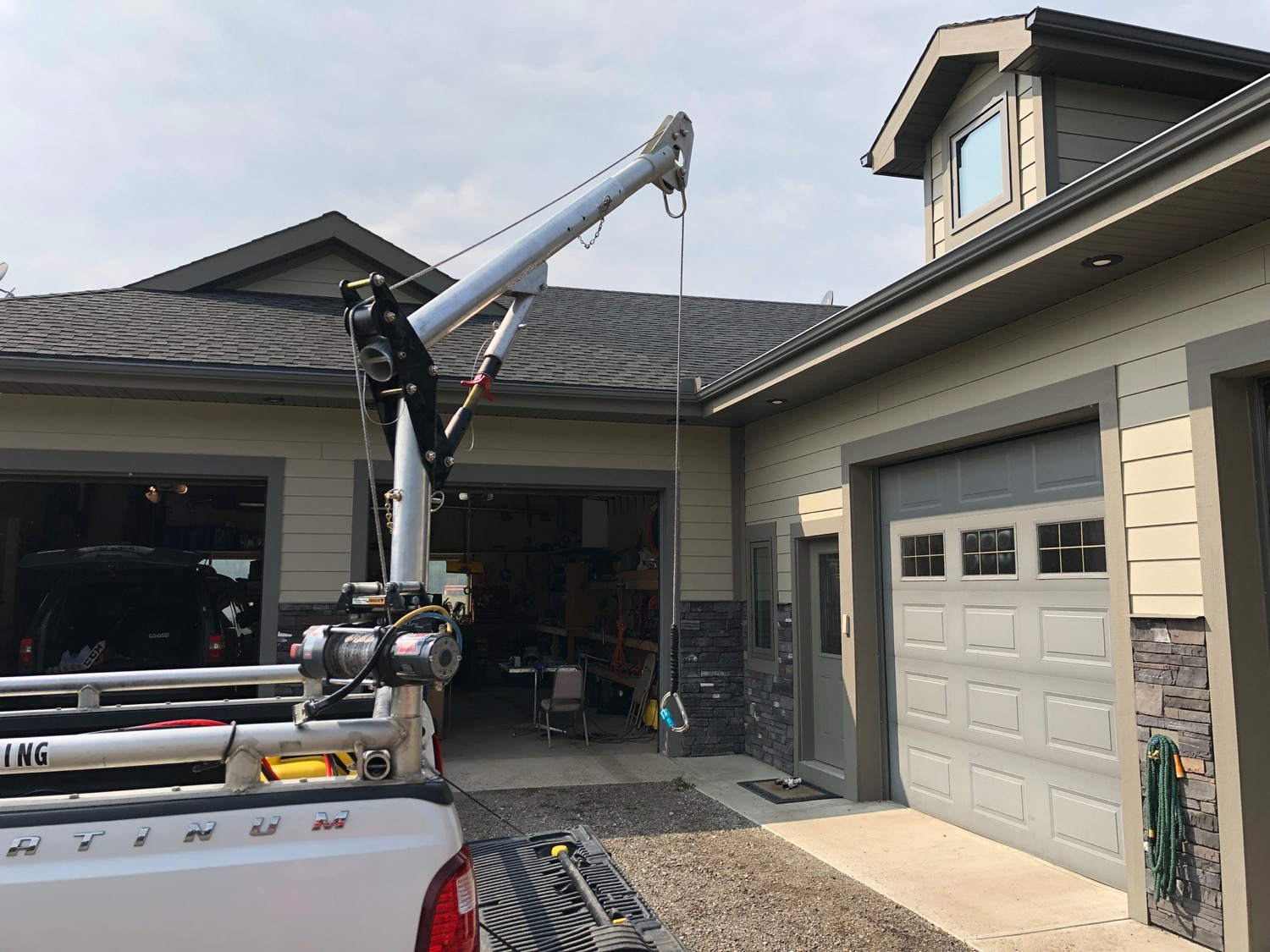

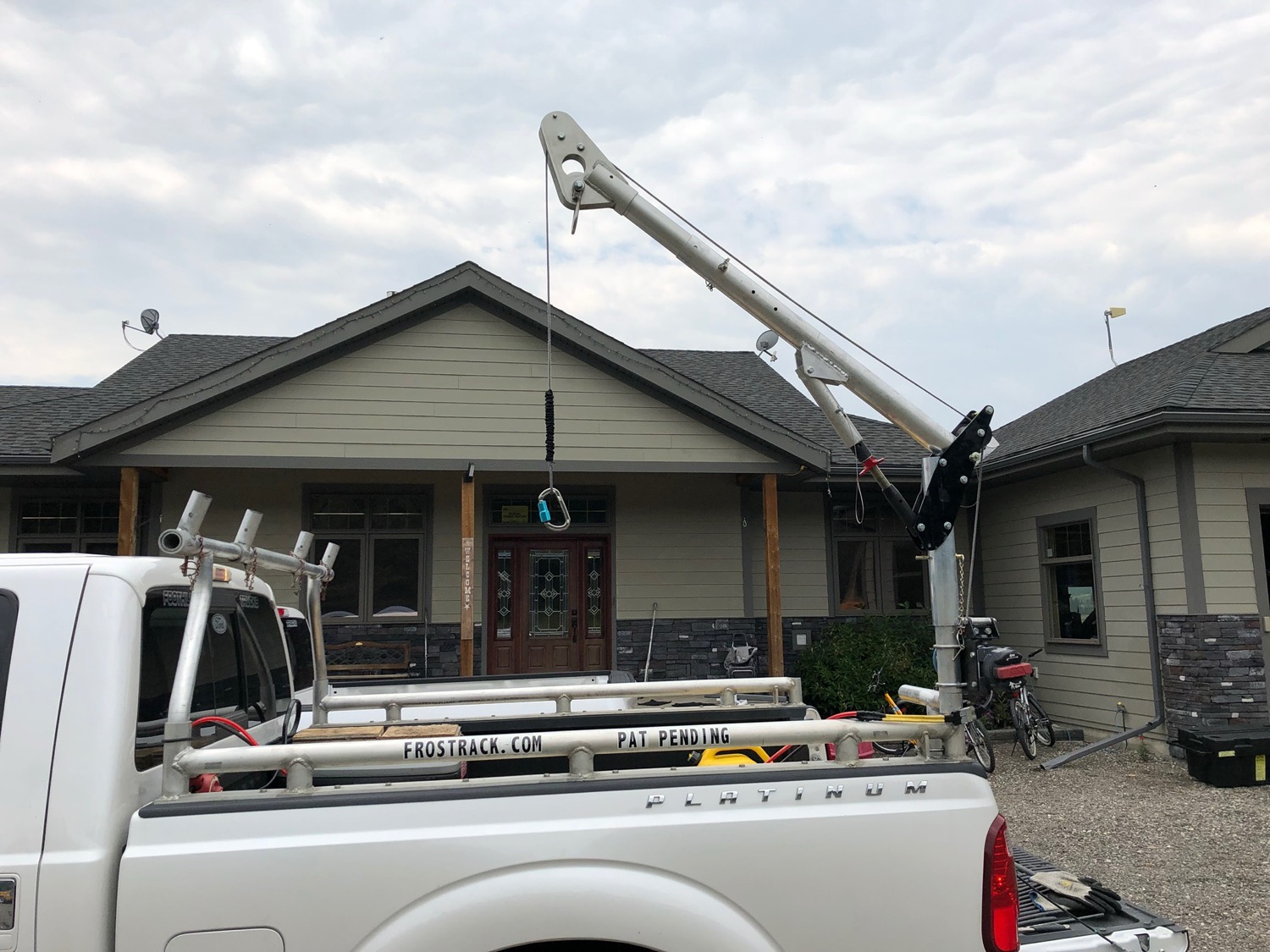

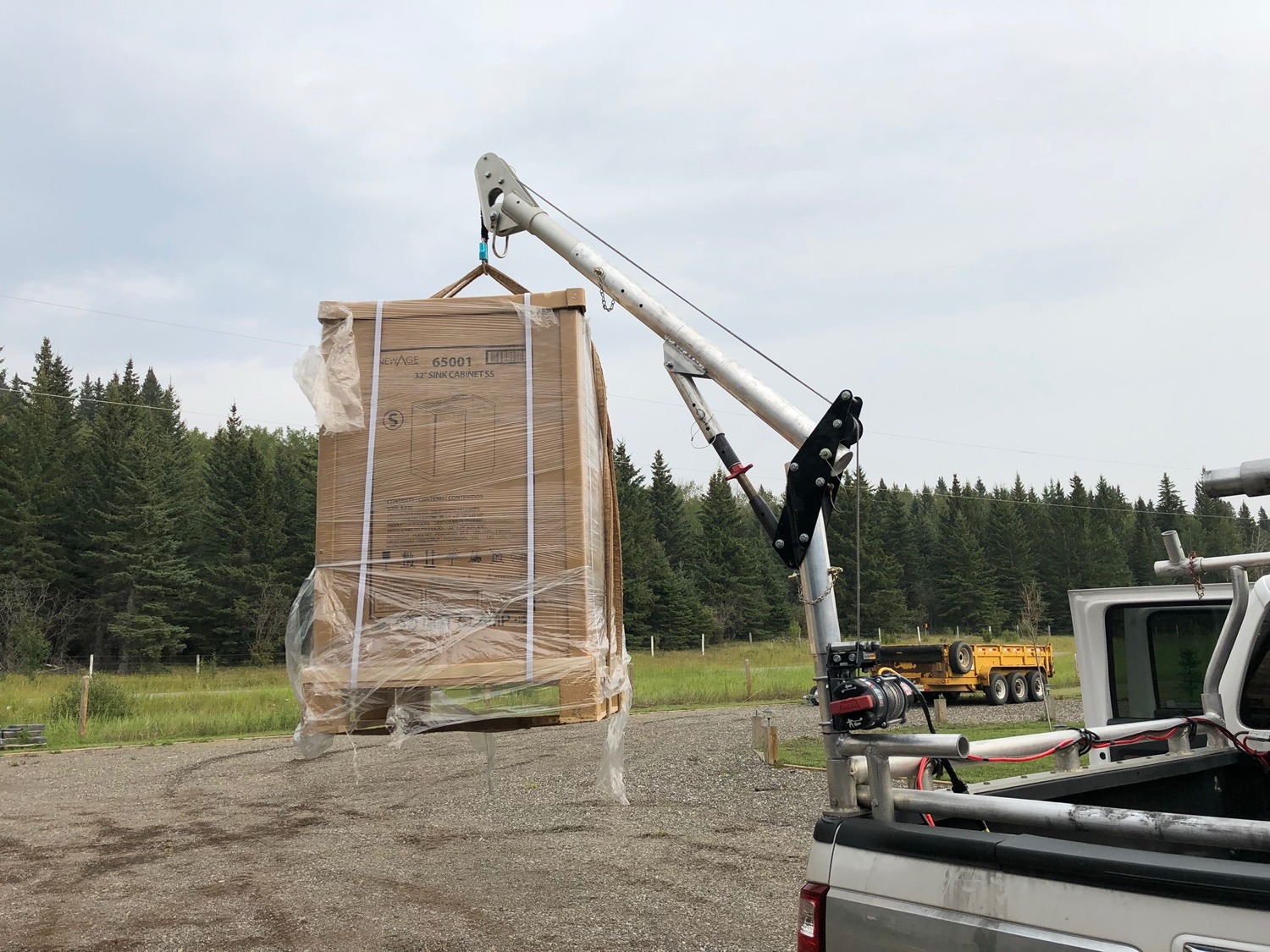

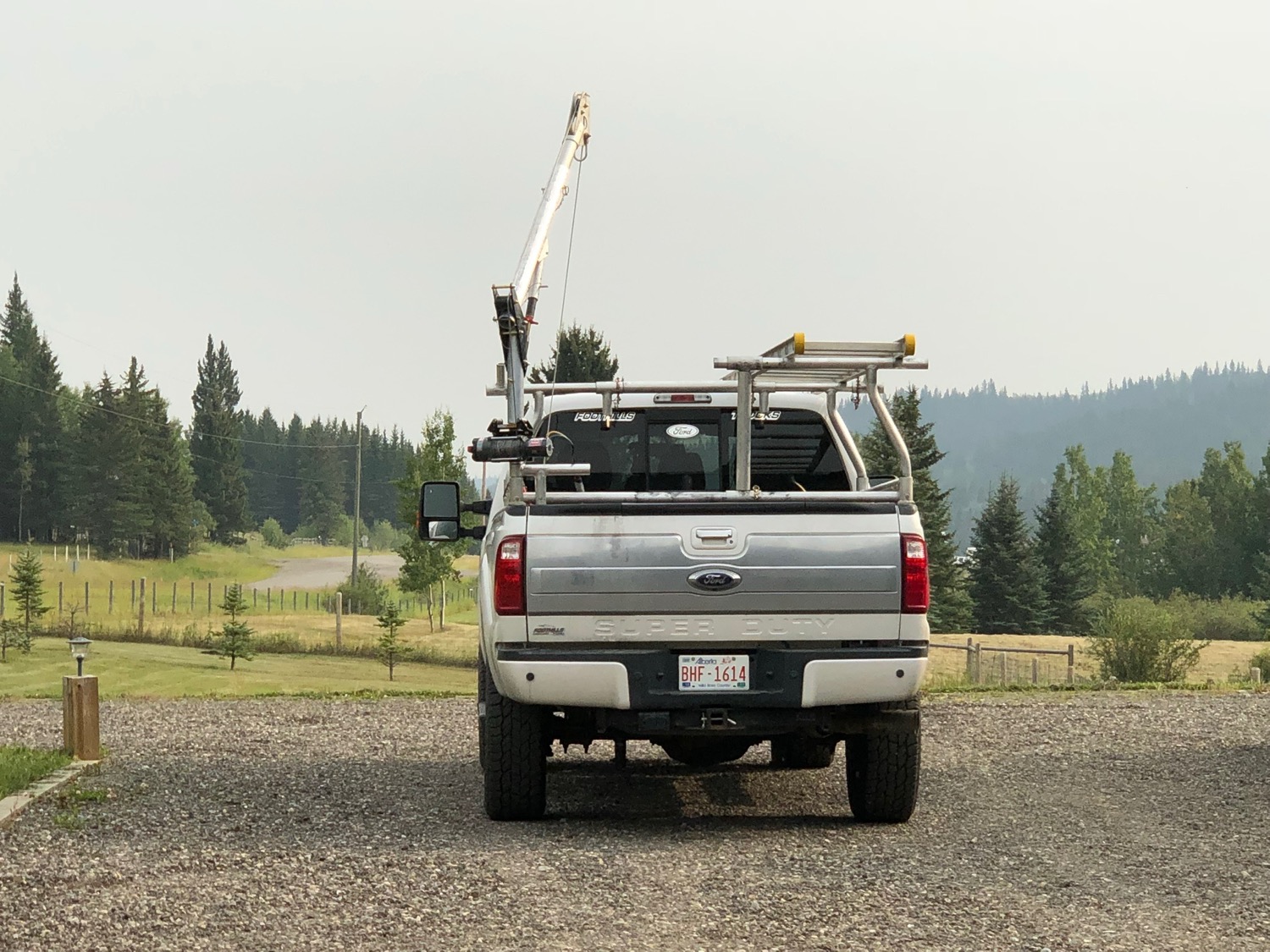

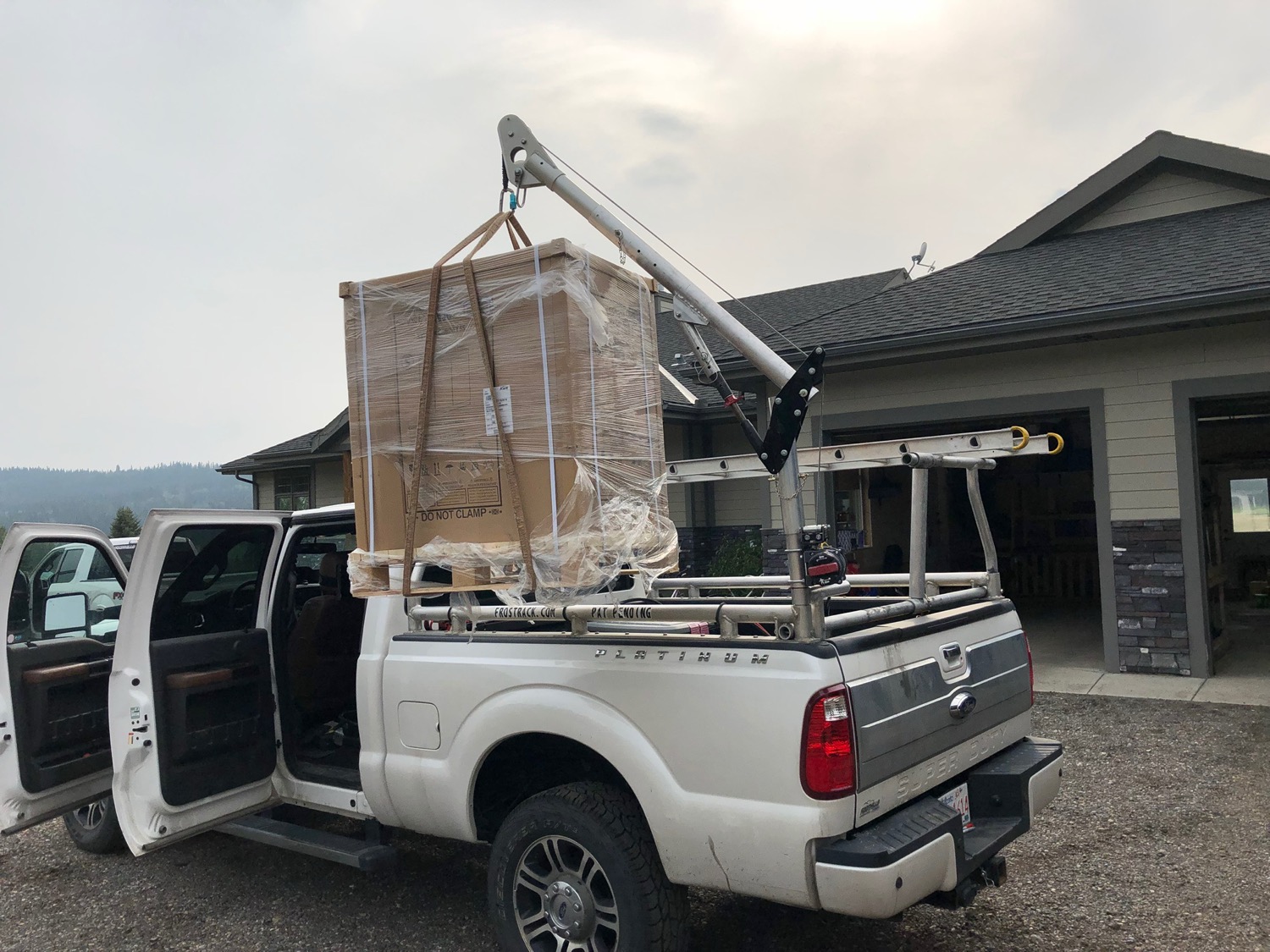

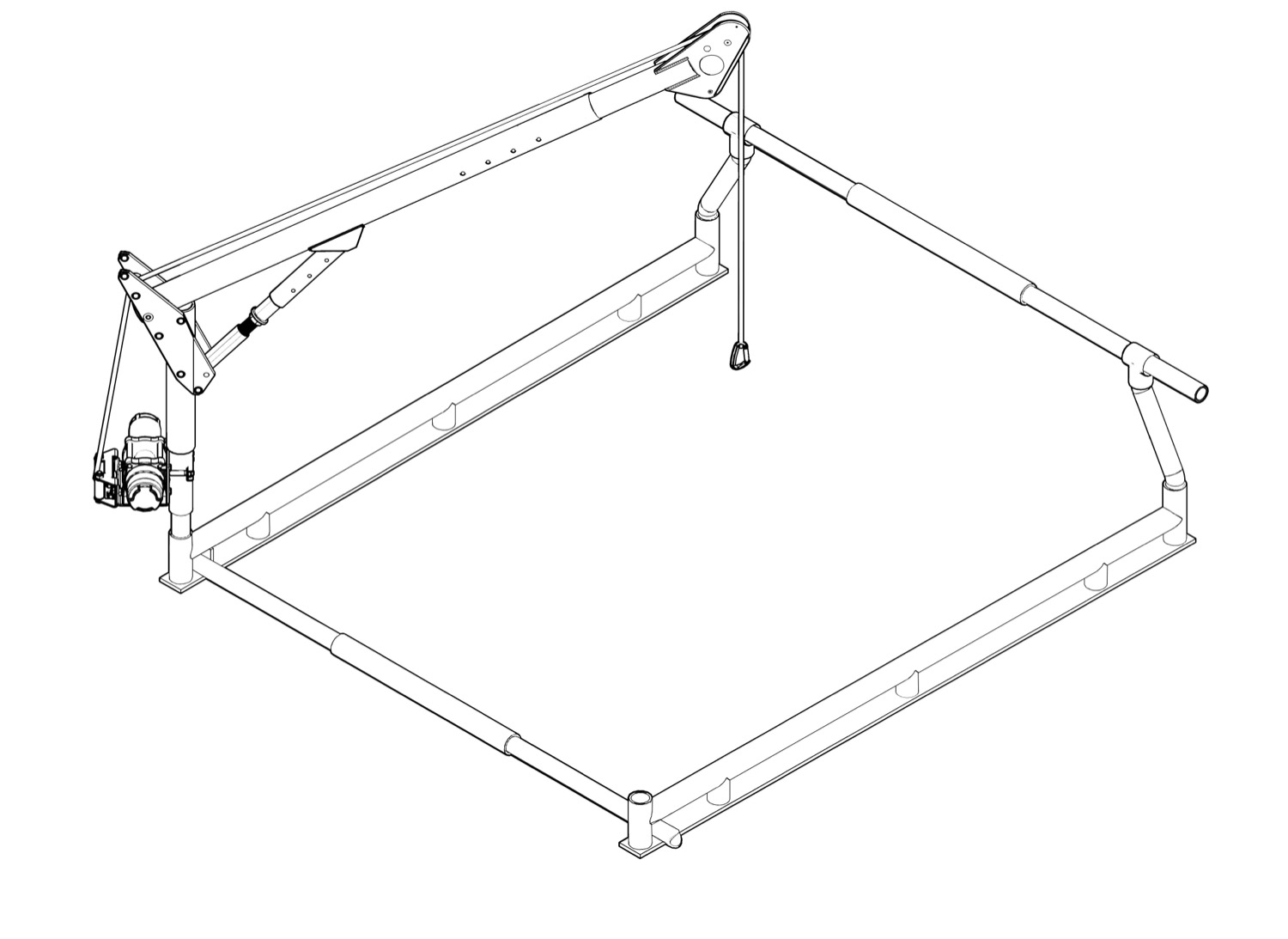

The integrated davit arm and winch lift the load instead of the worker. Field-tested lifting generators, appliances and ladders, with the operator’s hands guiding the load rather than bearing it.
Sled loading happens in exactly the worst conditions: an icy ramp, low light, cold hands, and usually one person with nobody watching. Traction is unreliable right when the consequence of a slip is highest.
Winch-driven loading doesn’t depend on traction, momentum or timing. It is a slow, controlled, repeatable operation a single person can run with both feet on the ground.
Strong, corrosion-free and easy to handle. One person can lift it on and off with no crew, hoist or forklift, and it barely touches payload or fuel economy. When you don’t need it, it comes off fast and stores flat.
It clamps to the bed rails with turnbuckles — no bolts, no drilling, no holes in your truck. Telescoping in all three dimensions, it fits virtually any pickup and pops off in minutes on a few quick pins.
Buy a new truck — even a different make or bed size — and one person moves the rack right over. No re-drilling, no re-fitting, no second purchase, and no re-training on a new loading procedure.
Frostrack enters the market as a premium aluminum headache rack — then expands into a modular platform for recreation, work, hauling, launching, loading, camping and storage.
The rack is not a single-use product. Each attachment is a further transaction with a customer already in the system, and the platform is not limited to the categories built so far.

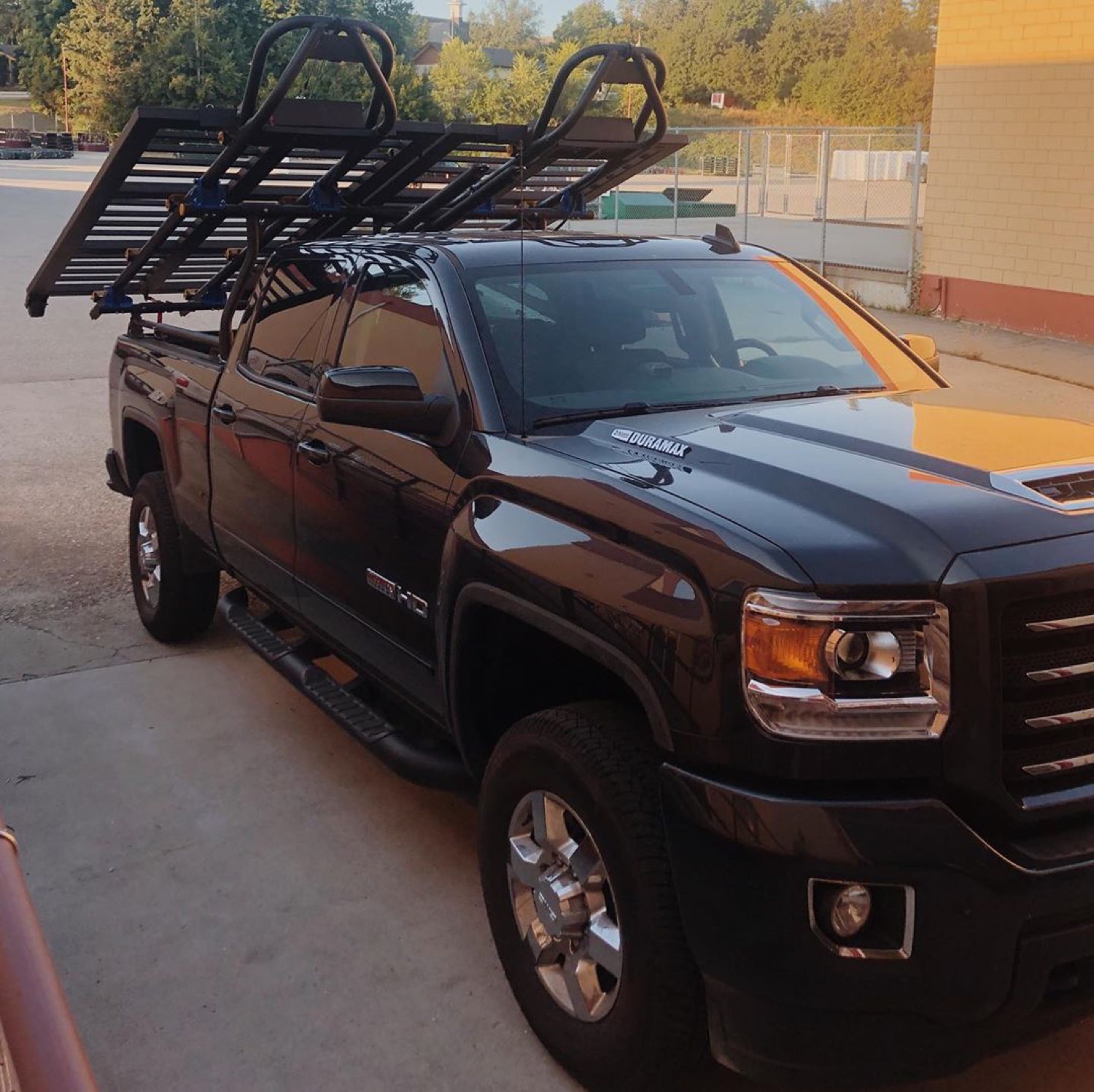

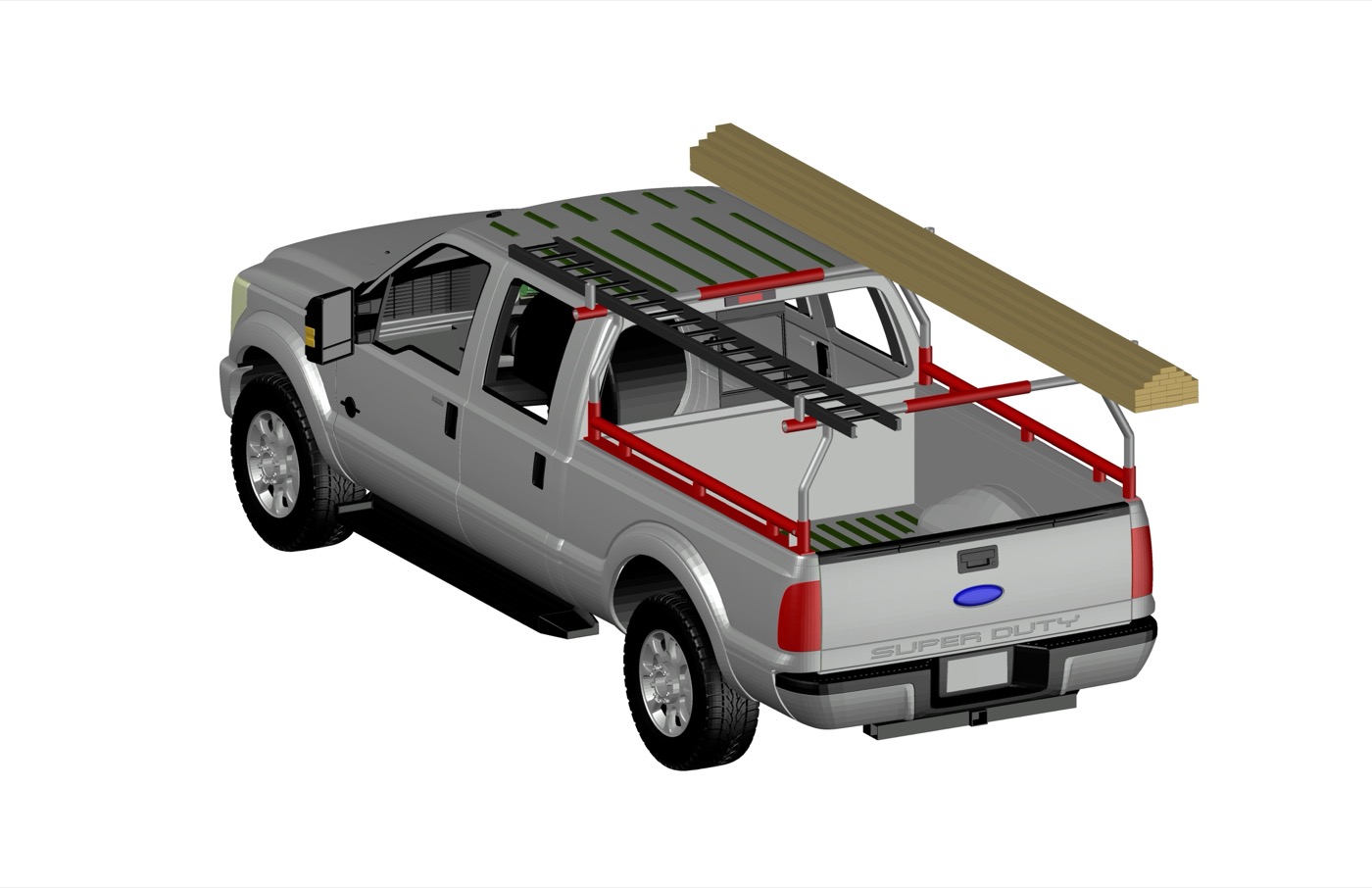

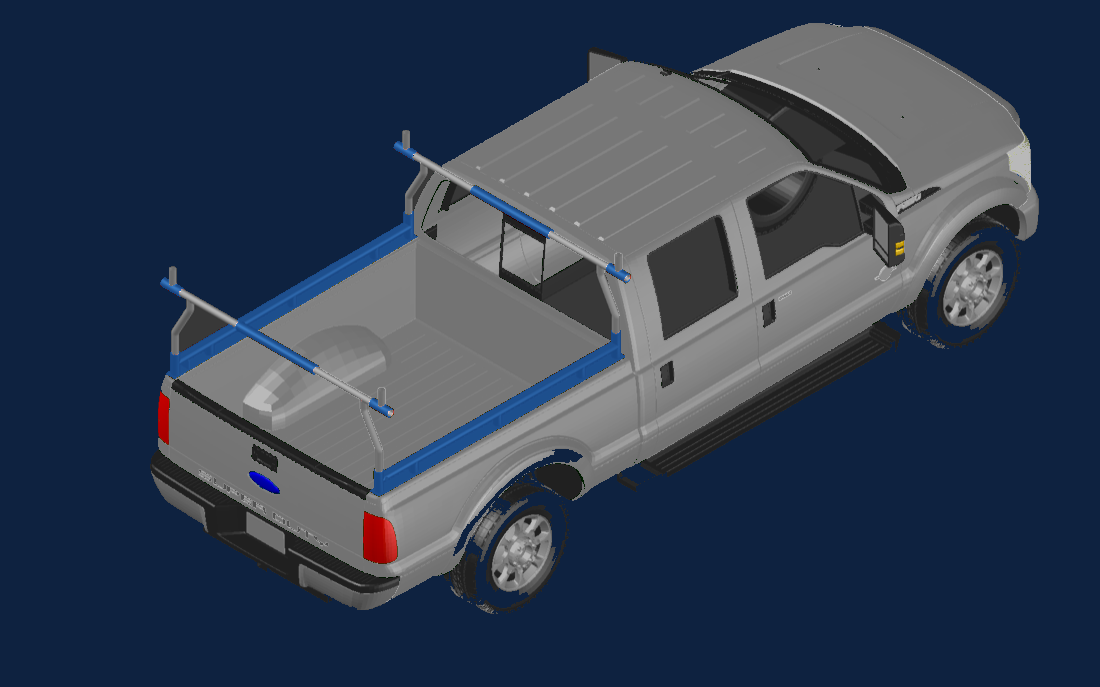

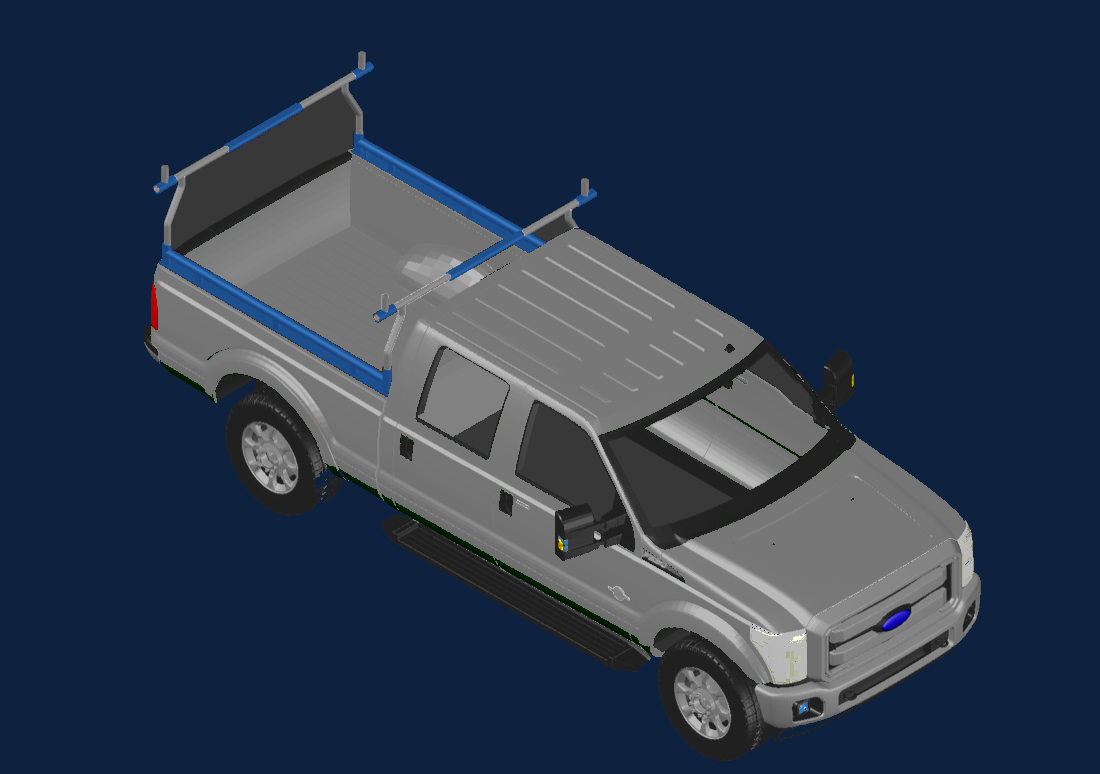

The base Frostrack sells as a high-end rack to everyday truck owners, contractors, outdoor and recreational buyers — before a single attachment is added.
The same telescoping rails that hold the load up high become the ramp that loads it. No separate ramps, no heavy lifting.
The side rails clamp on with turnbuckles — no bolts, no drilling. Telescoping in all three axes, it fits virtually any truck and comes off in minutes to move to your next one. The bed stays open.

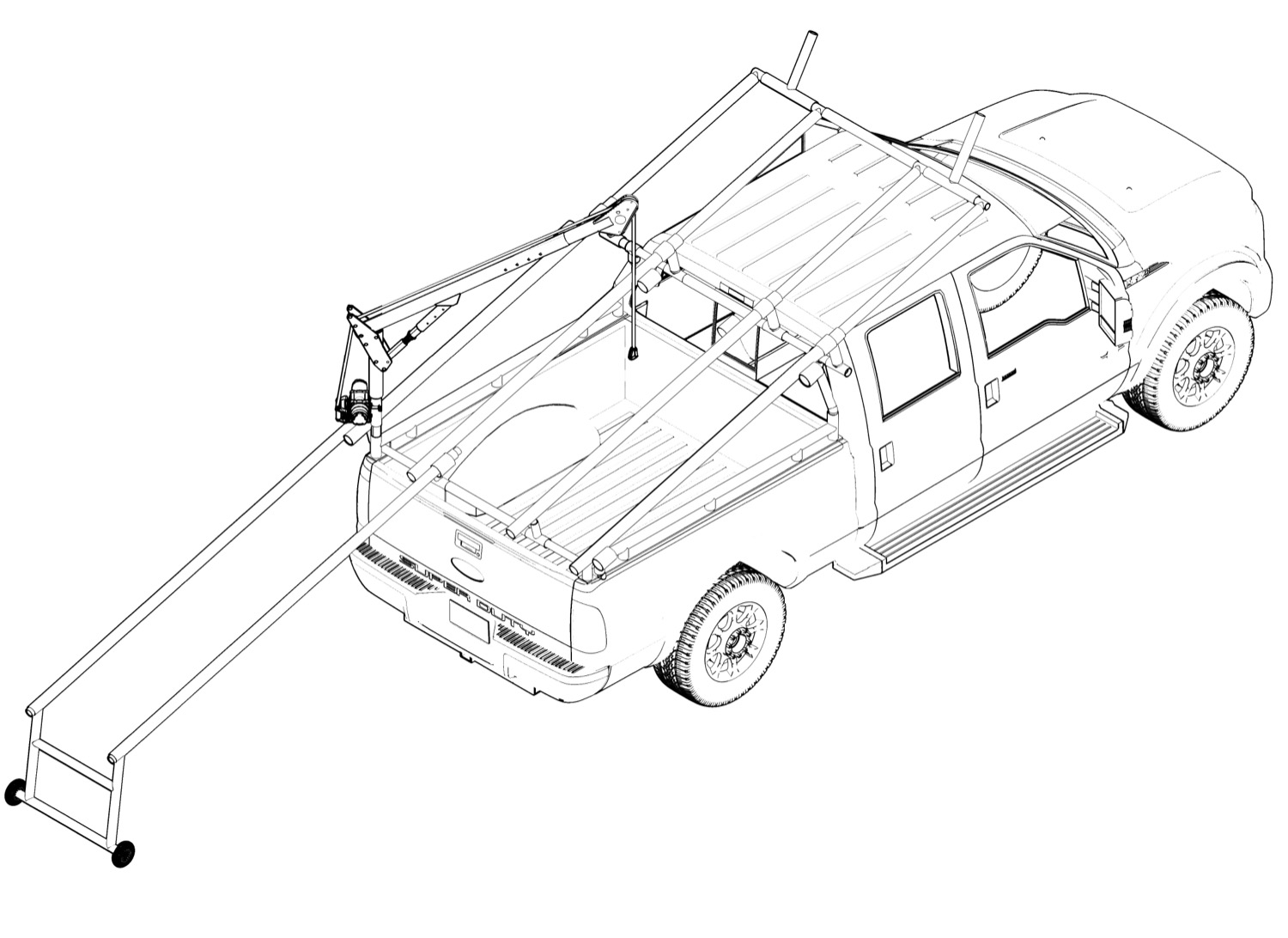

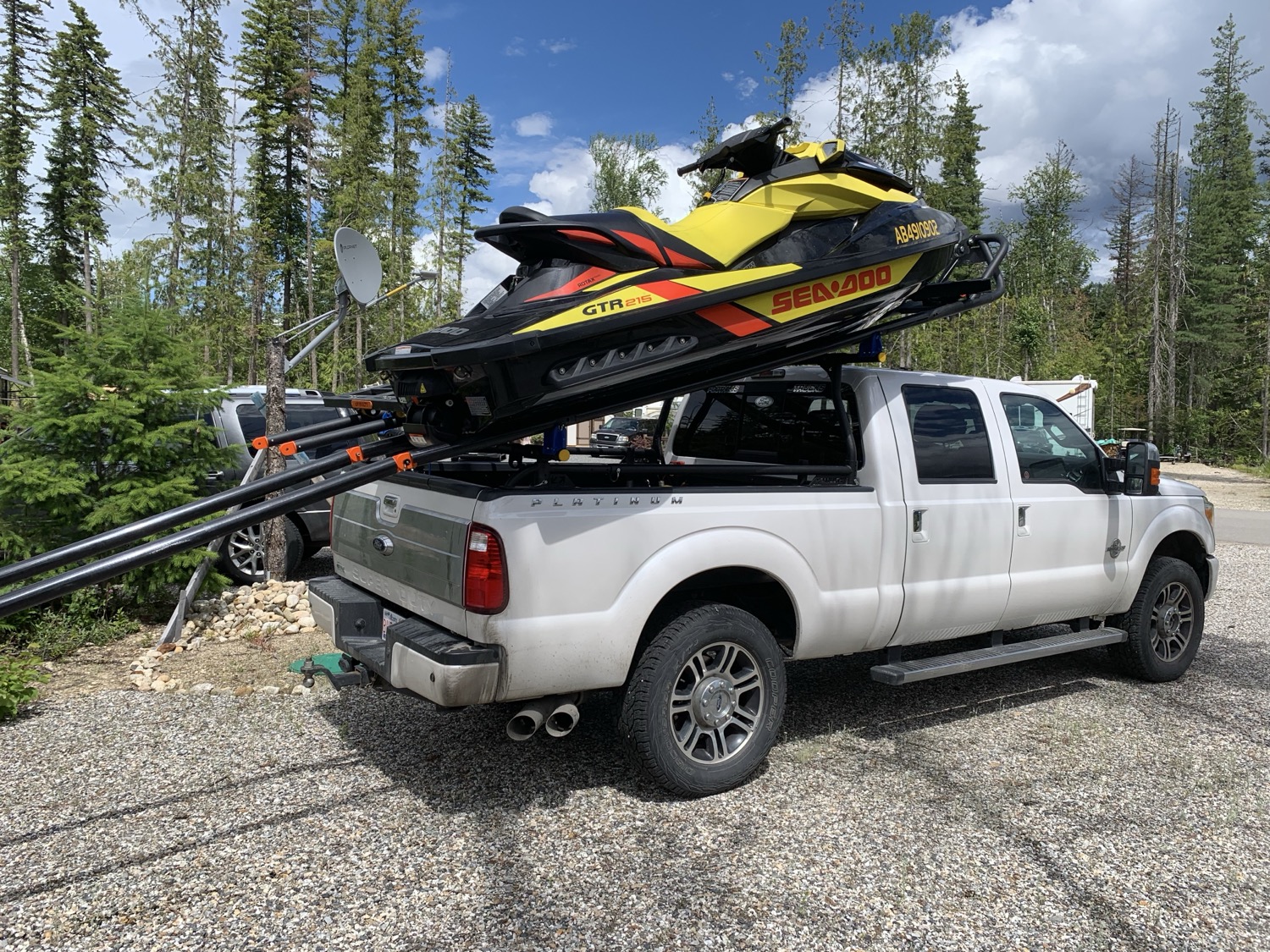

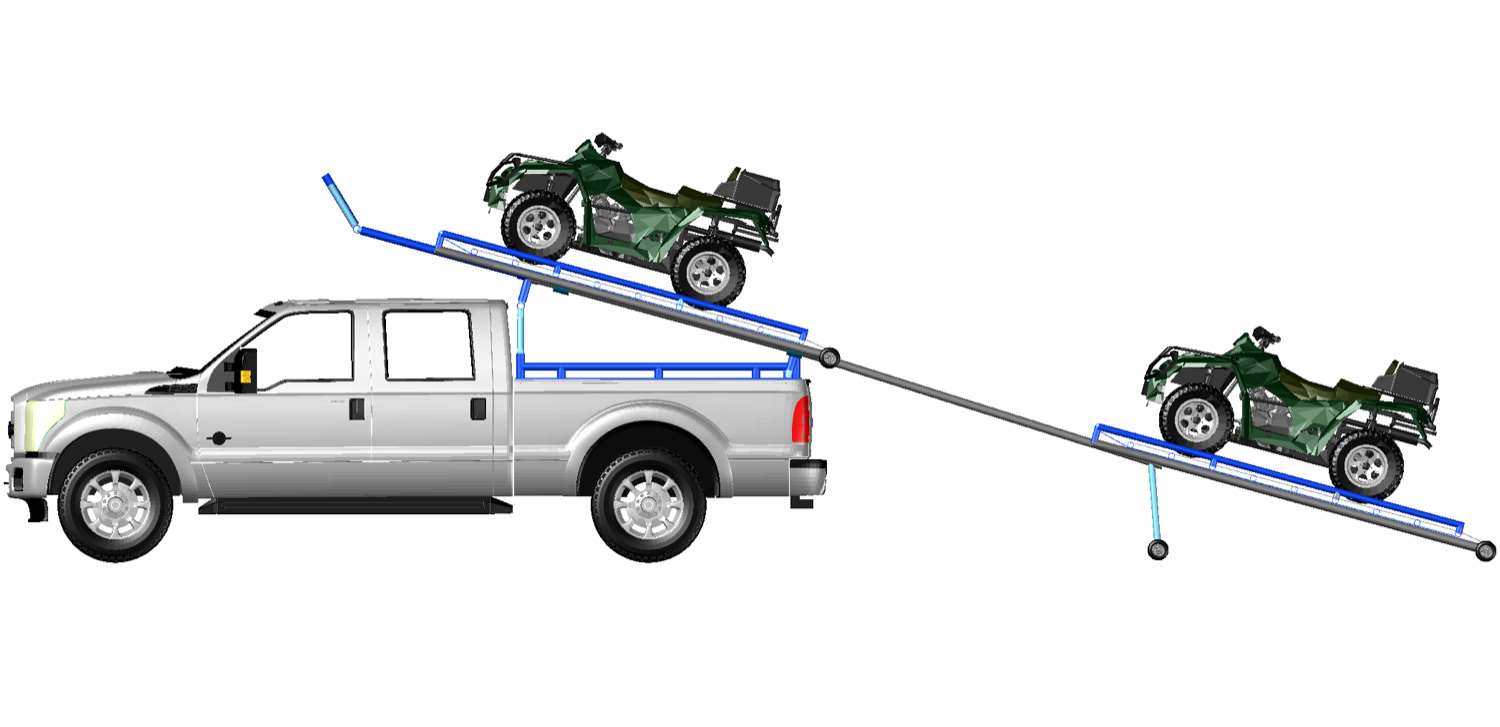

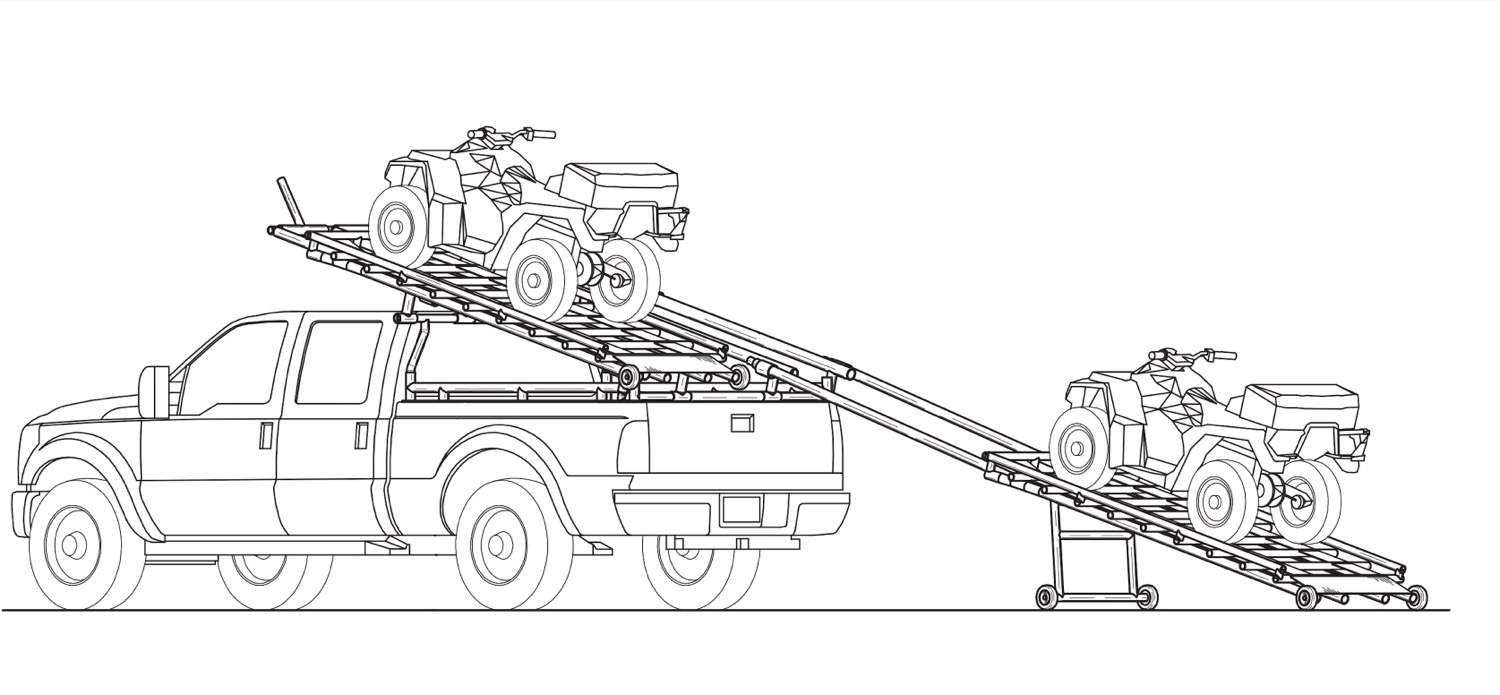

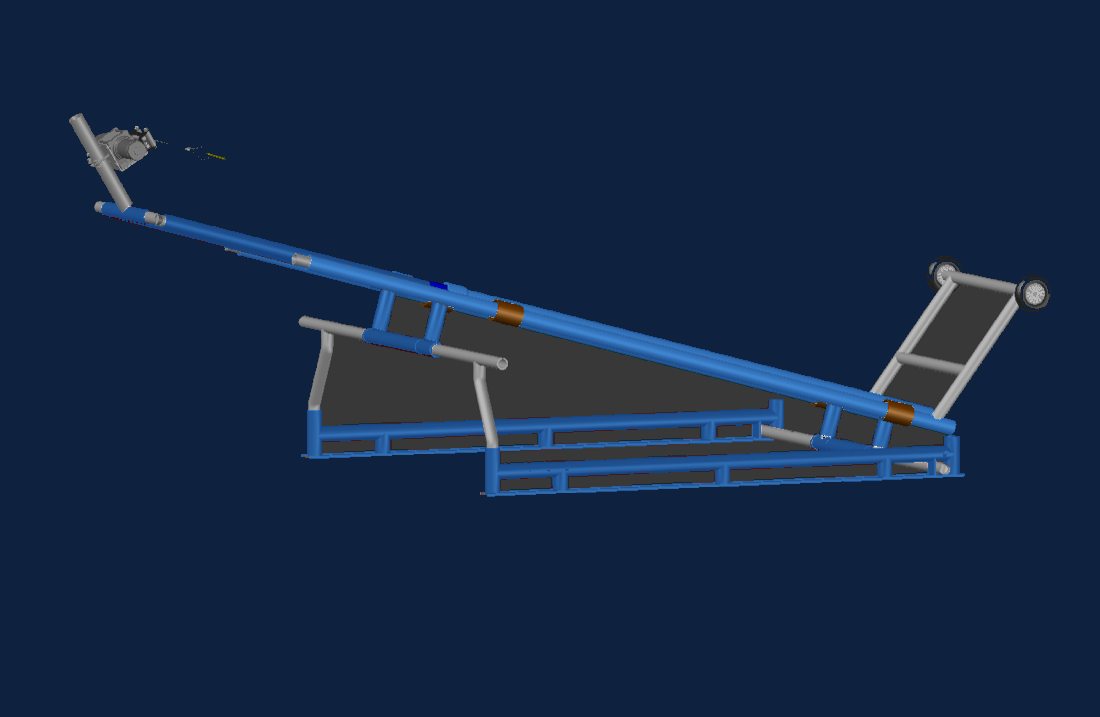

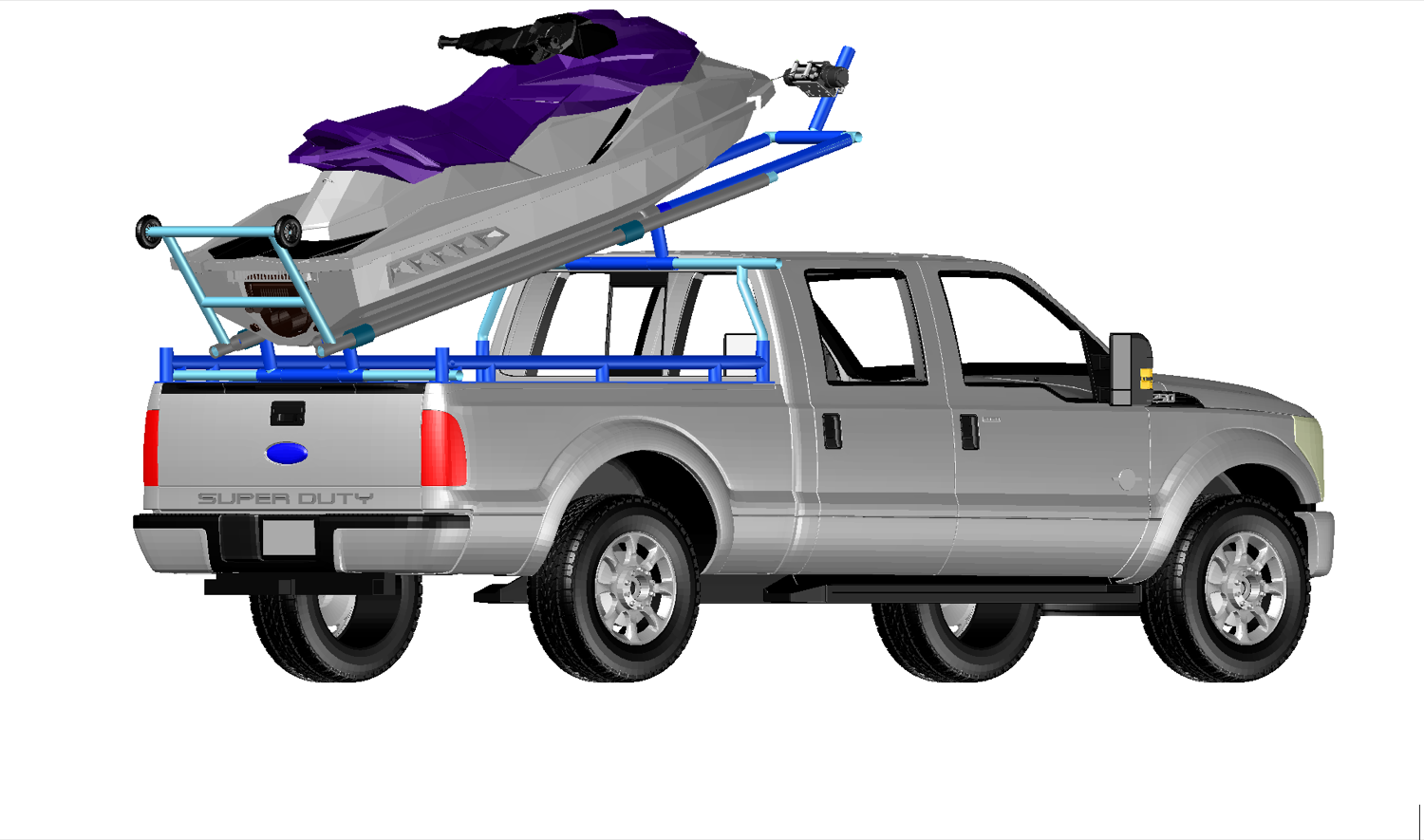

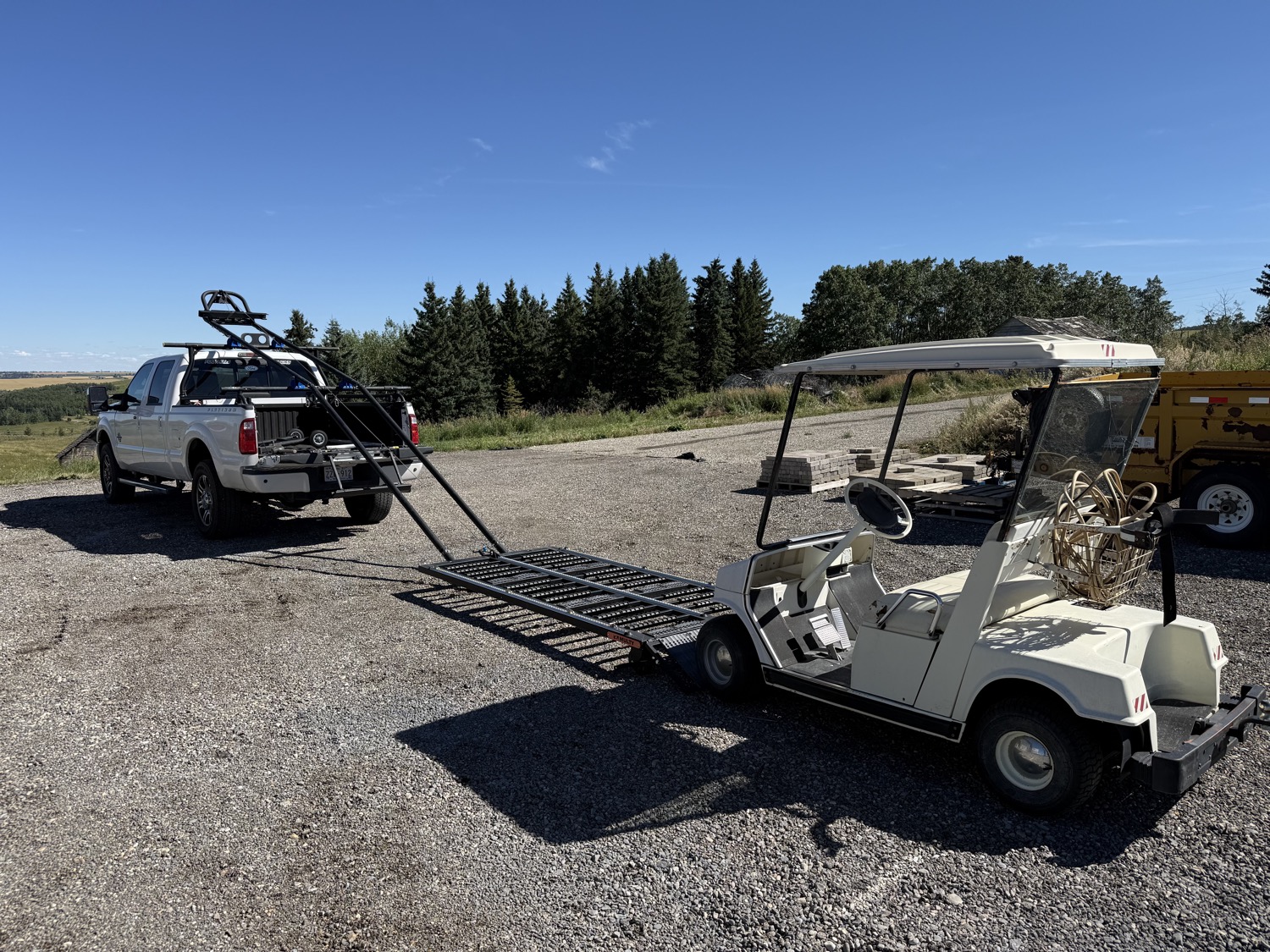

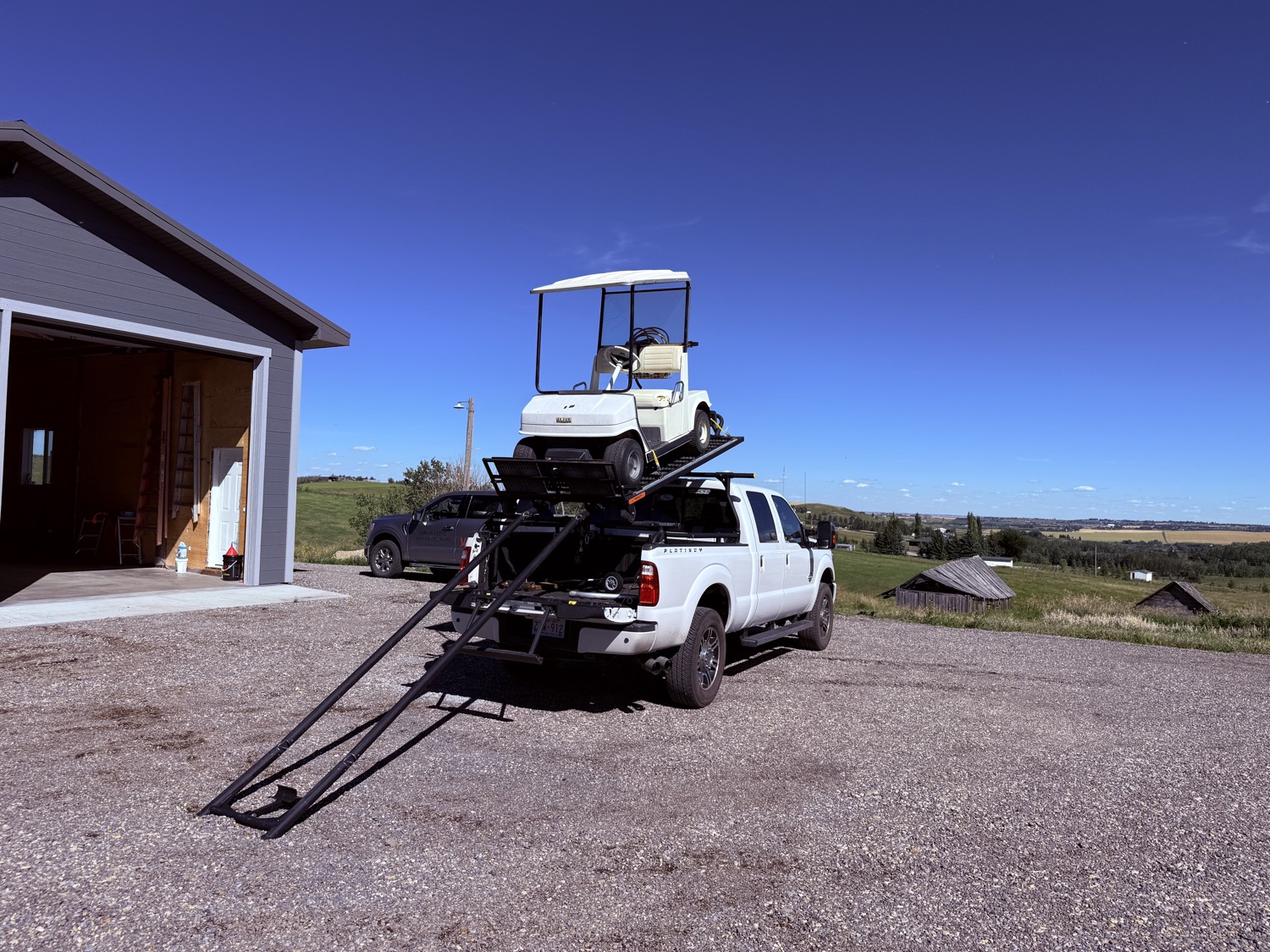

The upper rails telescope rearward and pivot down to the ground, turning the rack itself into an integrated loading ramp.

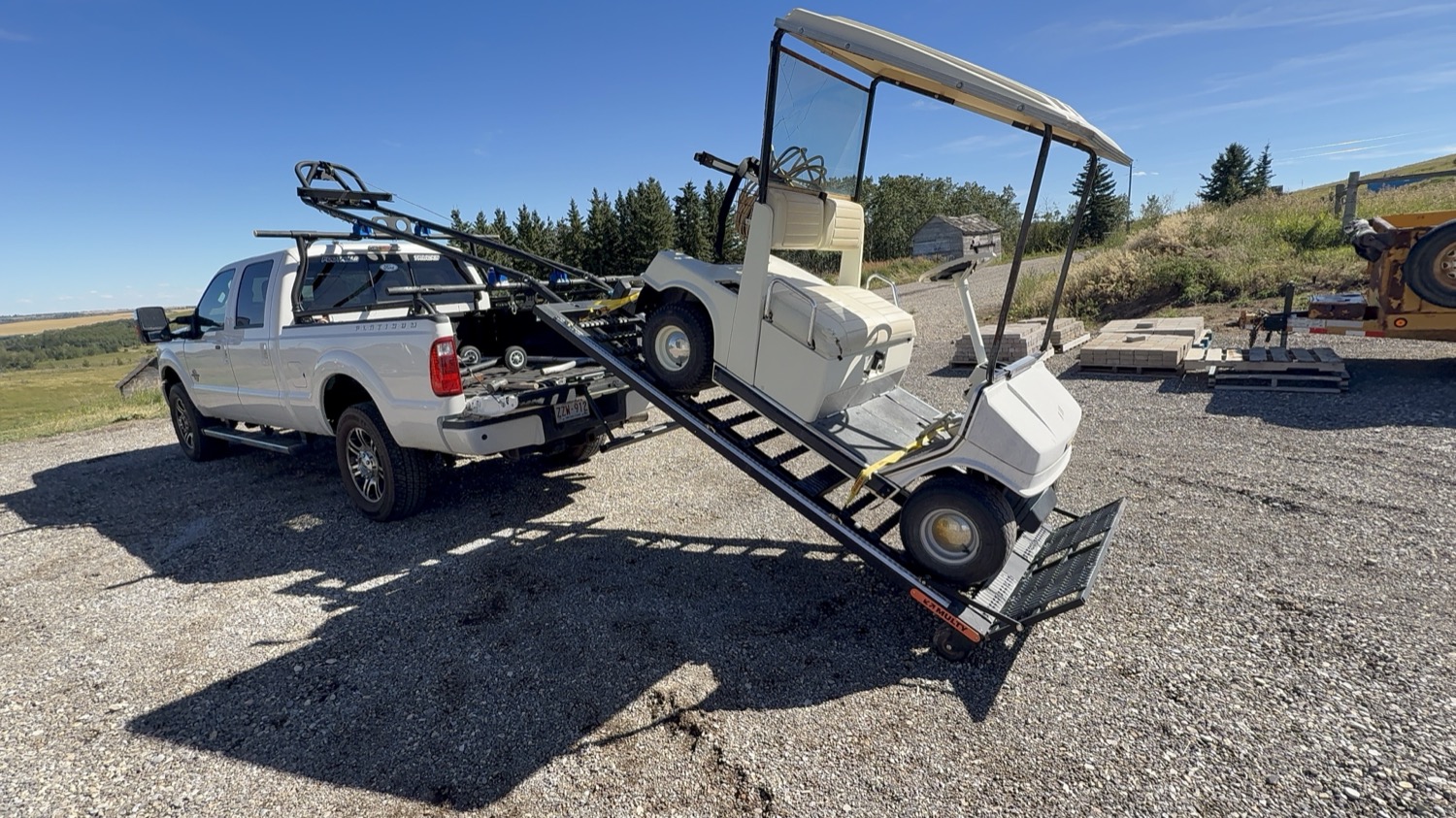

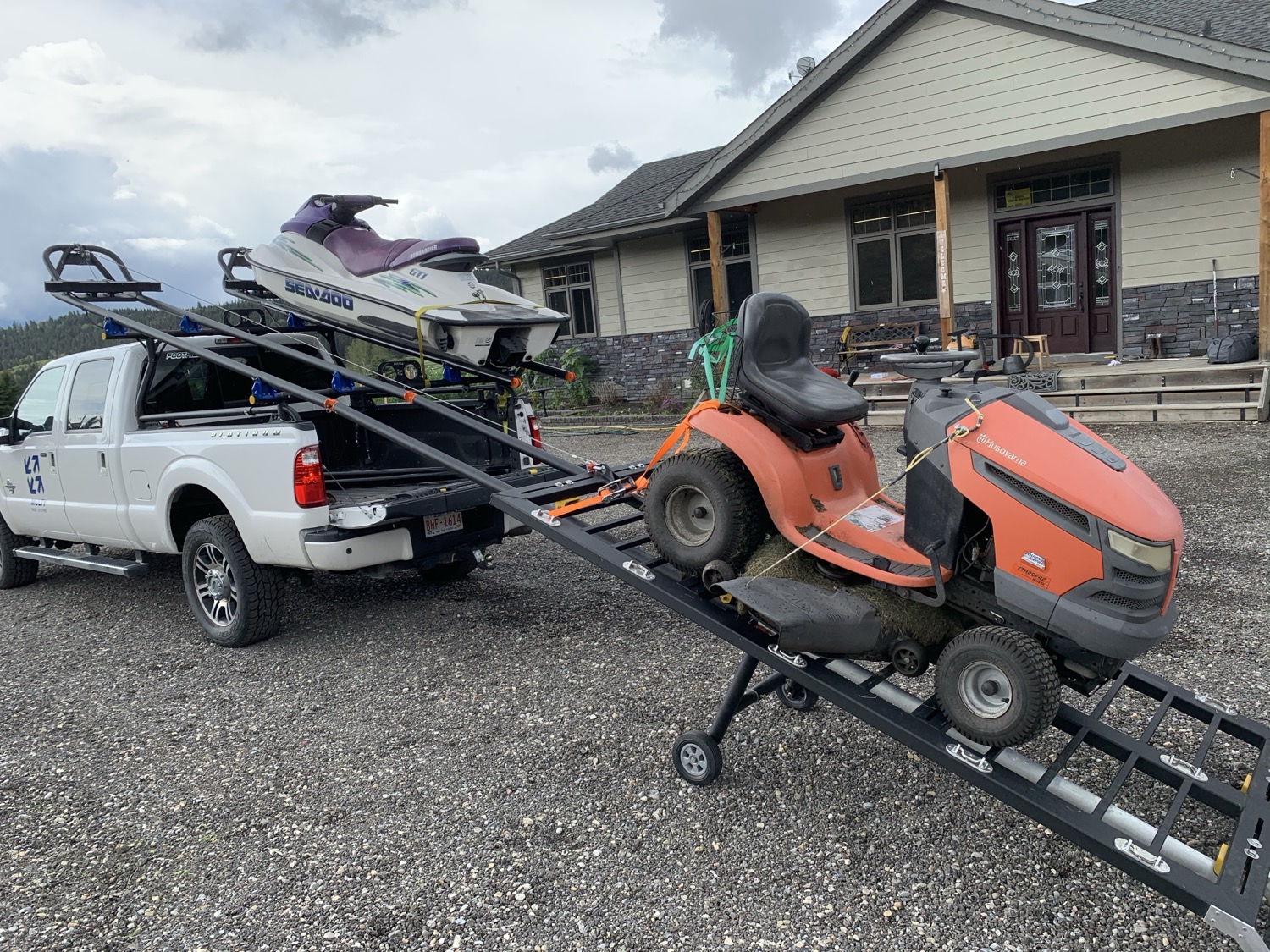

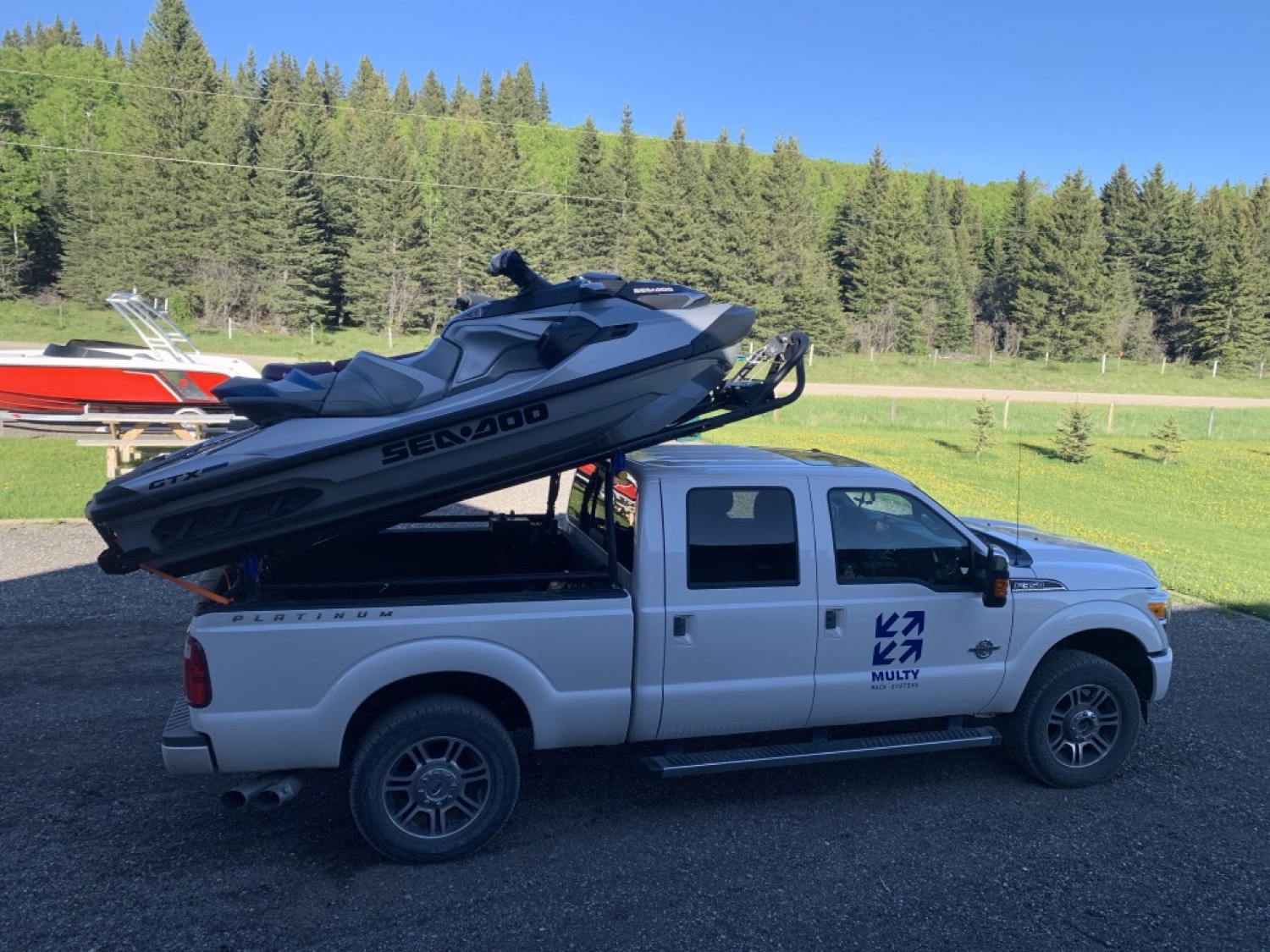

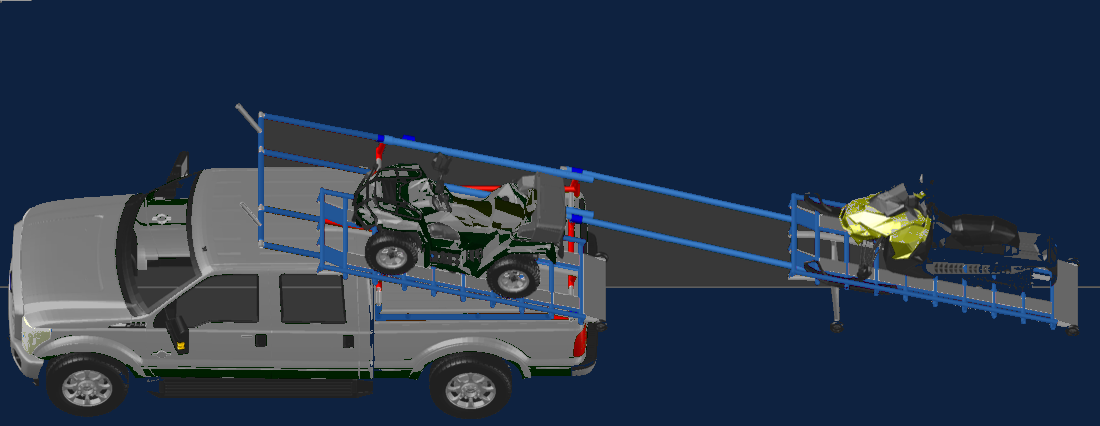

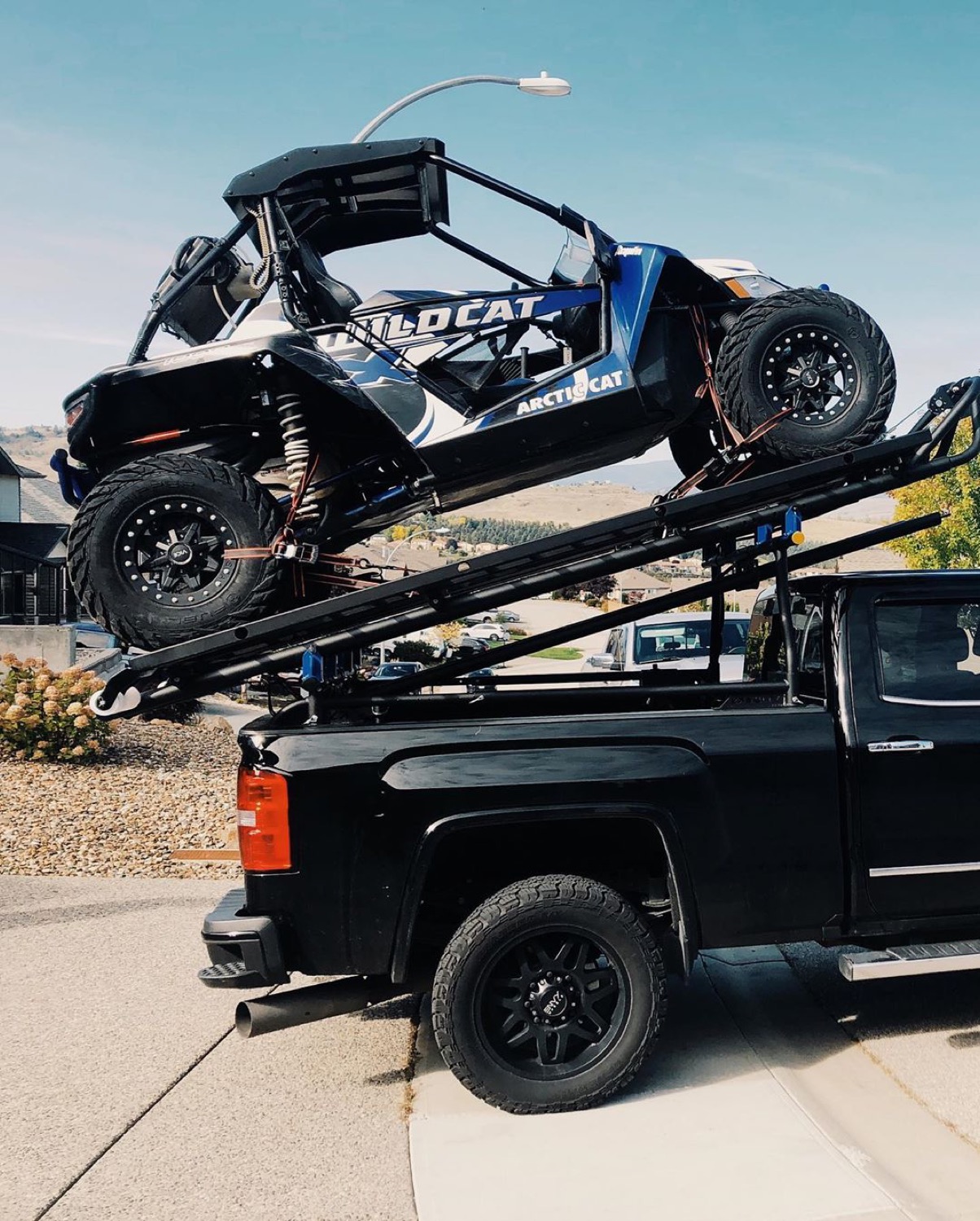

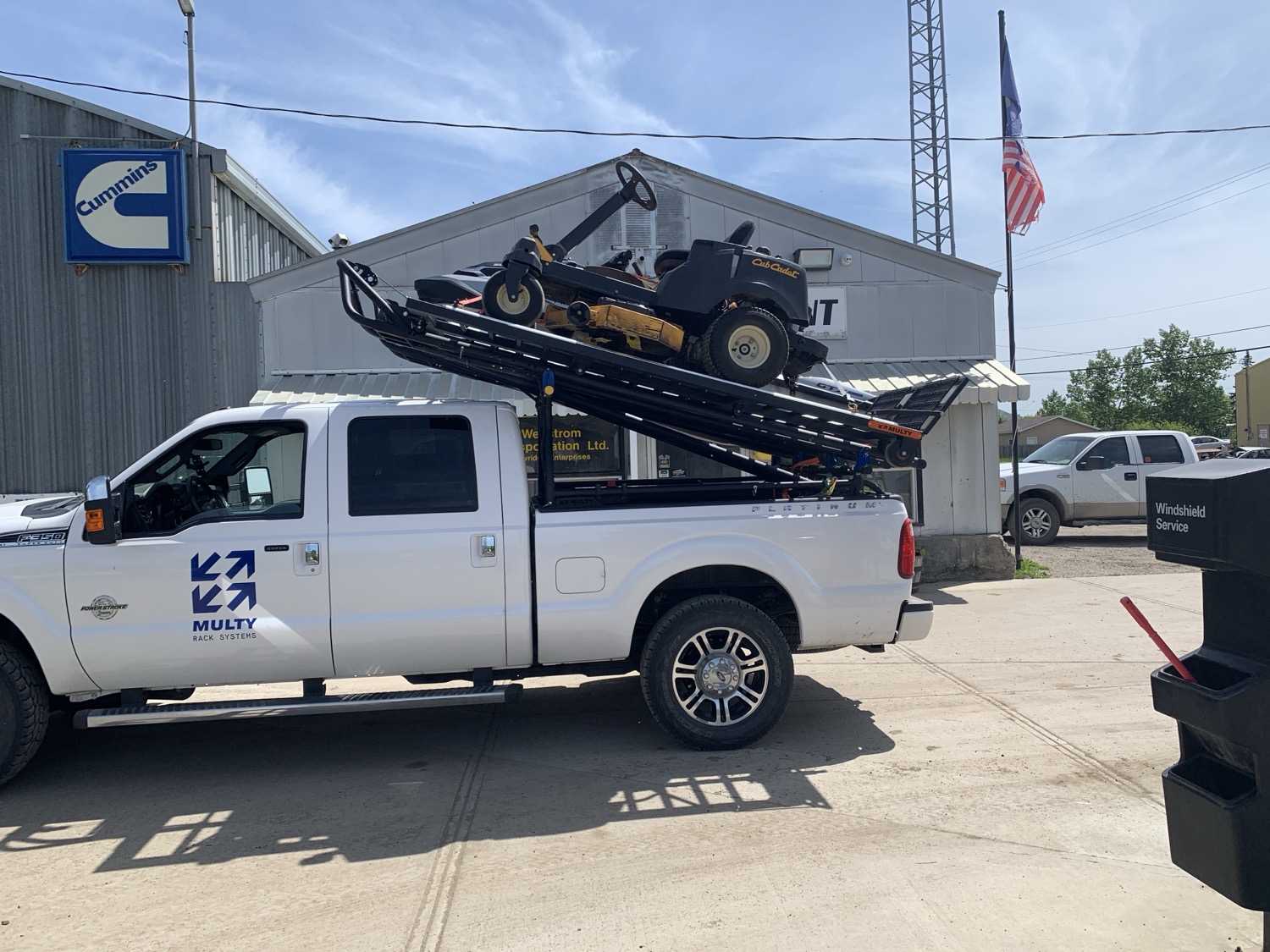

The machine rolls up on a wheeled cradle under winch power — no sketchy ramps, no lifting. Quick-pins and turnbuckles lock it solid.

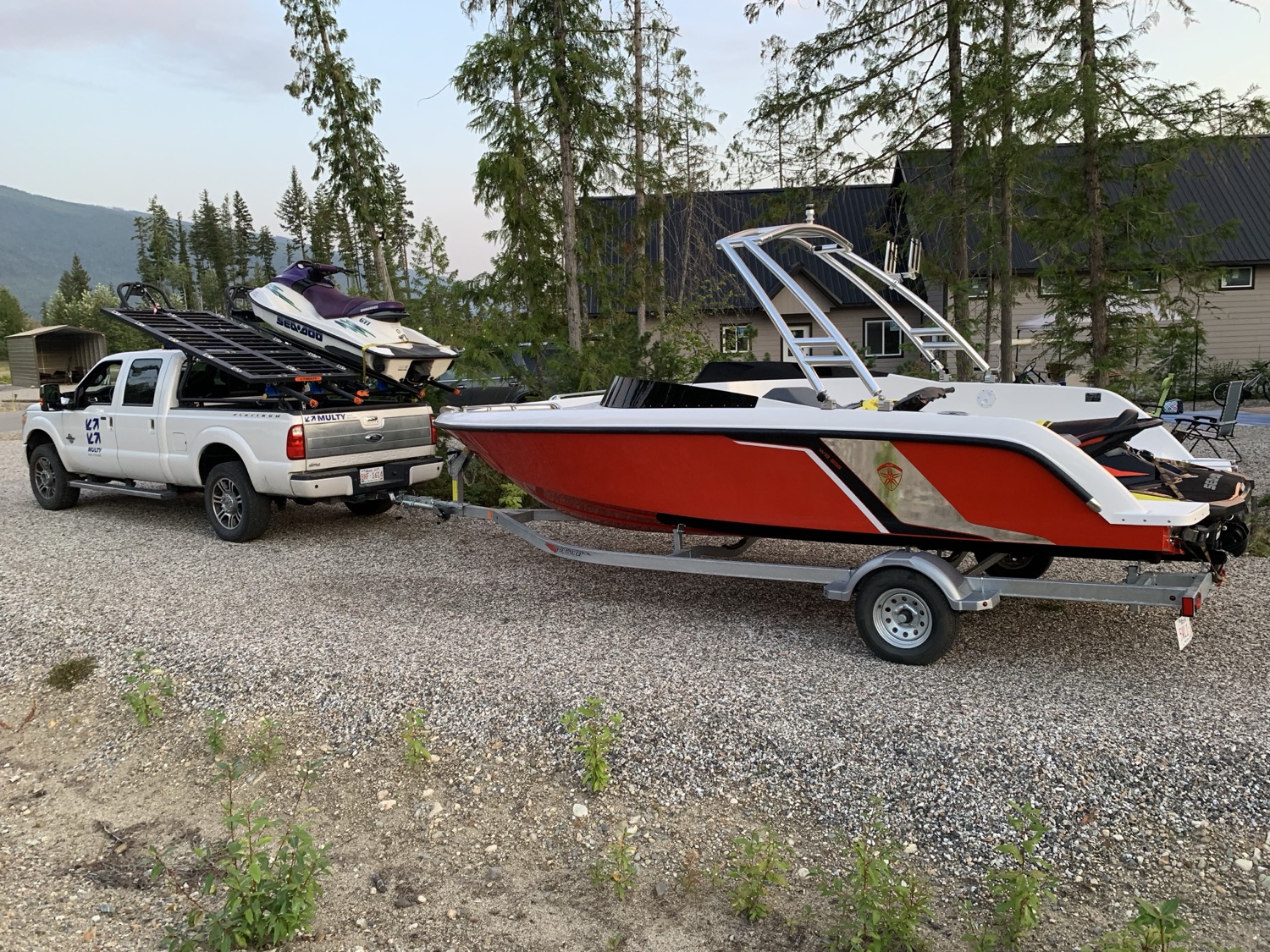

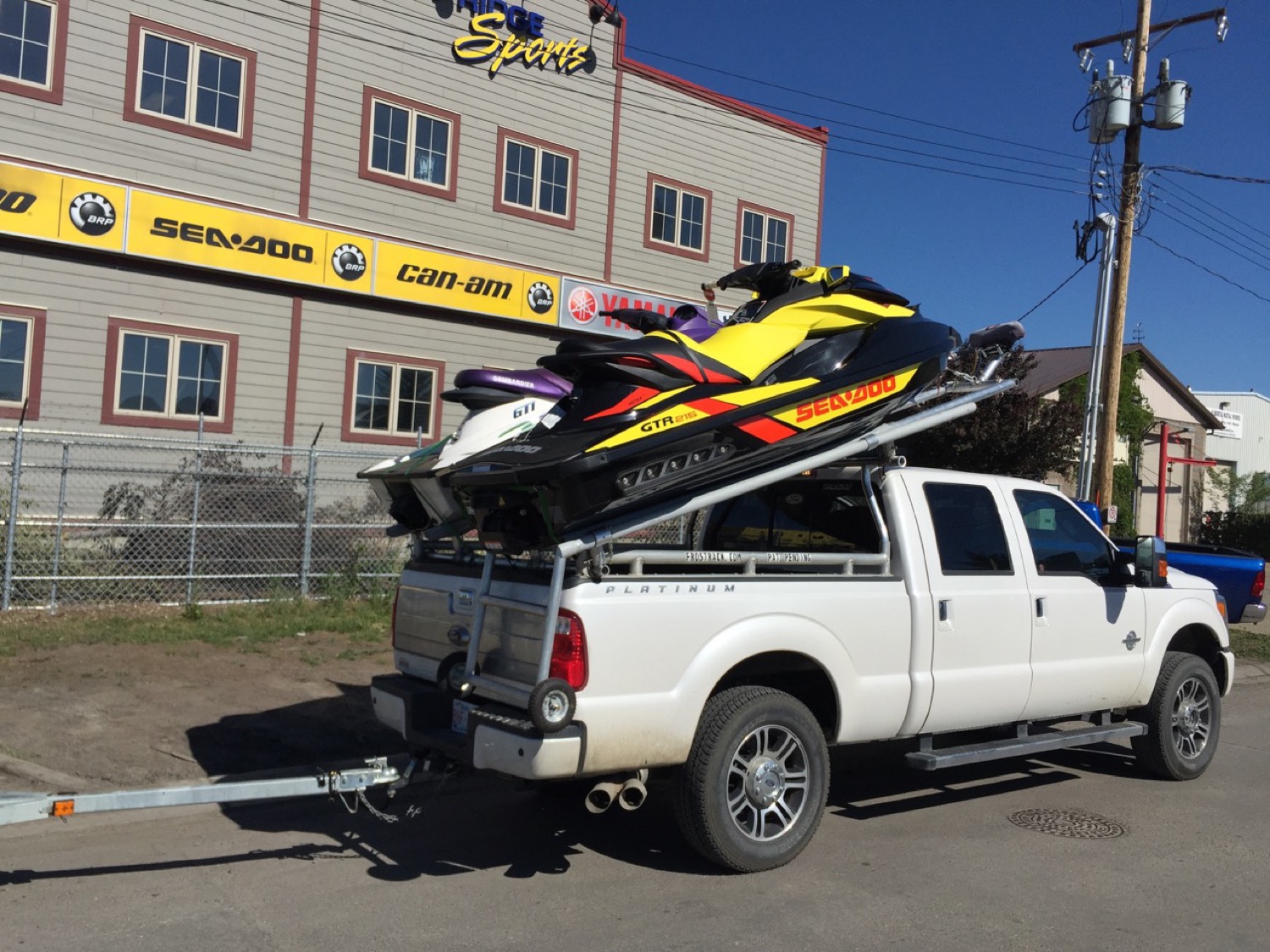

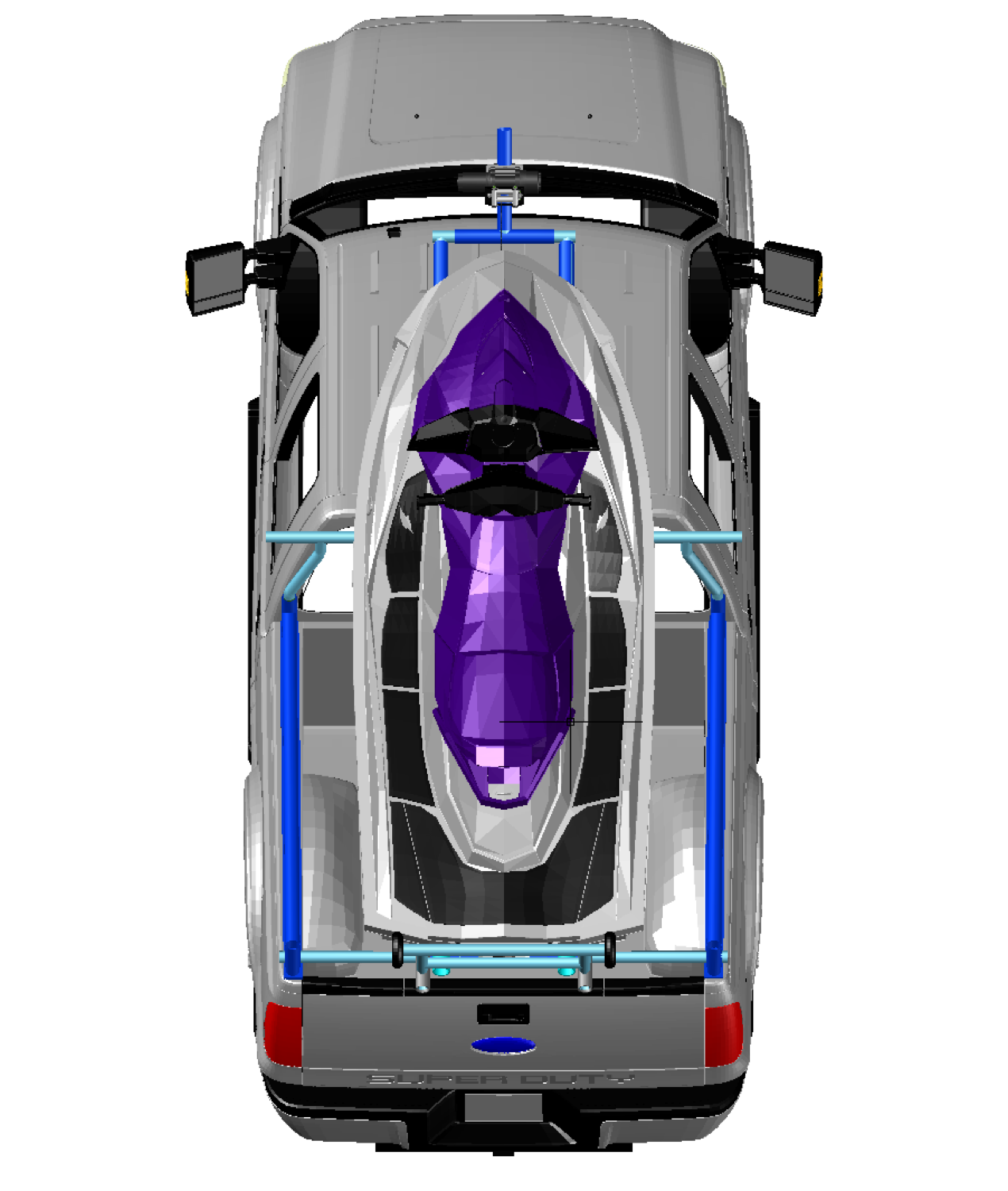

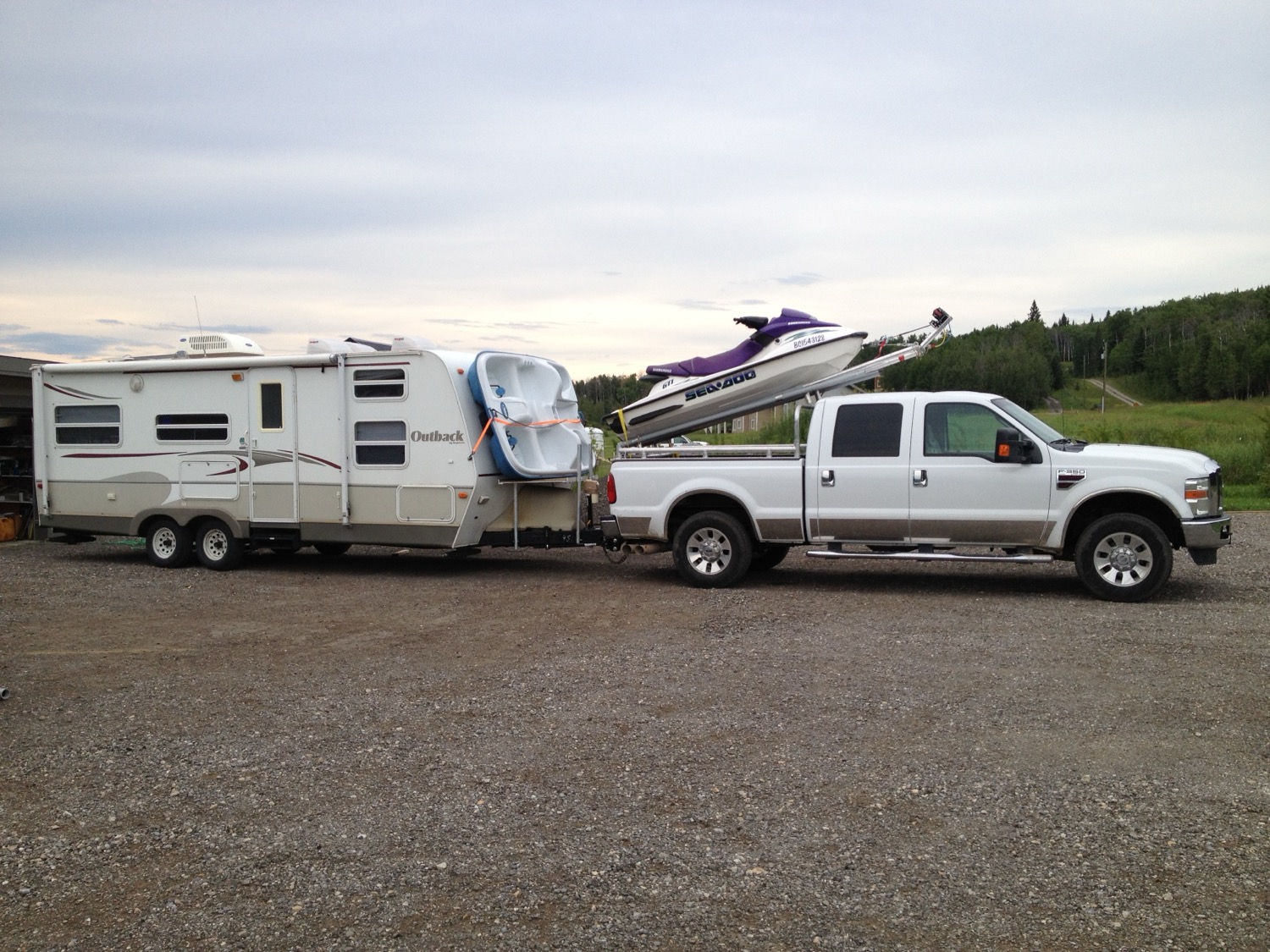

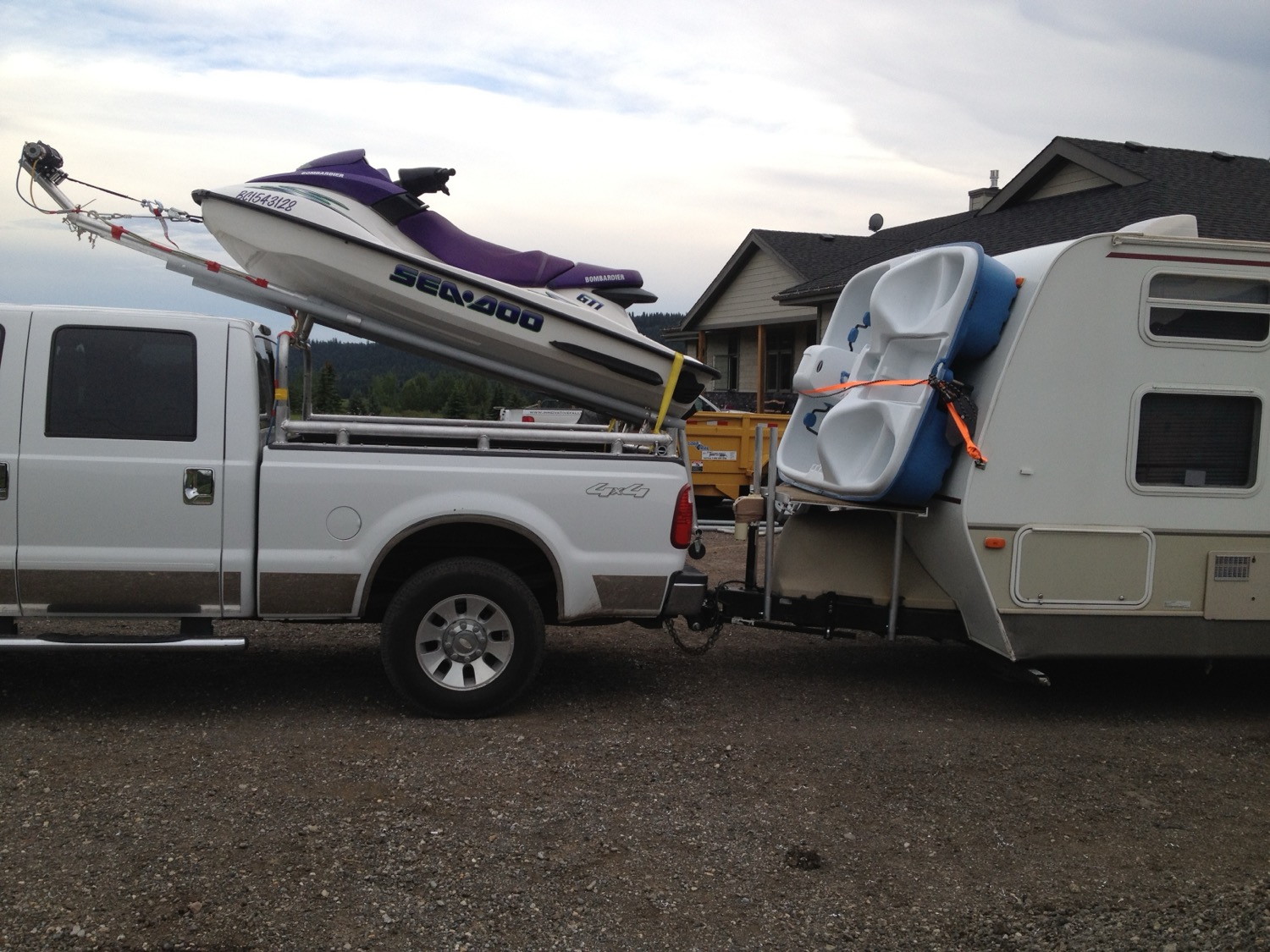

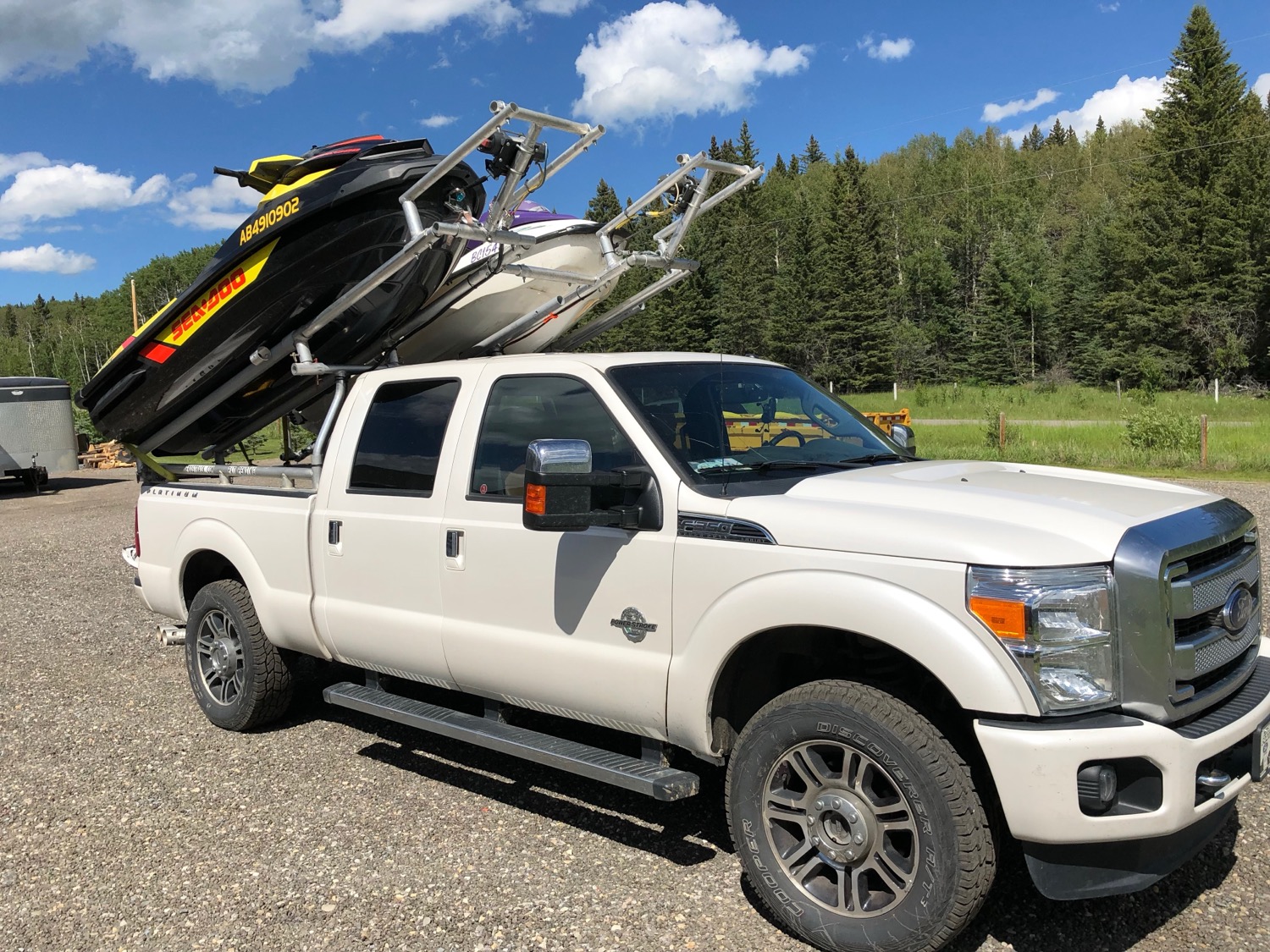

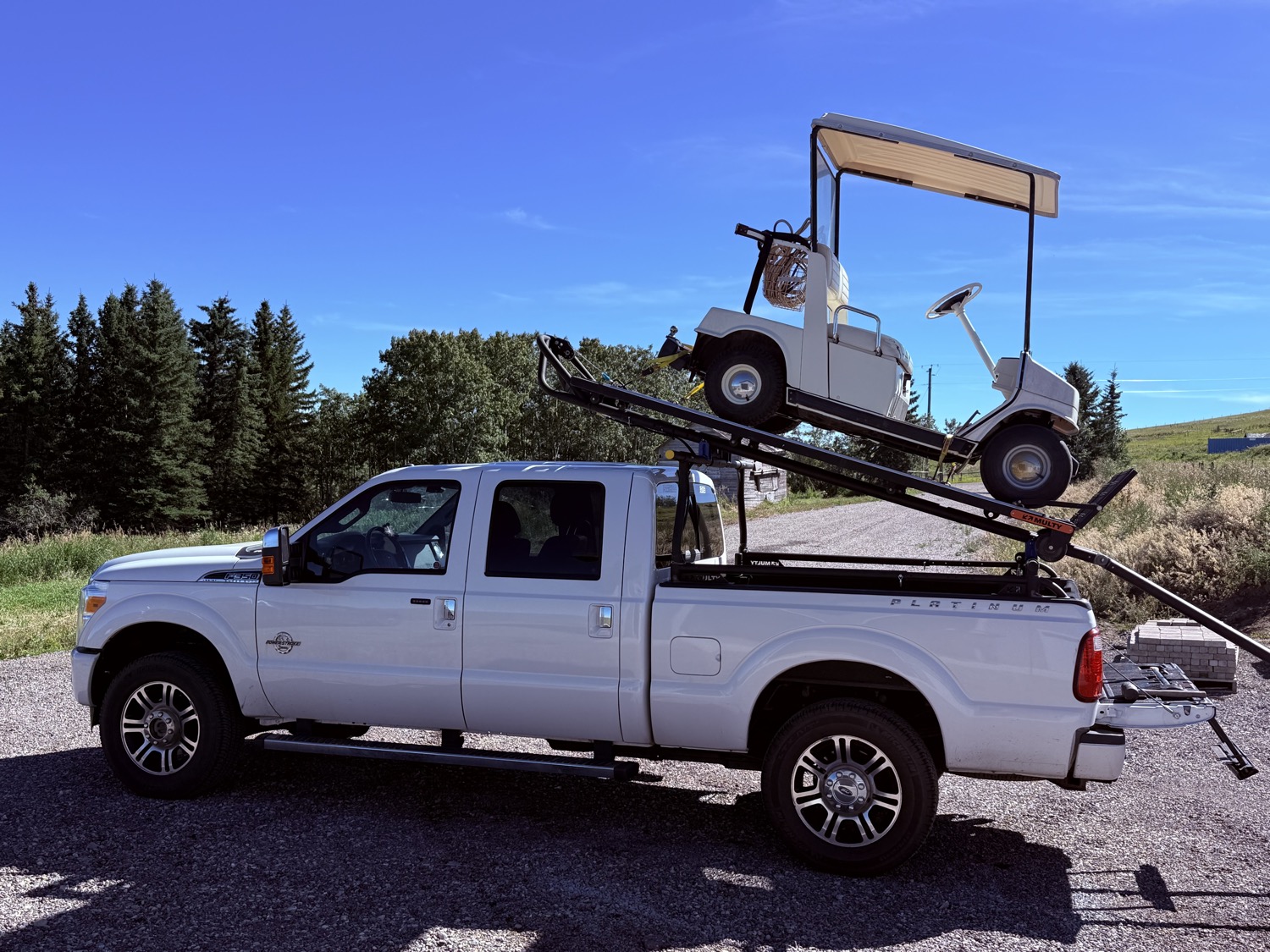

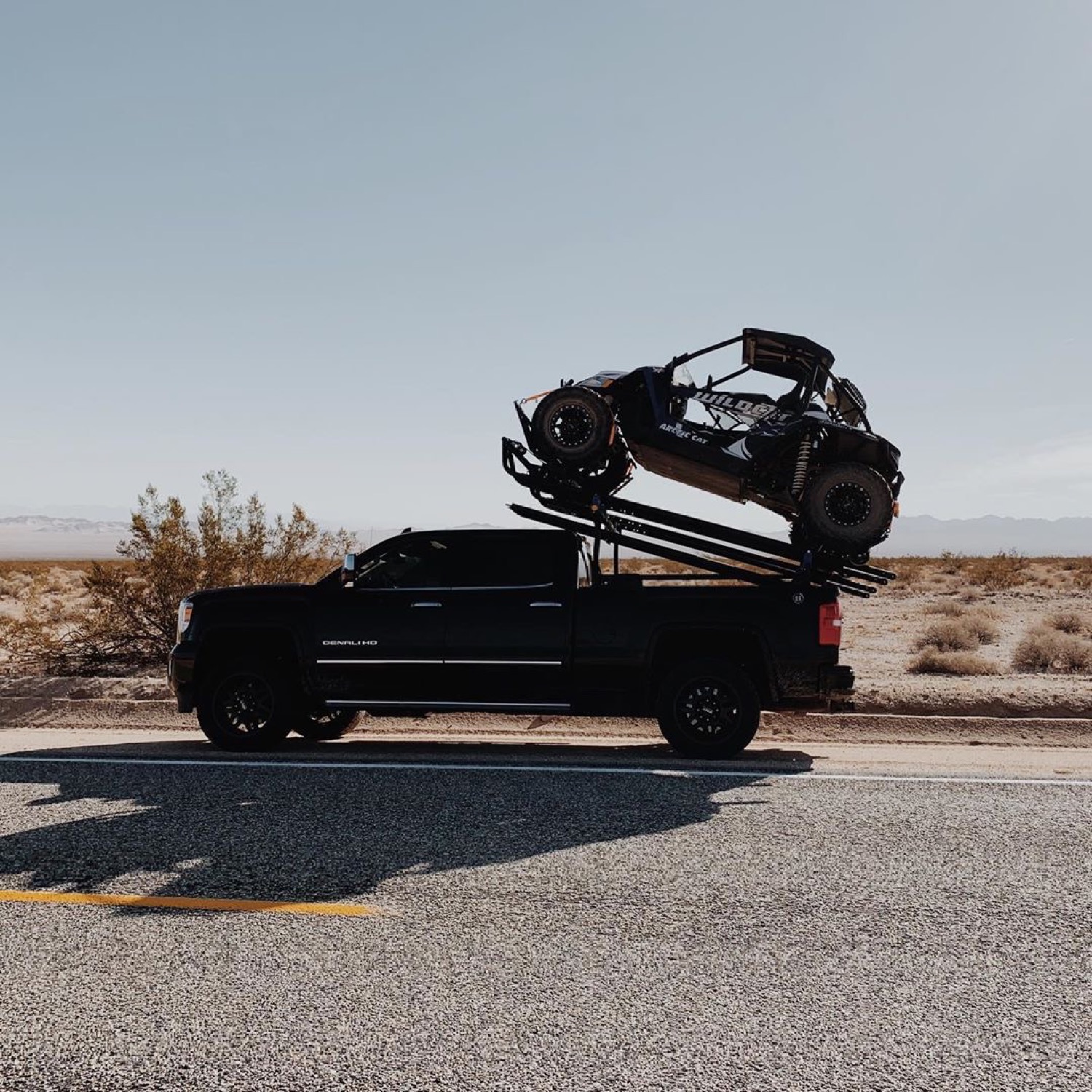

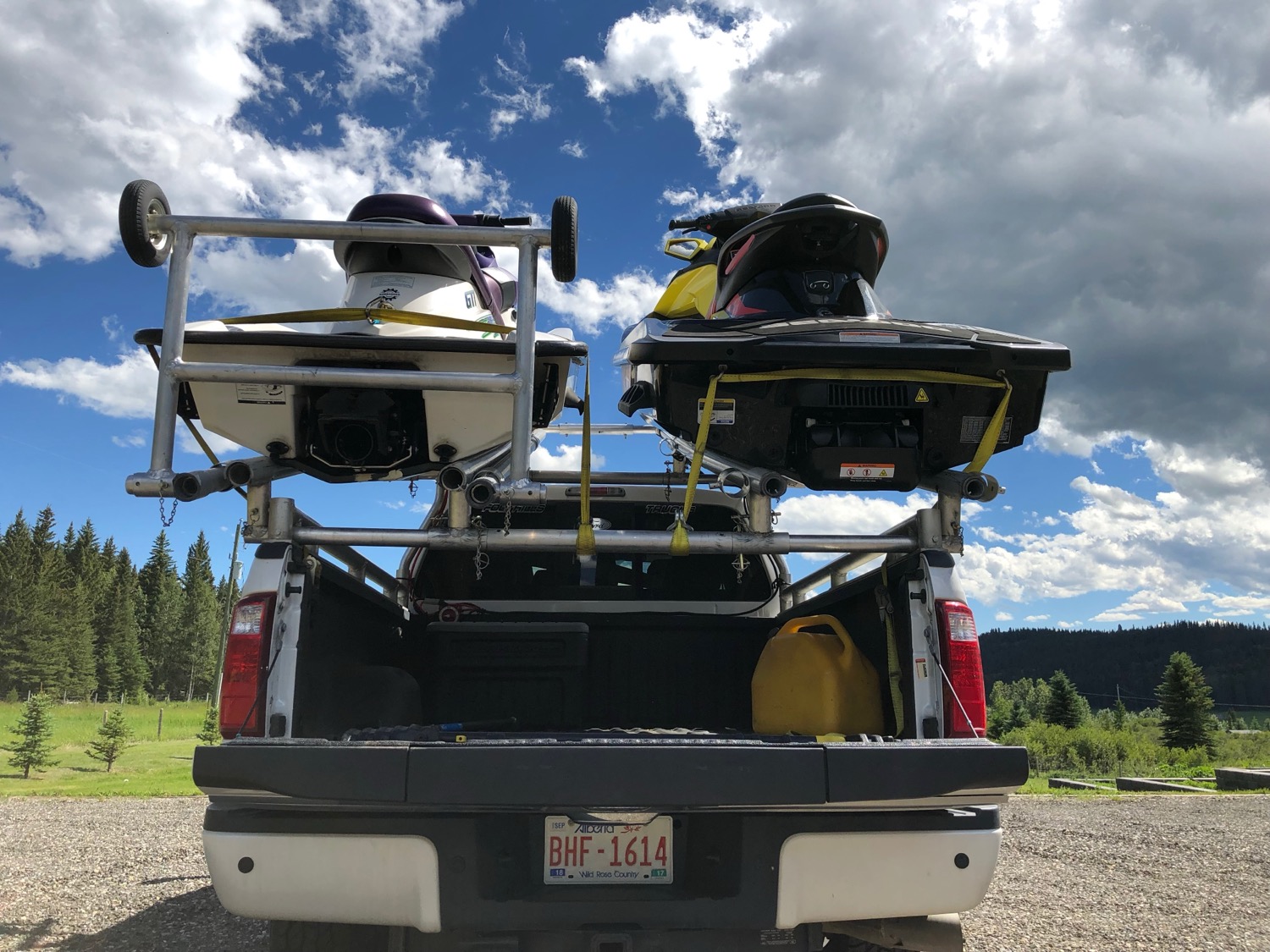

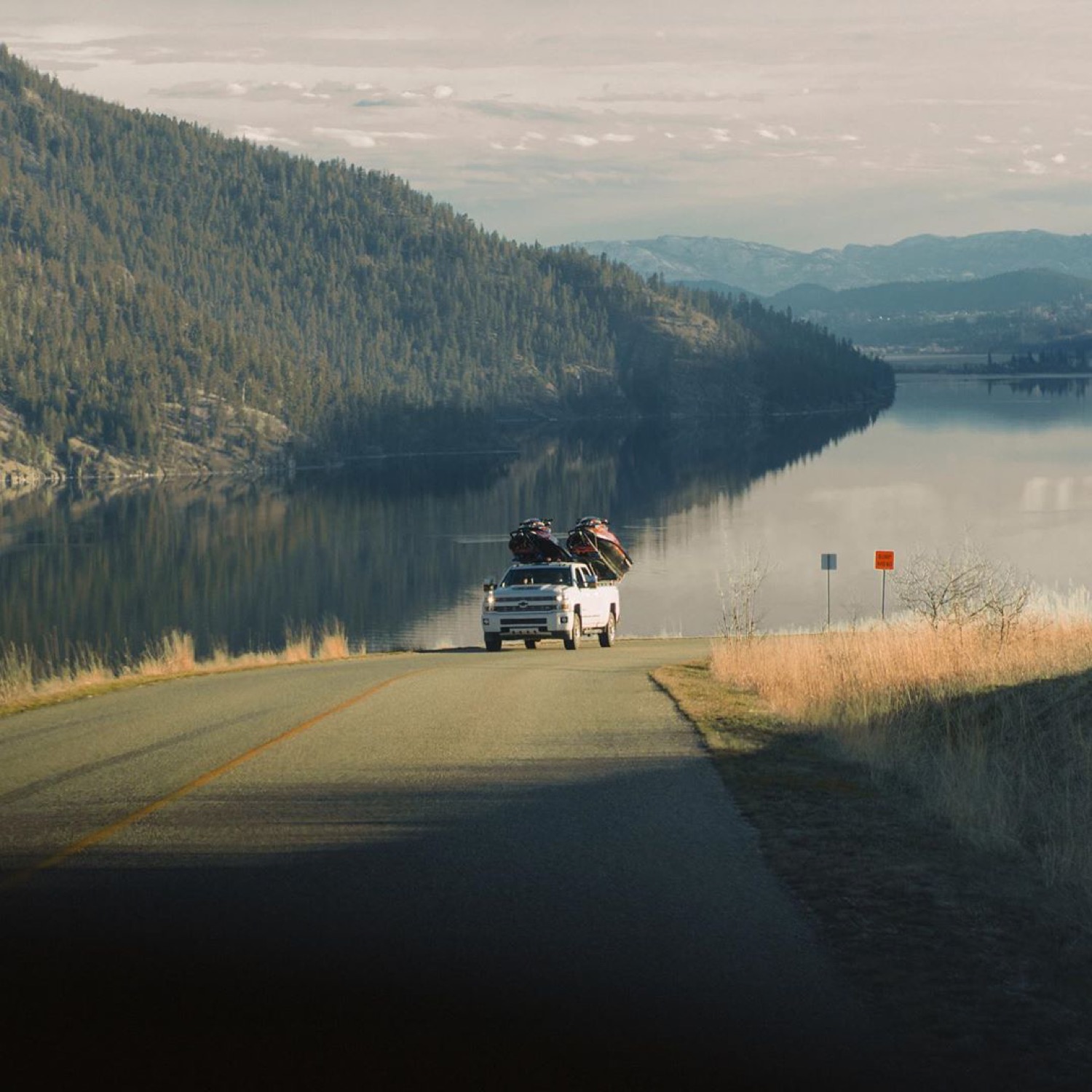

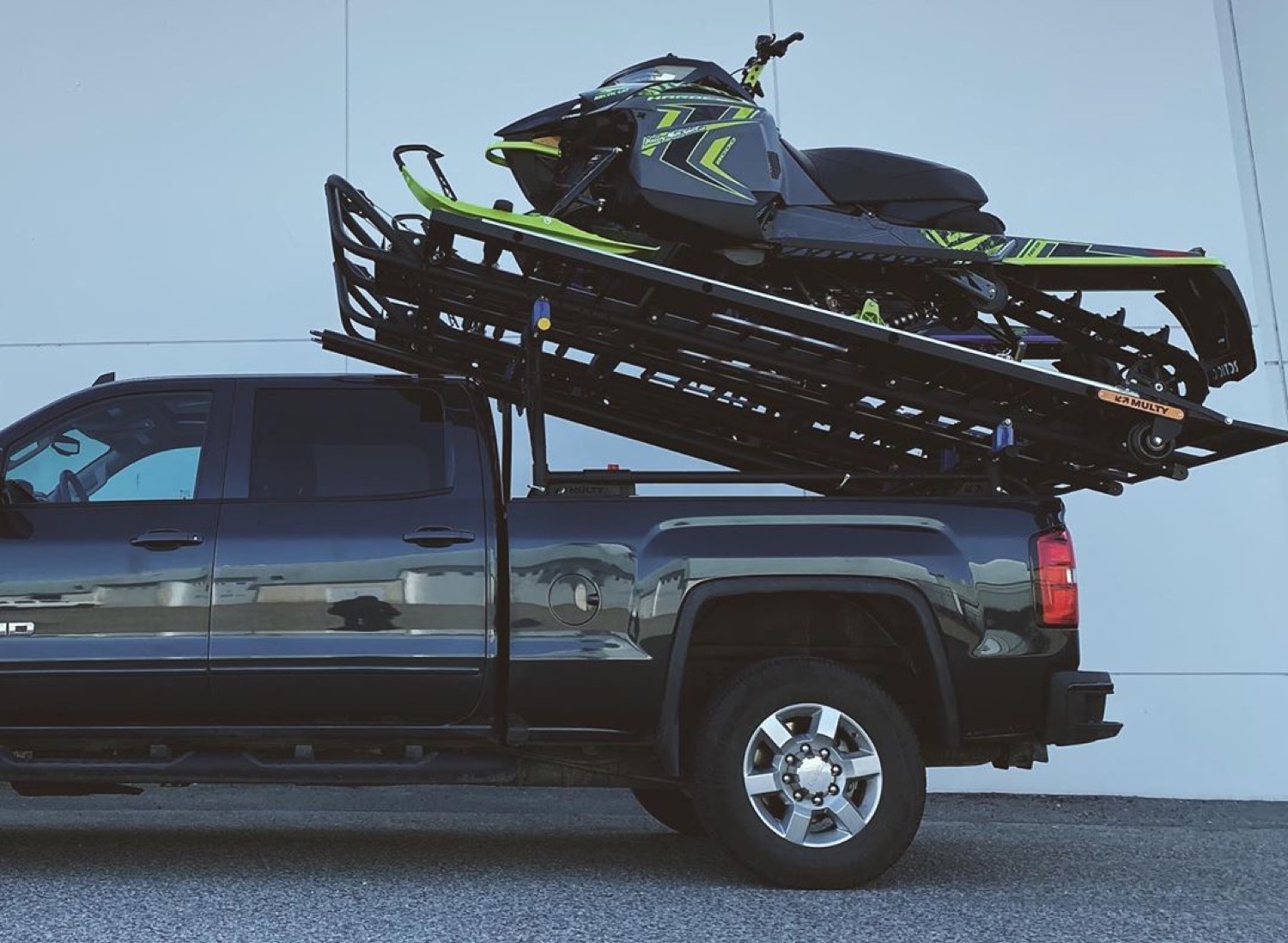

The cradle locks above the cargo area. Bed still usable, hitch still free to tow — the load rides secured at cab height.

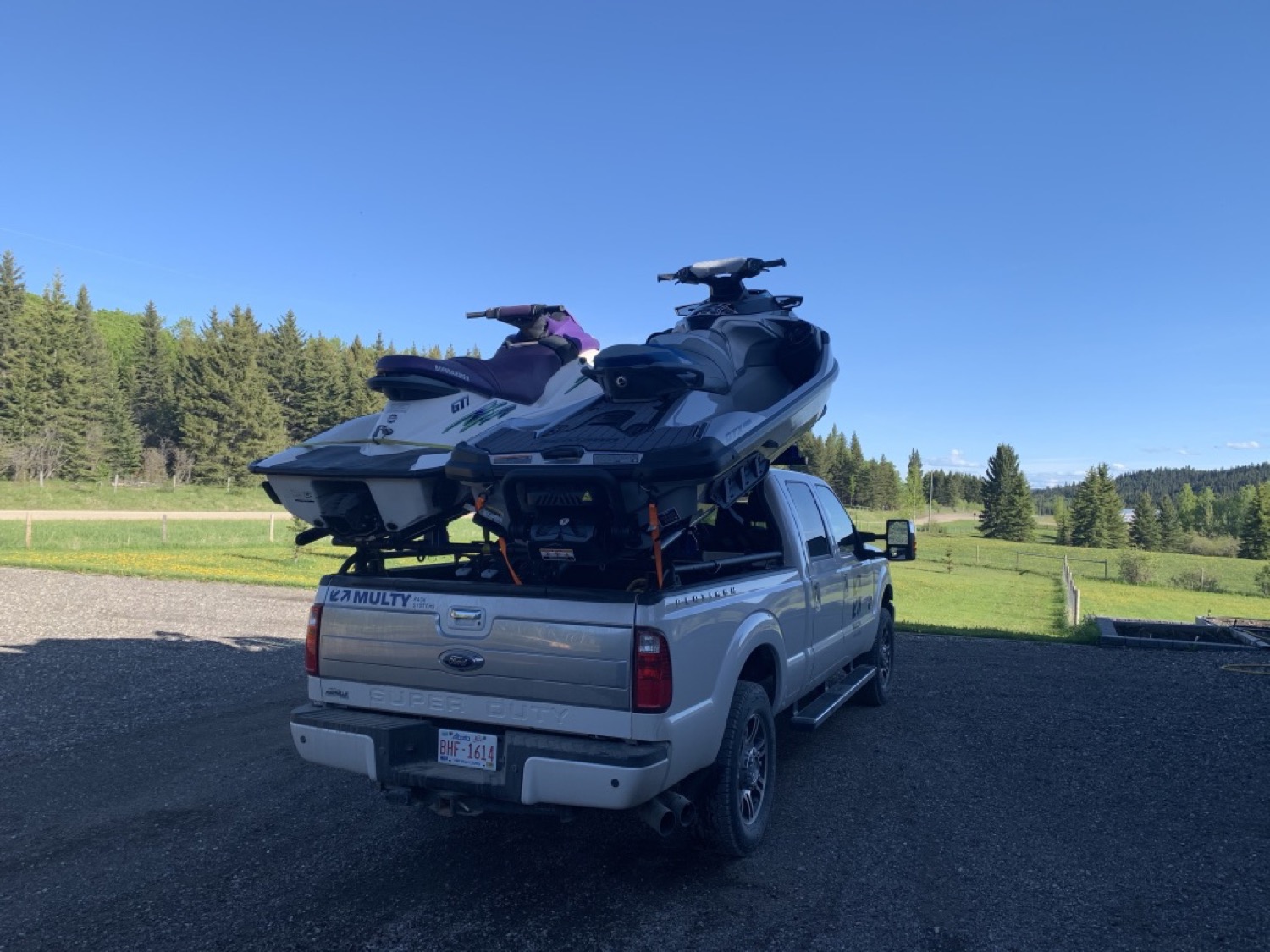

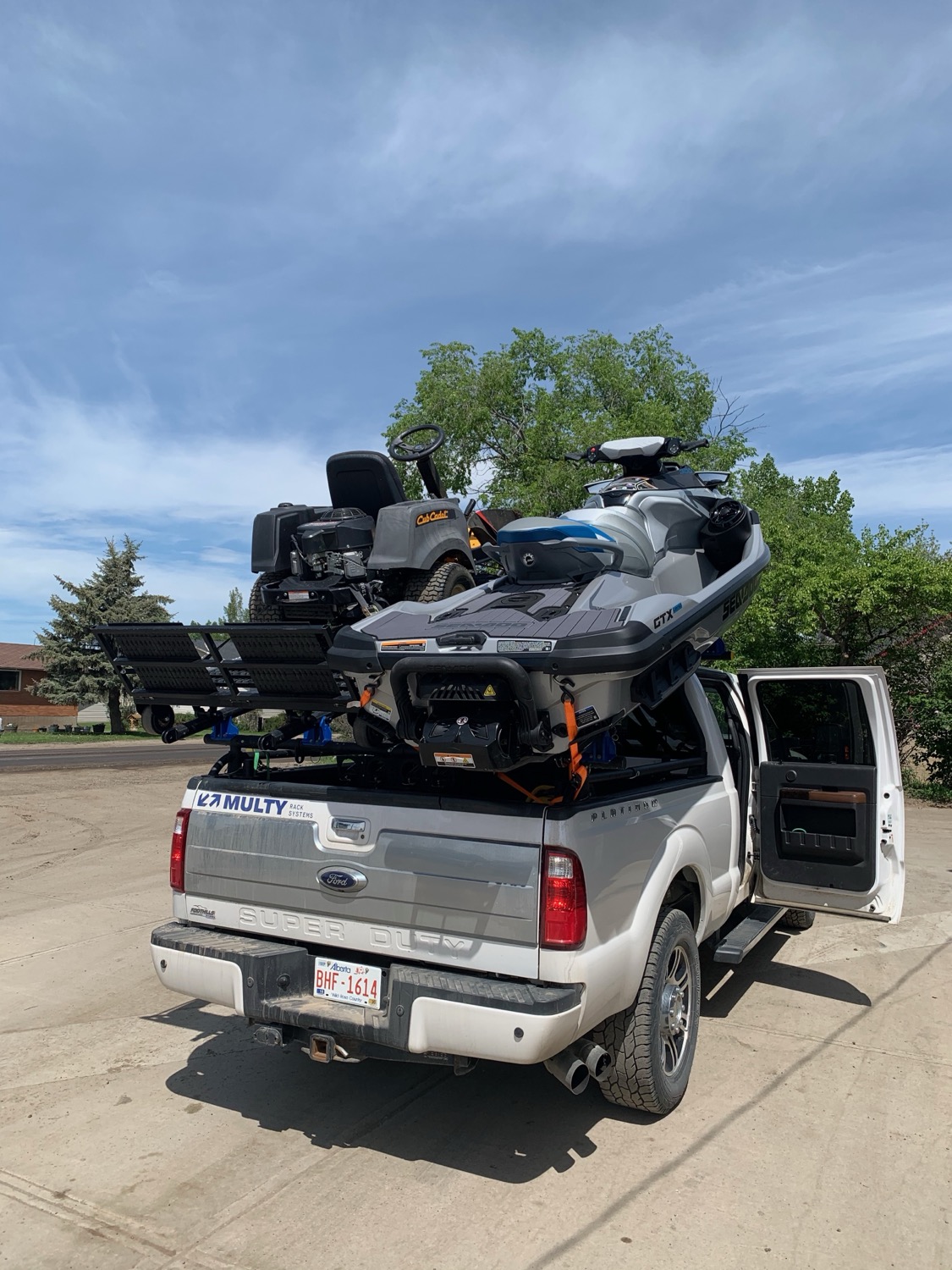

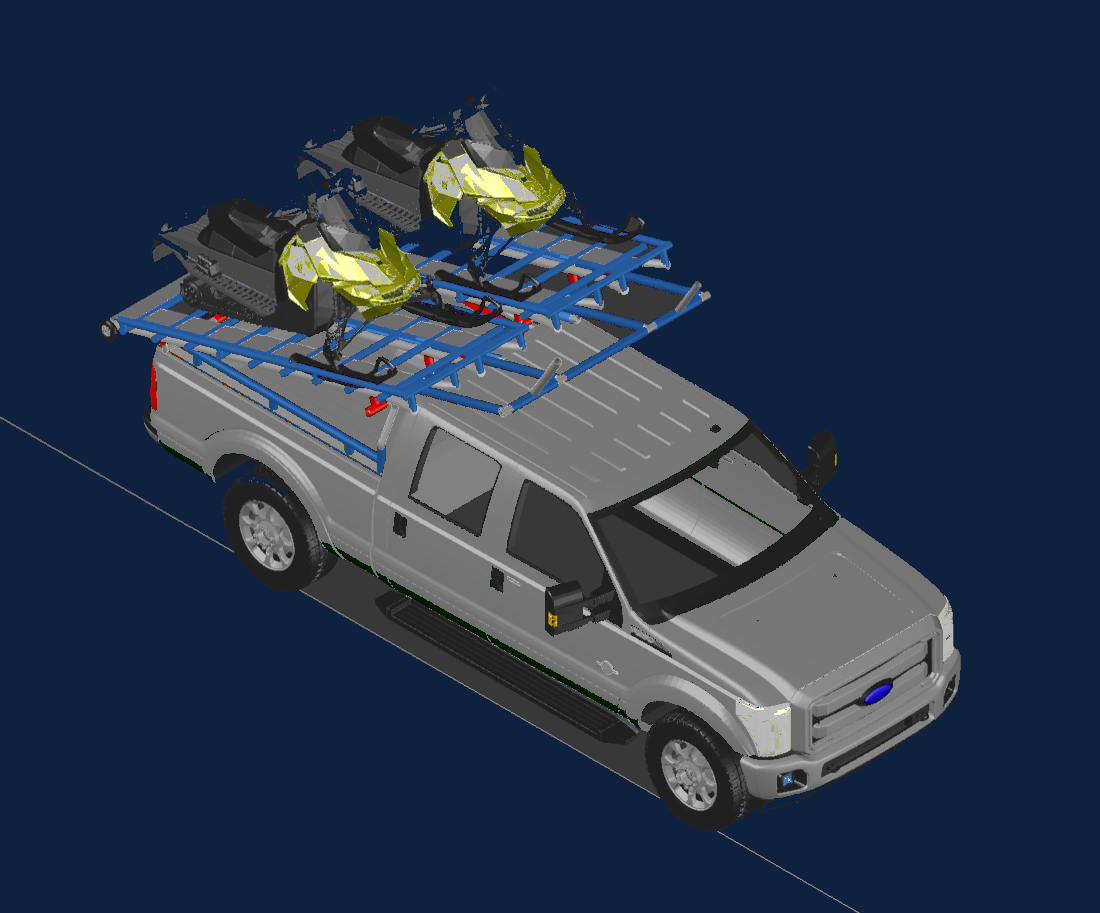

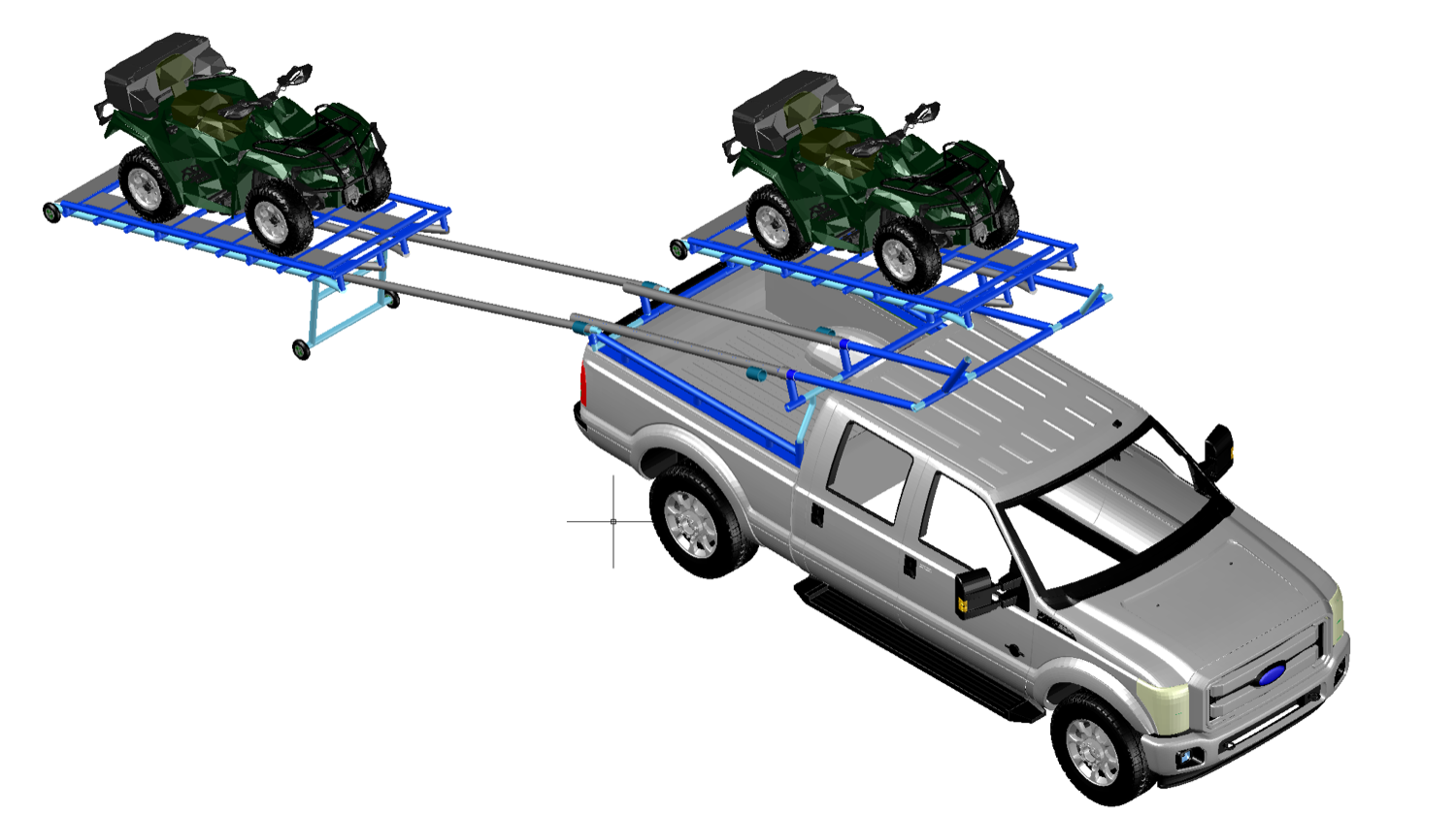

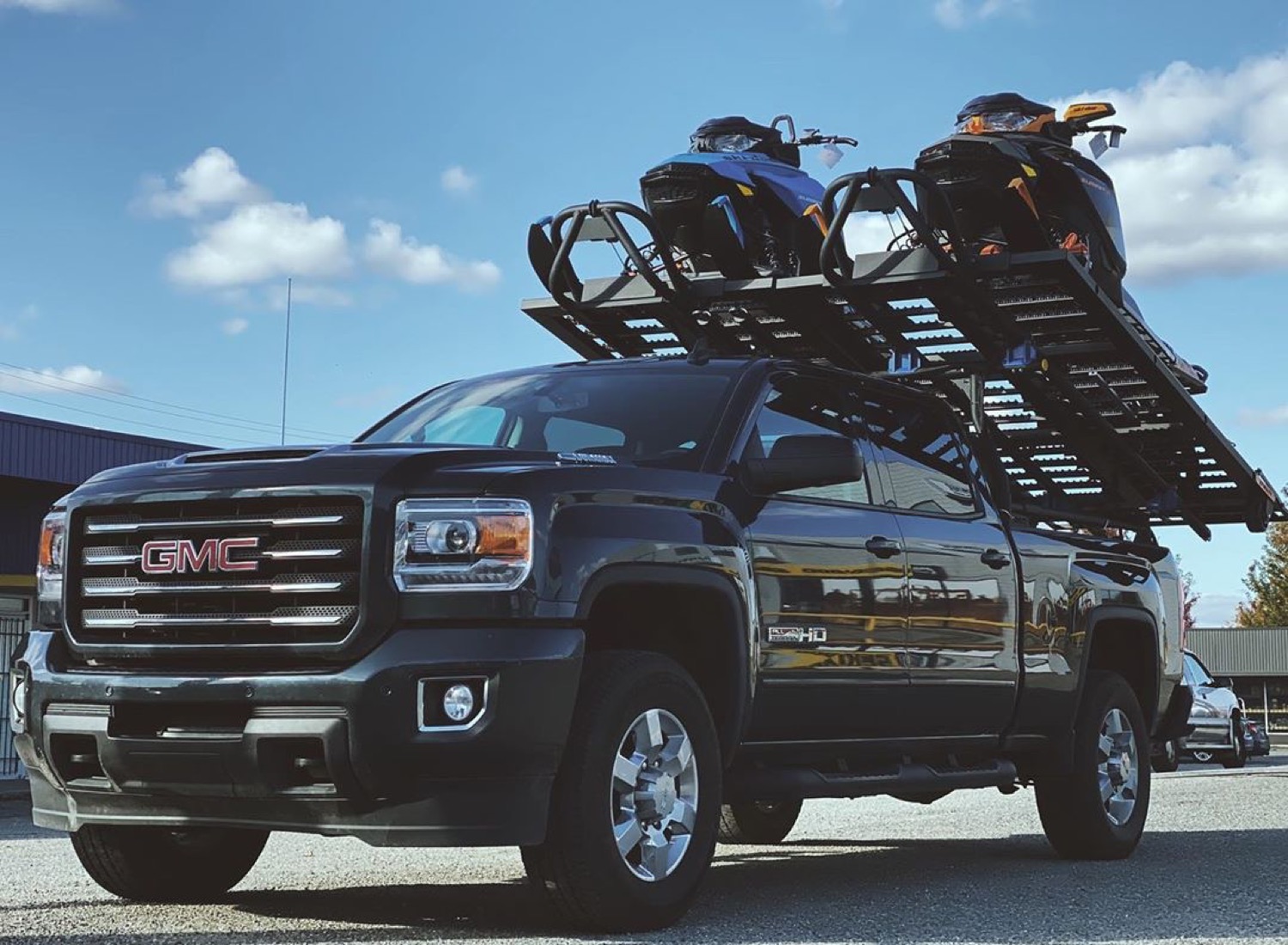

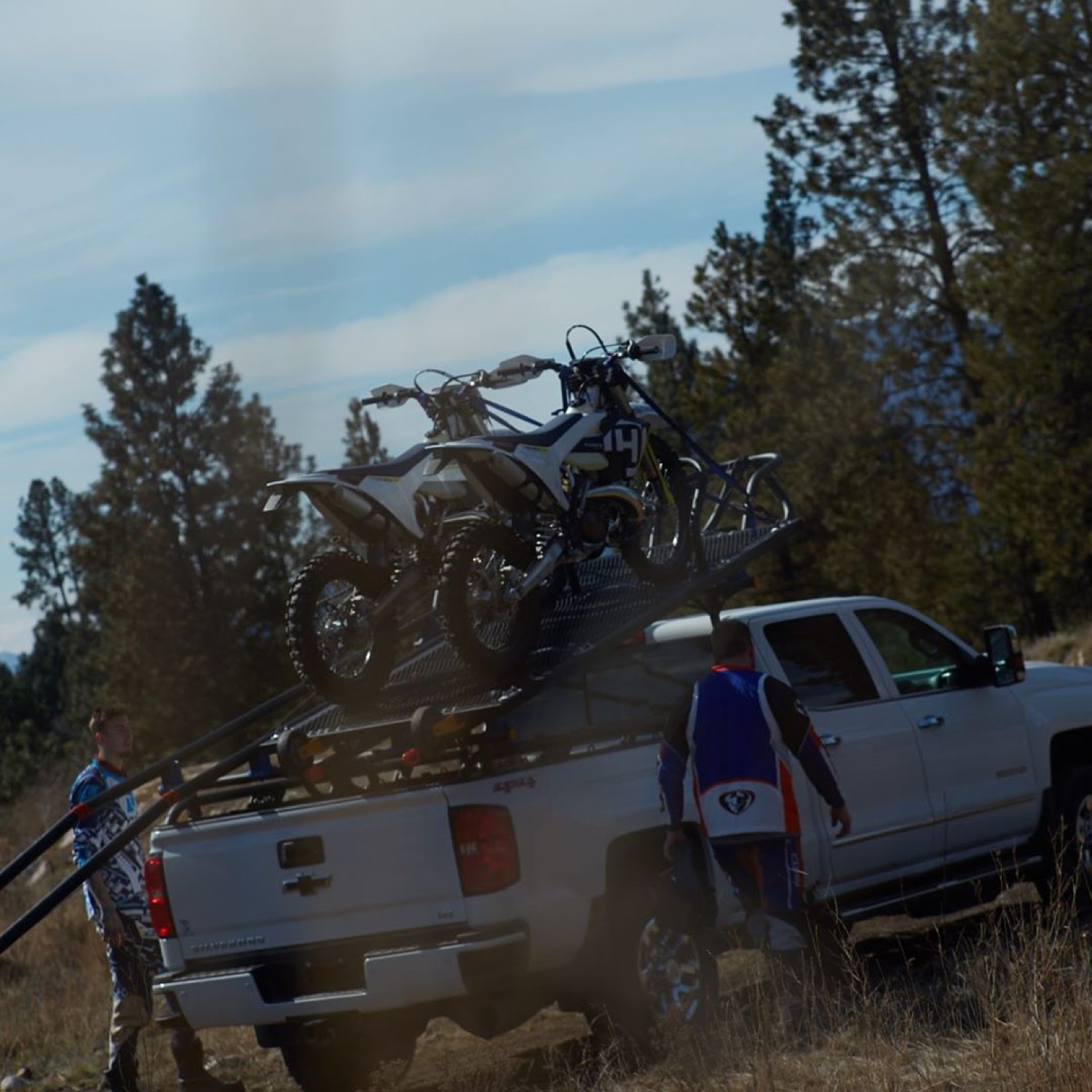

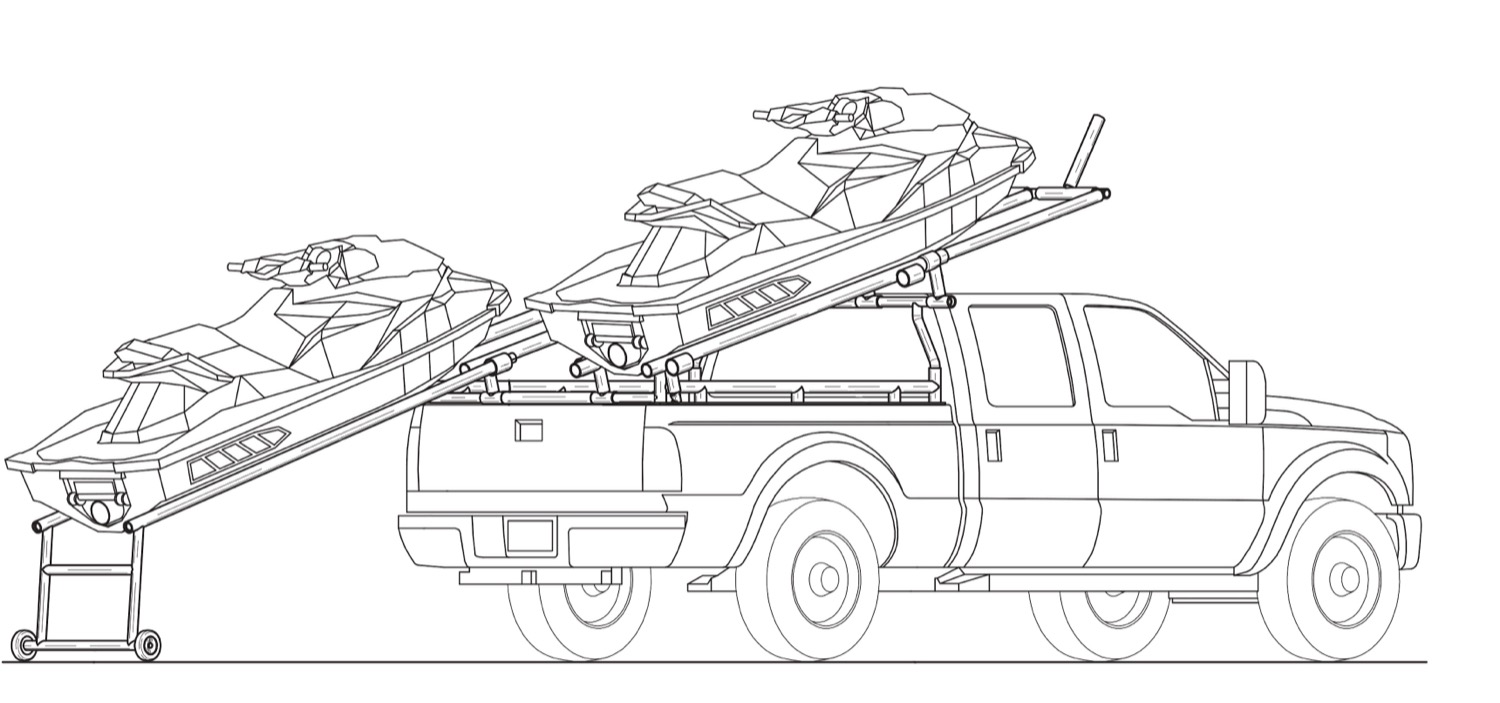

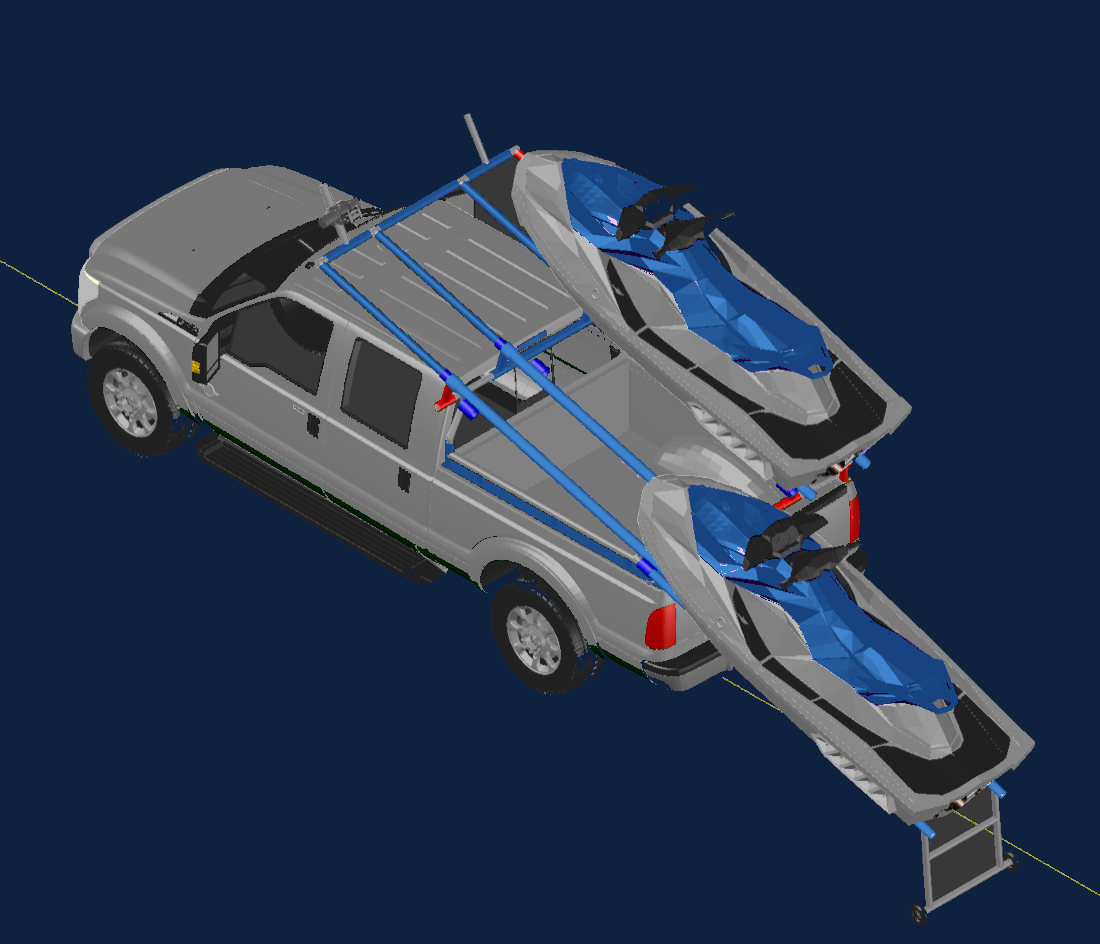

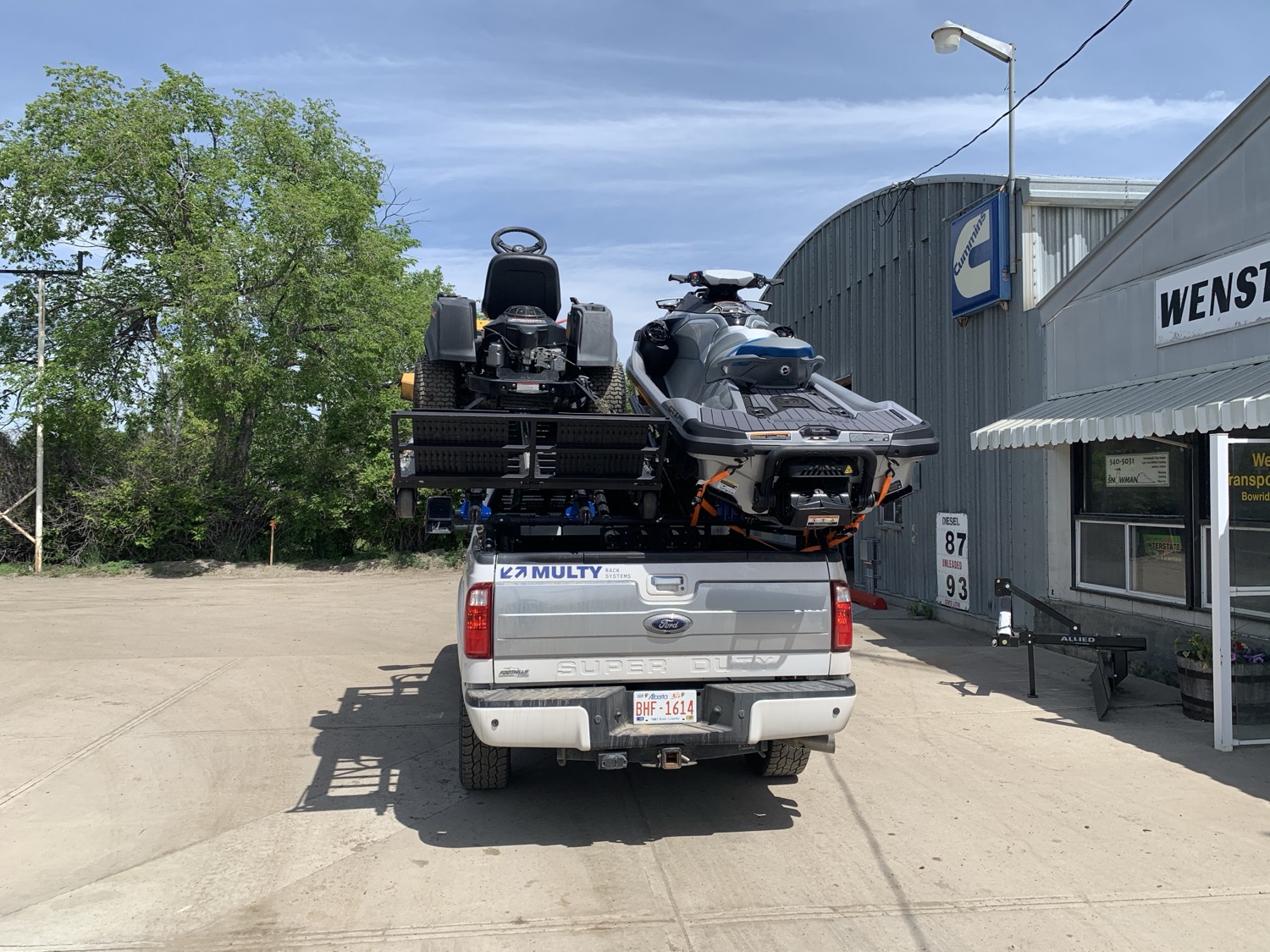

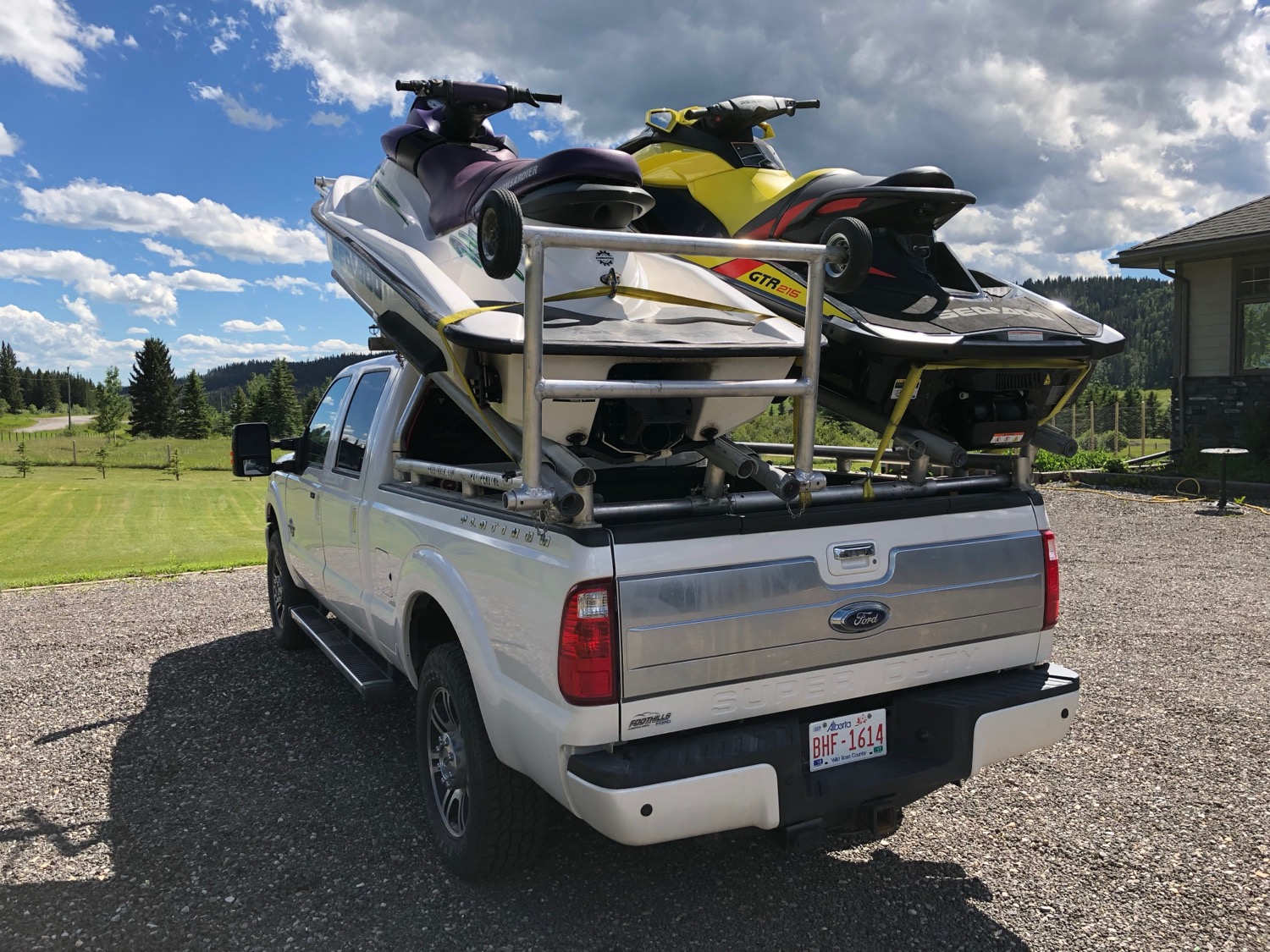

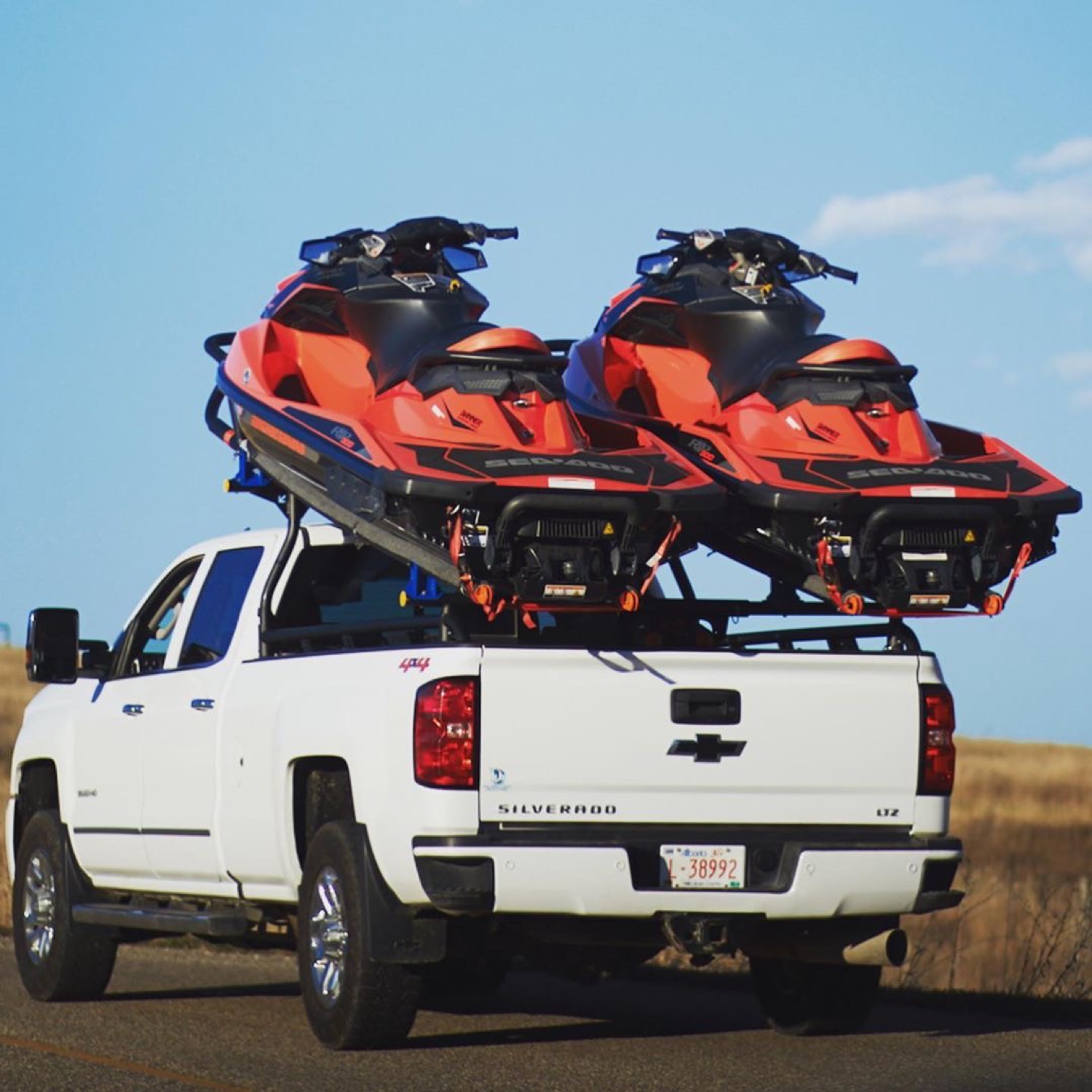

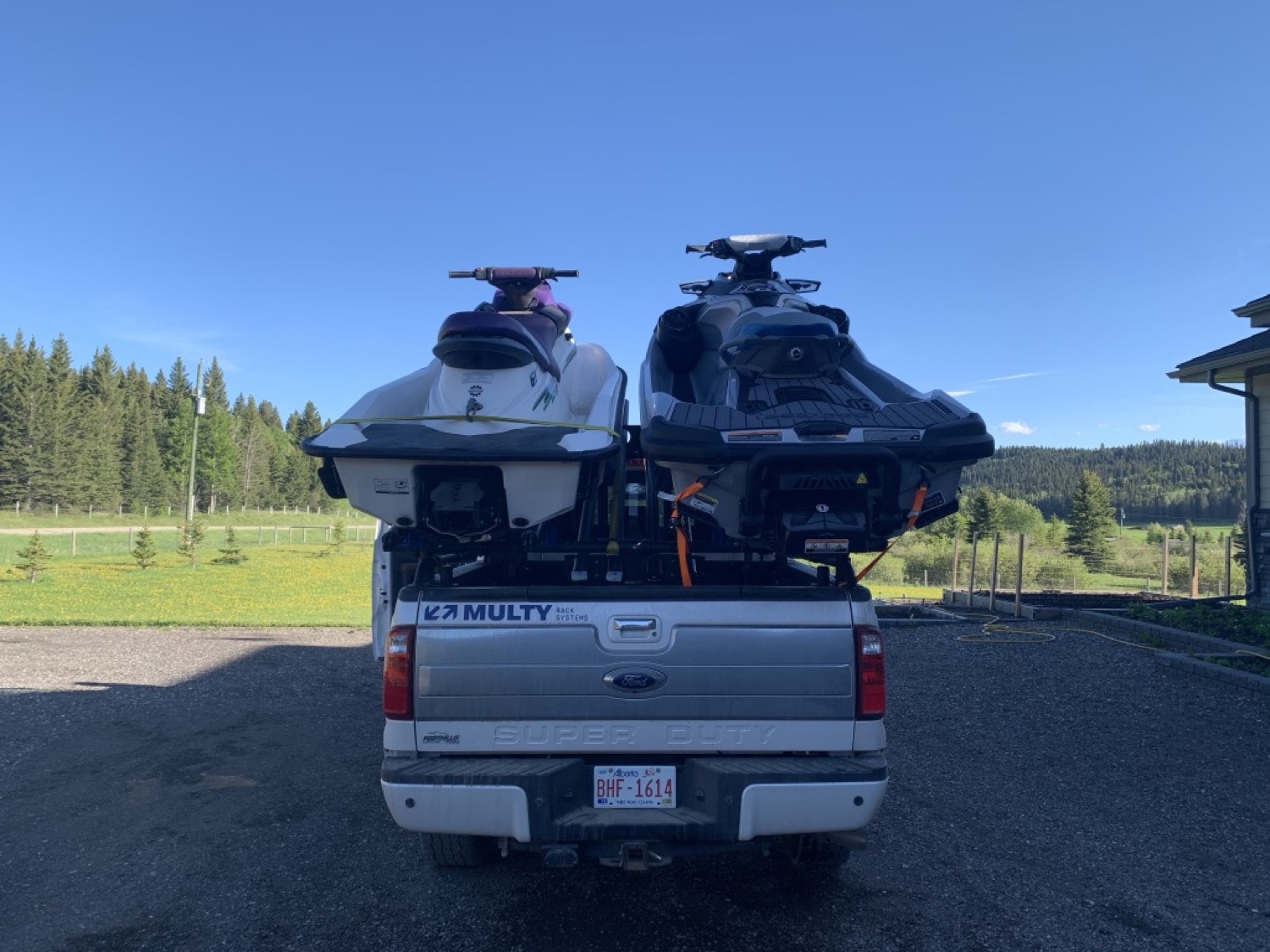

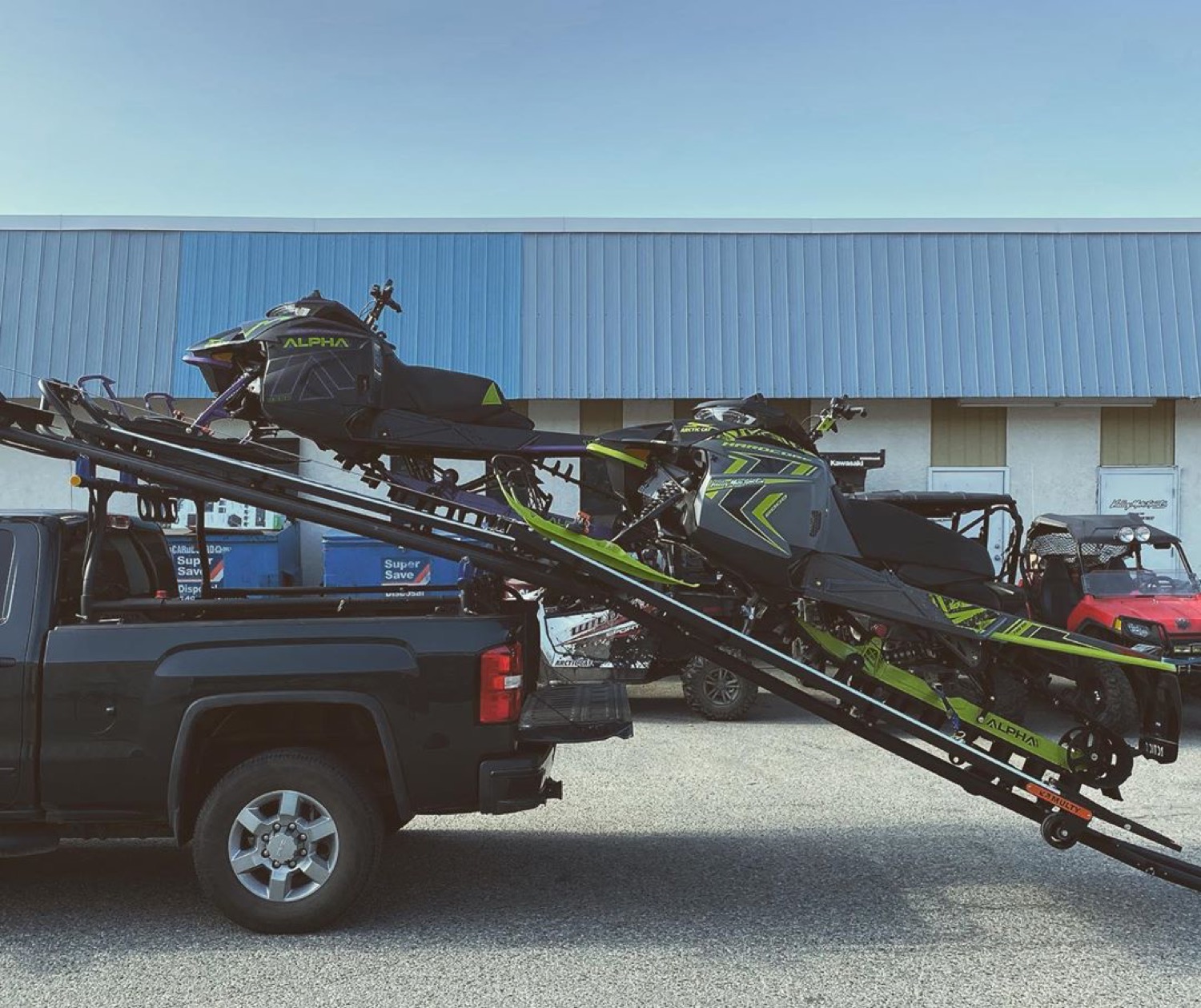

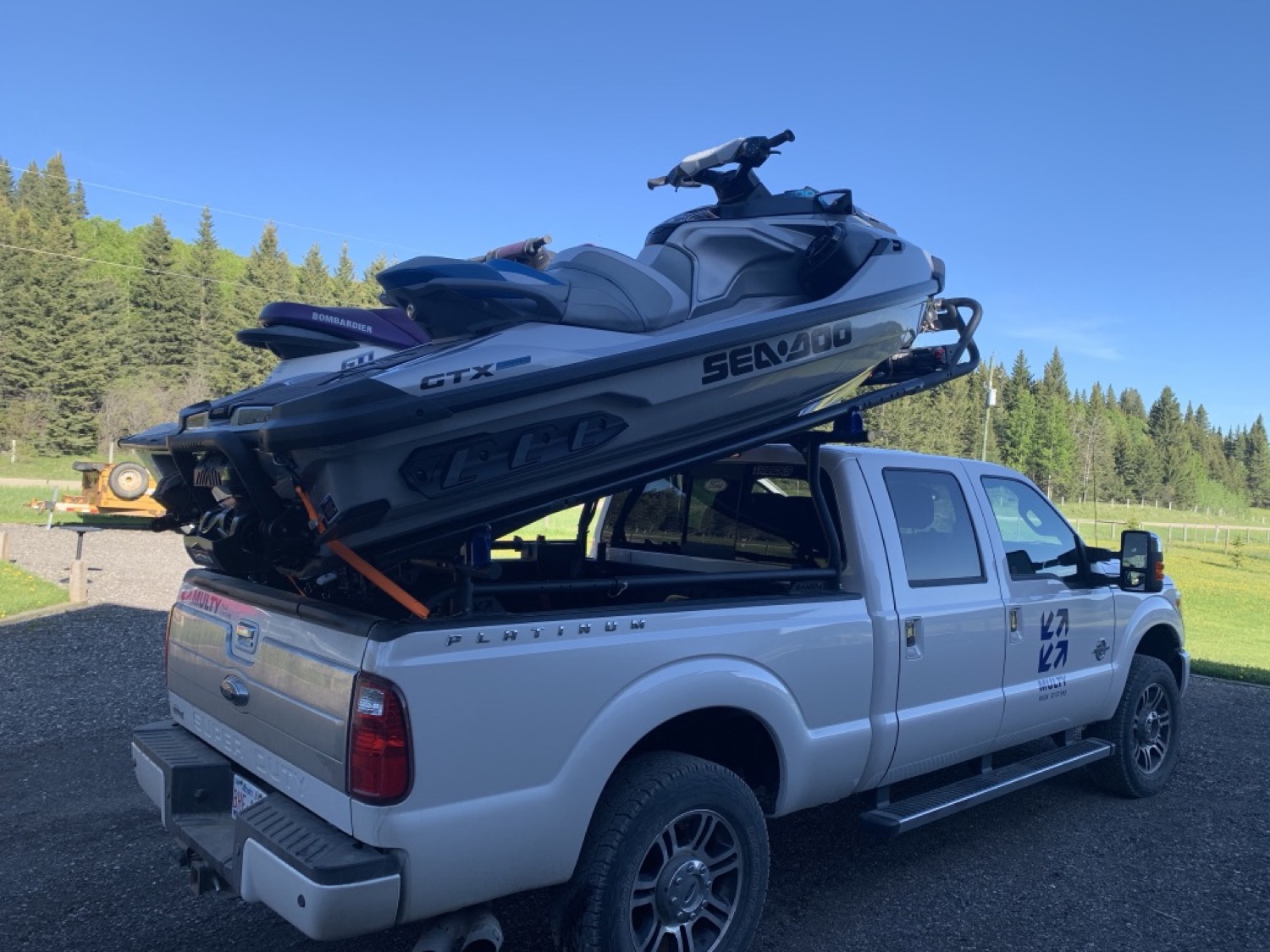

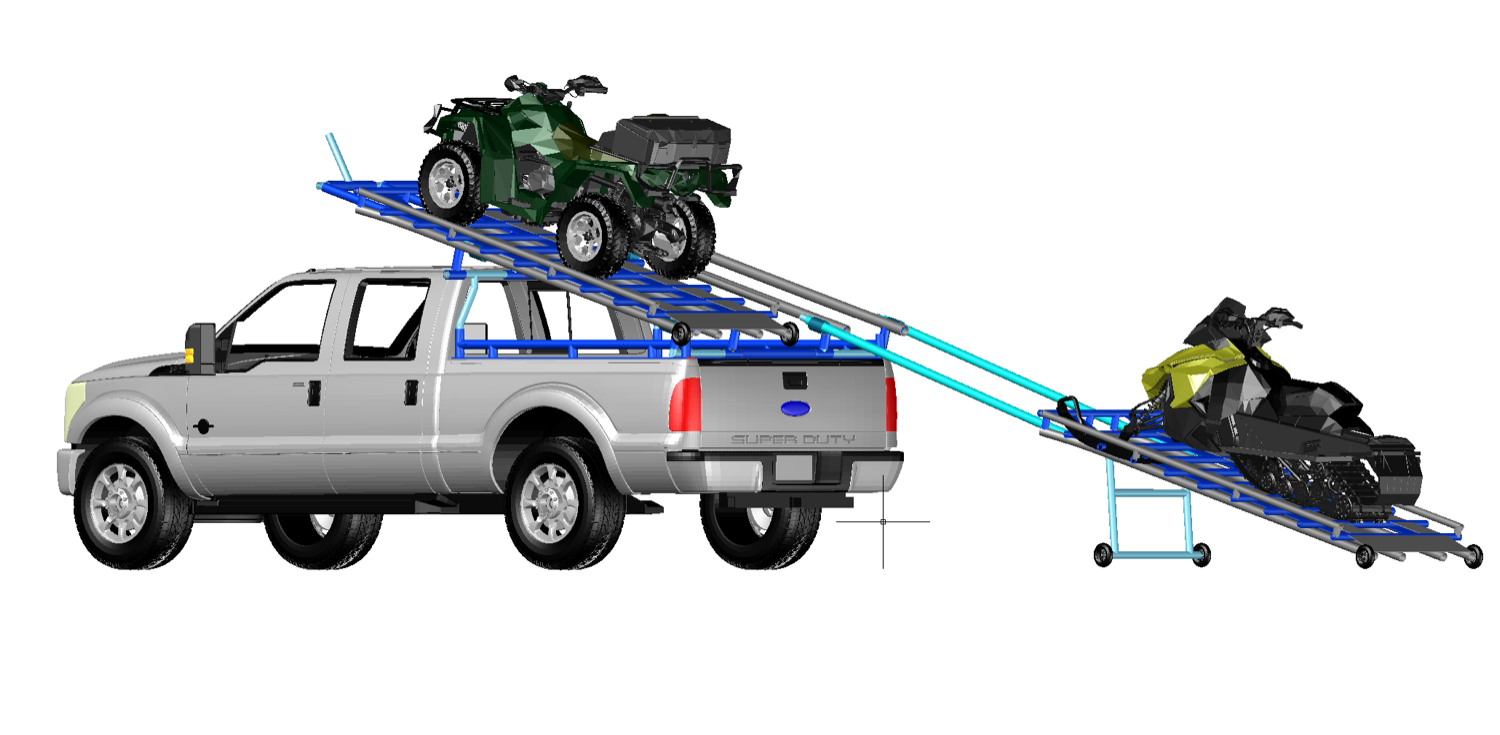

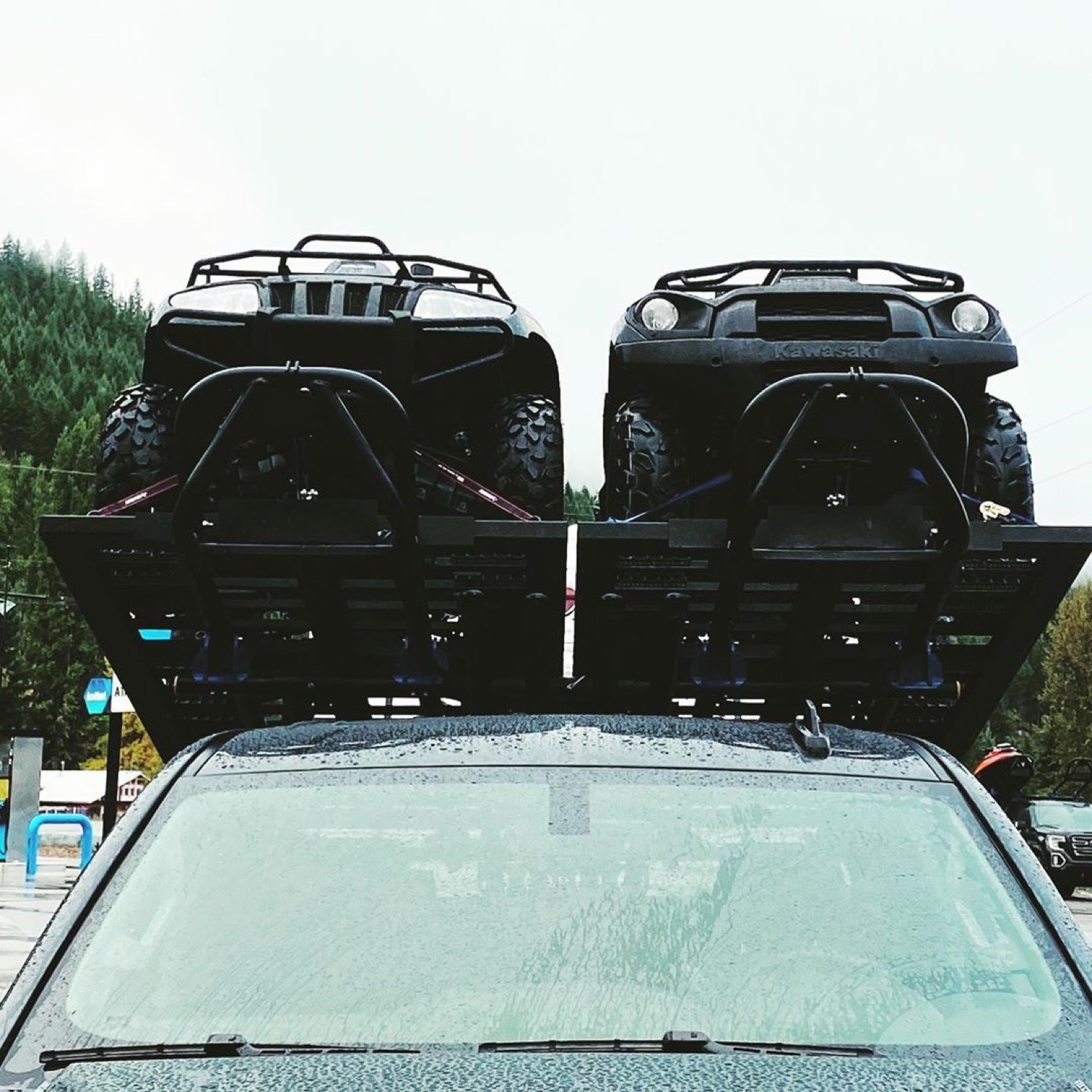

Dual lanes. Two independent rails mean you can carry — and load — two machines at once: an ATV locked up top while you winch a snowmobile up the other side.

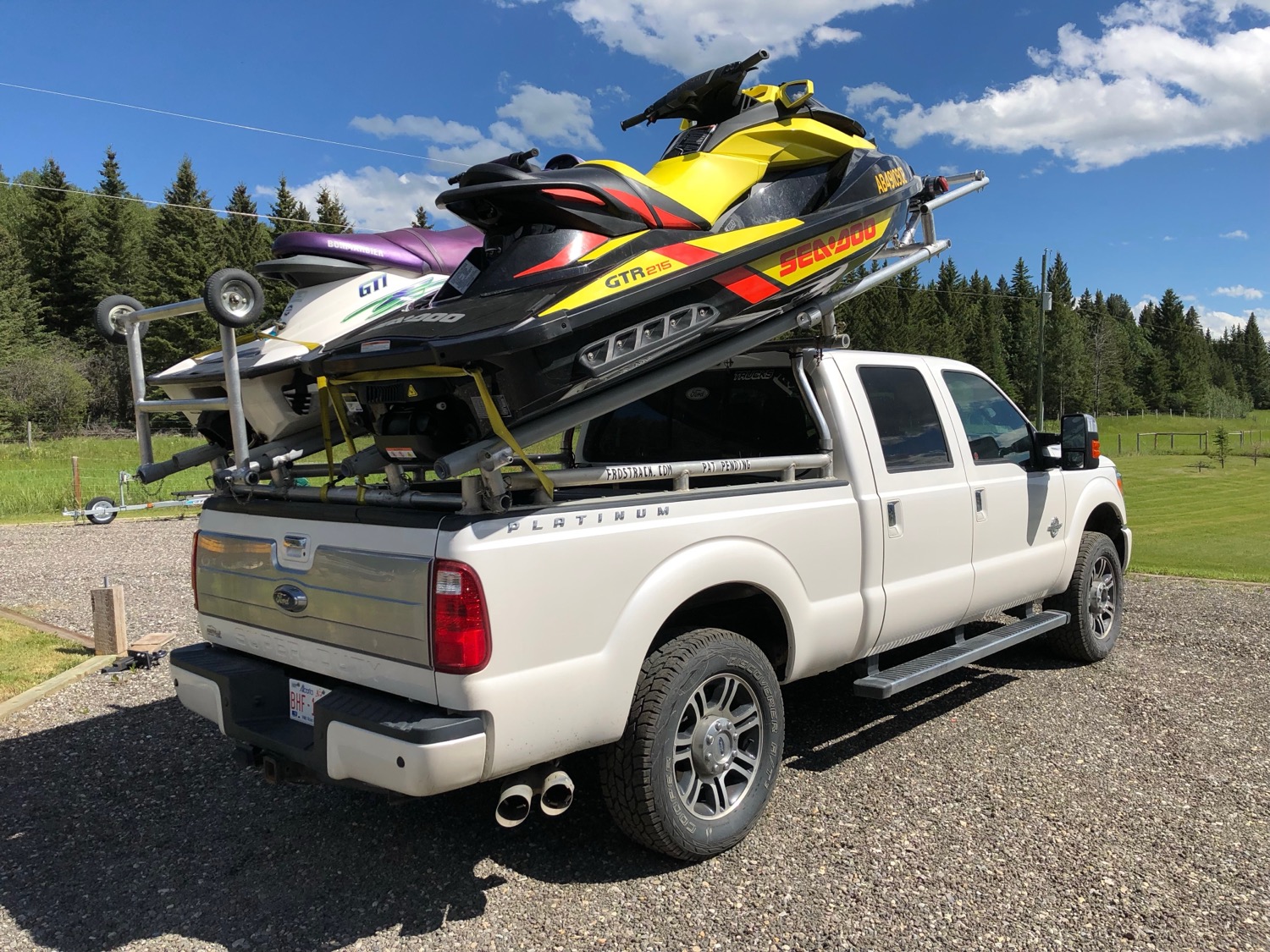

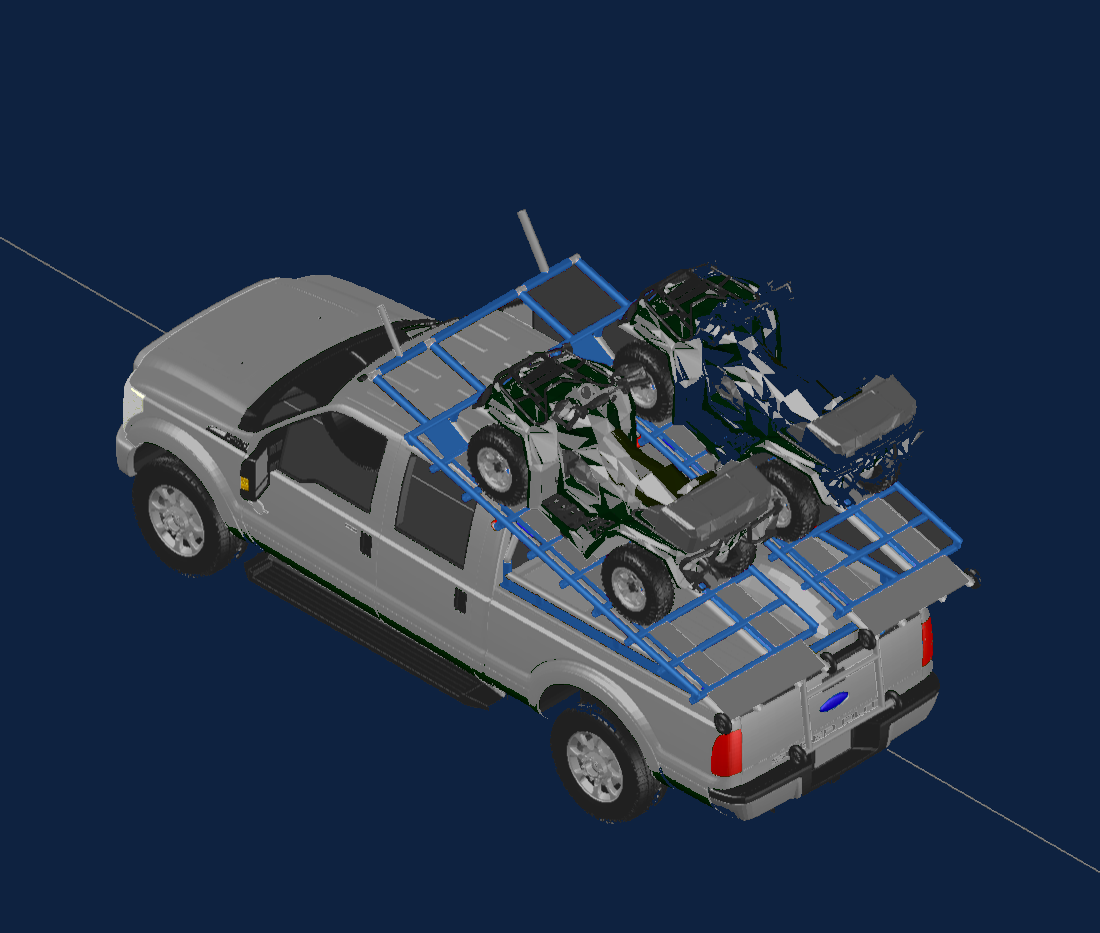

Frostrack carries personal recreational vehicles above the cargo area — keeping the bed usable and the hitch free to tow. It clamps on with turnbuckles — no bolts, no drilling — and telescopes to fit, so it transfers to a new truck in minutes, even a different brand or bed size.
Customer buys the premium aluminum base rack.
Toolbox, cargo and ladder accessories.
Carriers for PWC, ATV, snowmobile, golf cart.

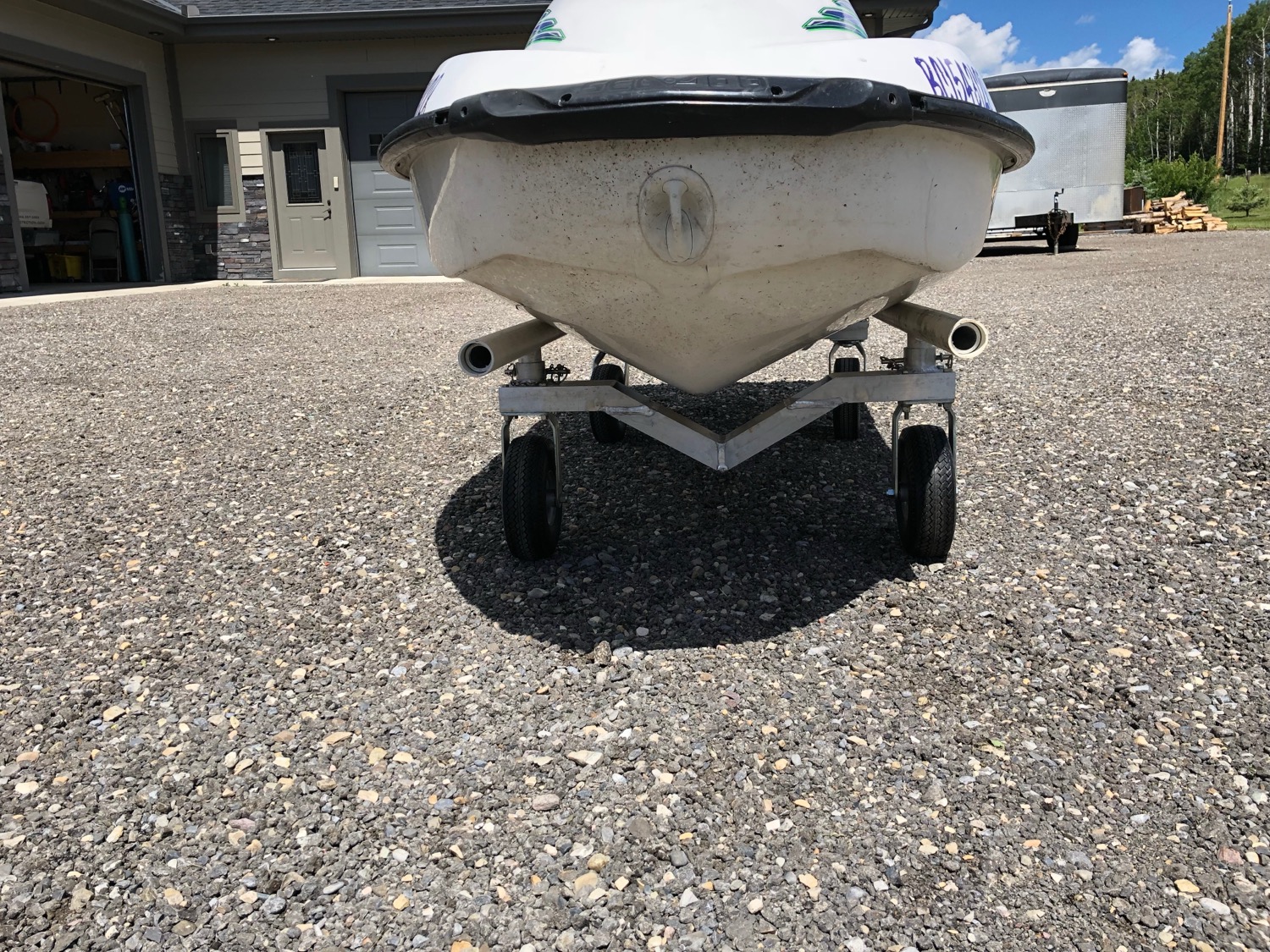

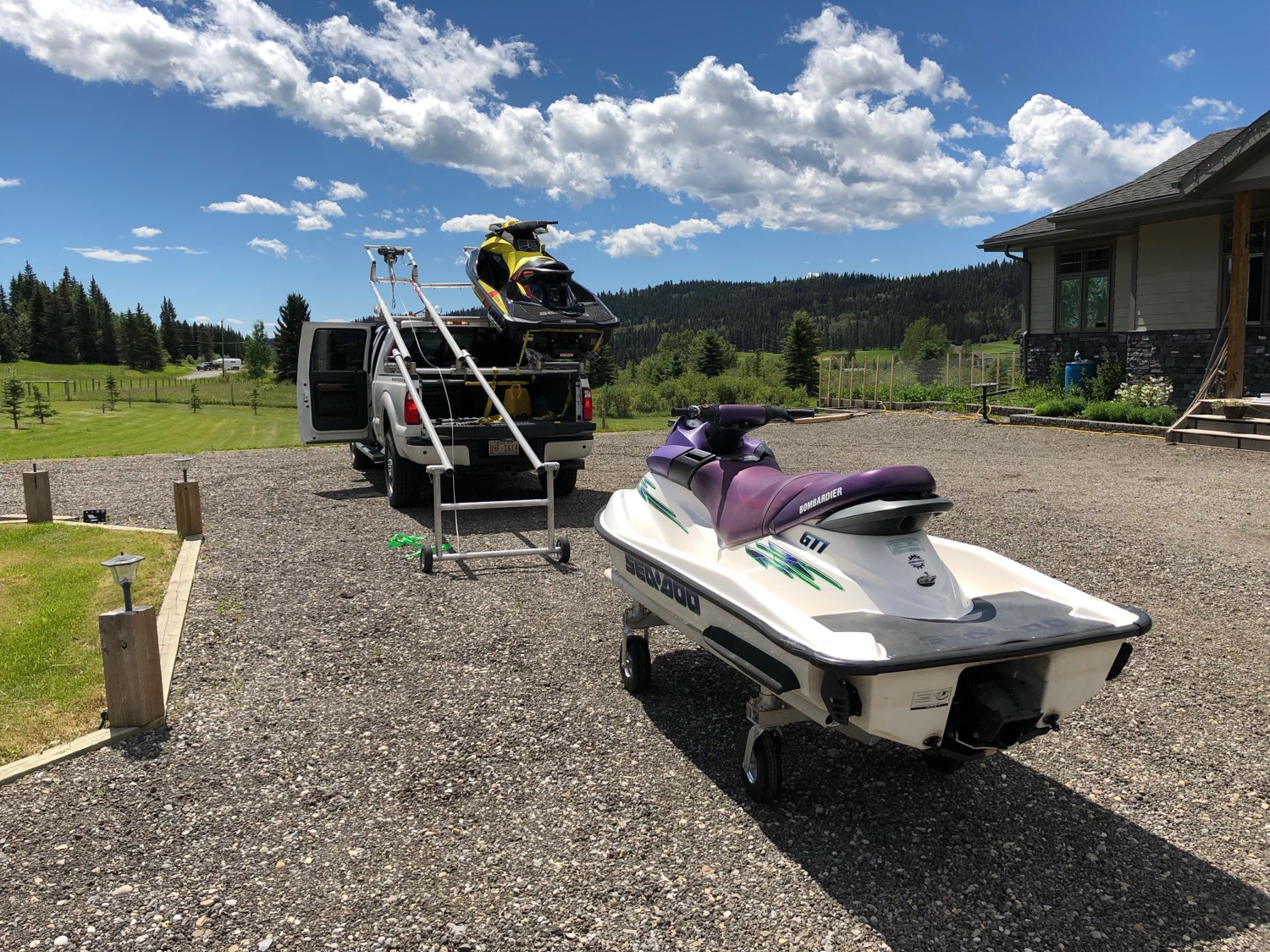

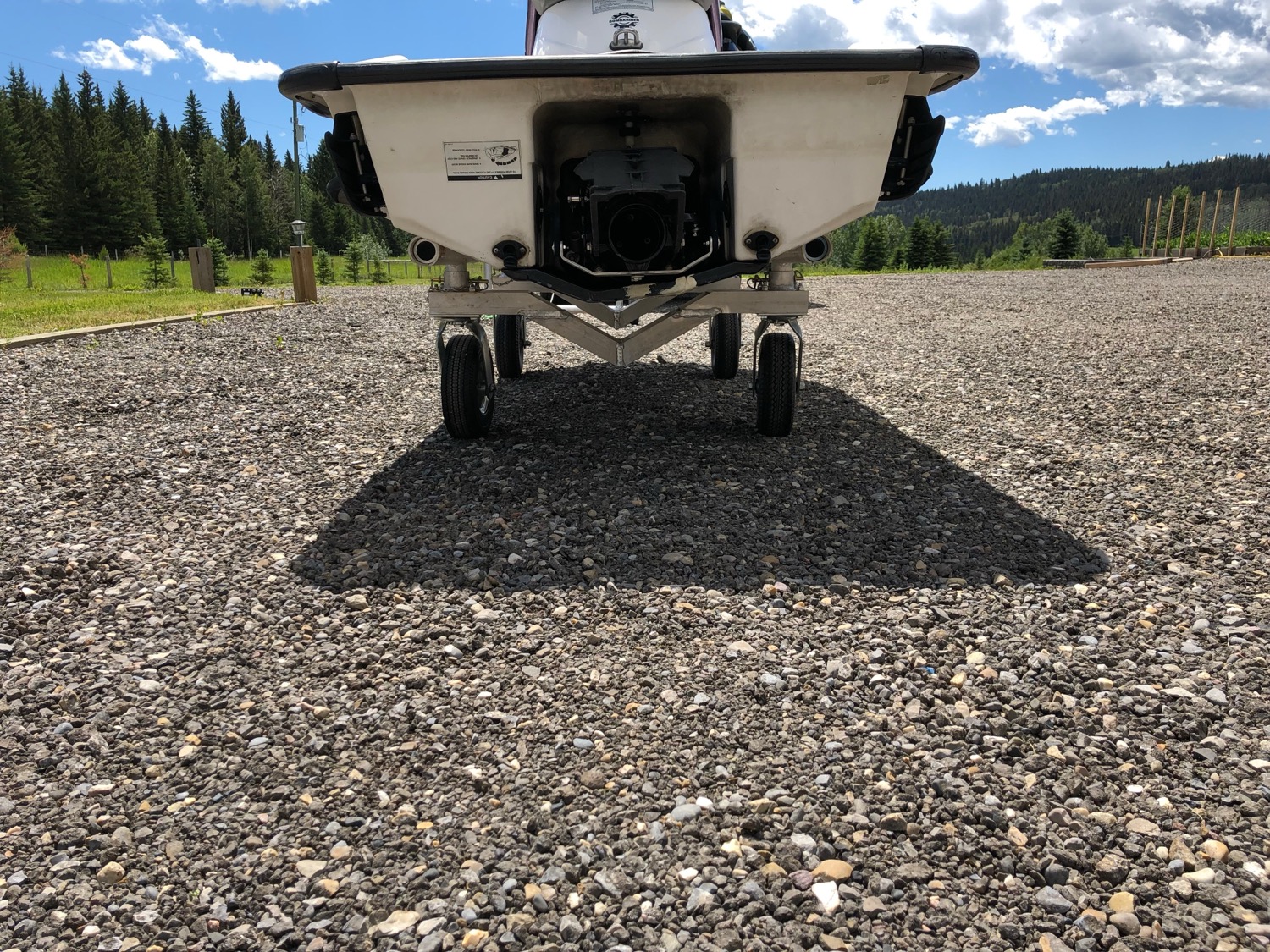

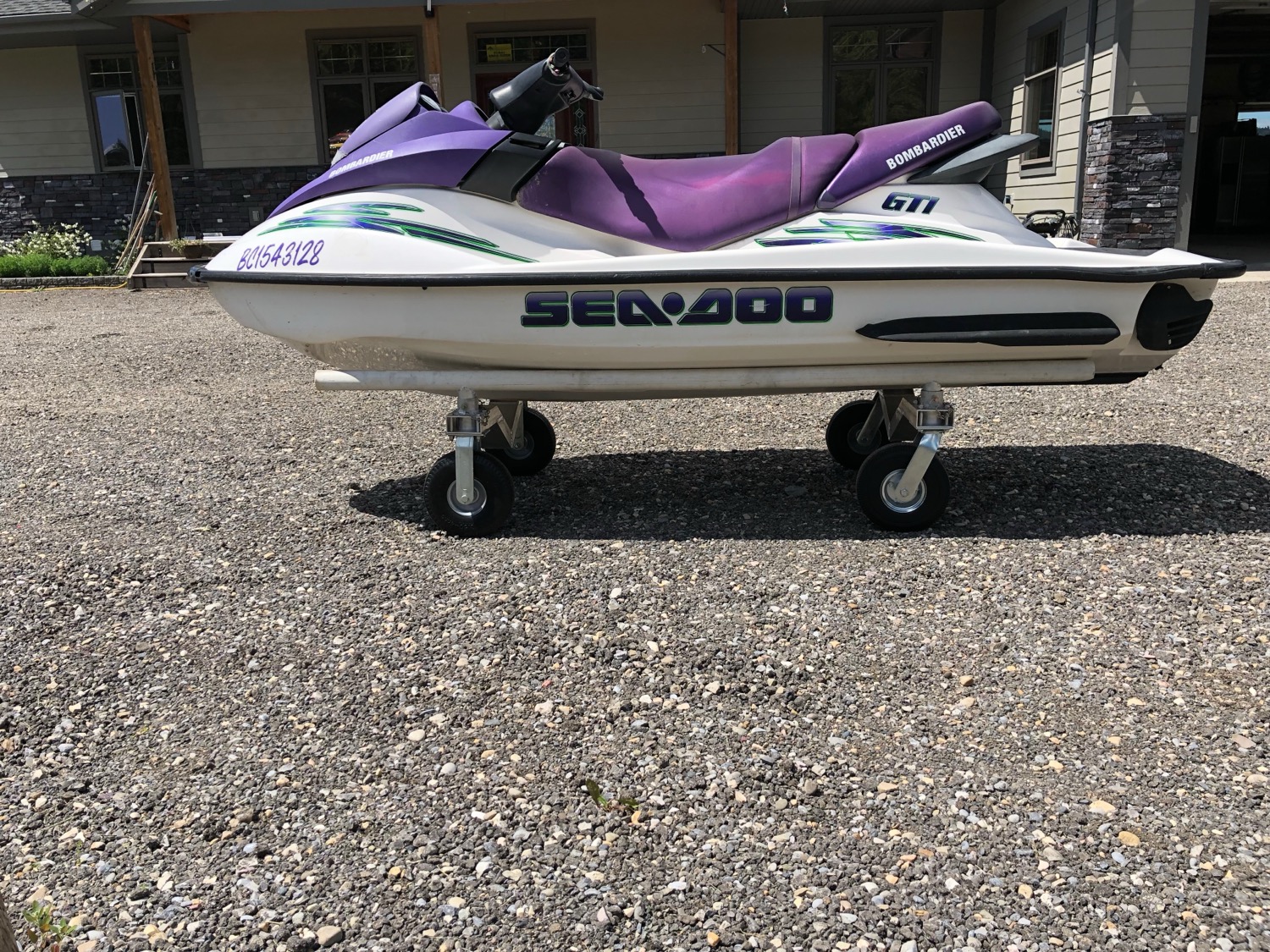

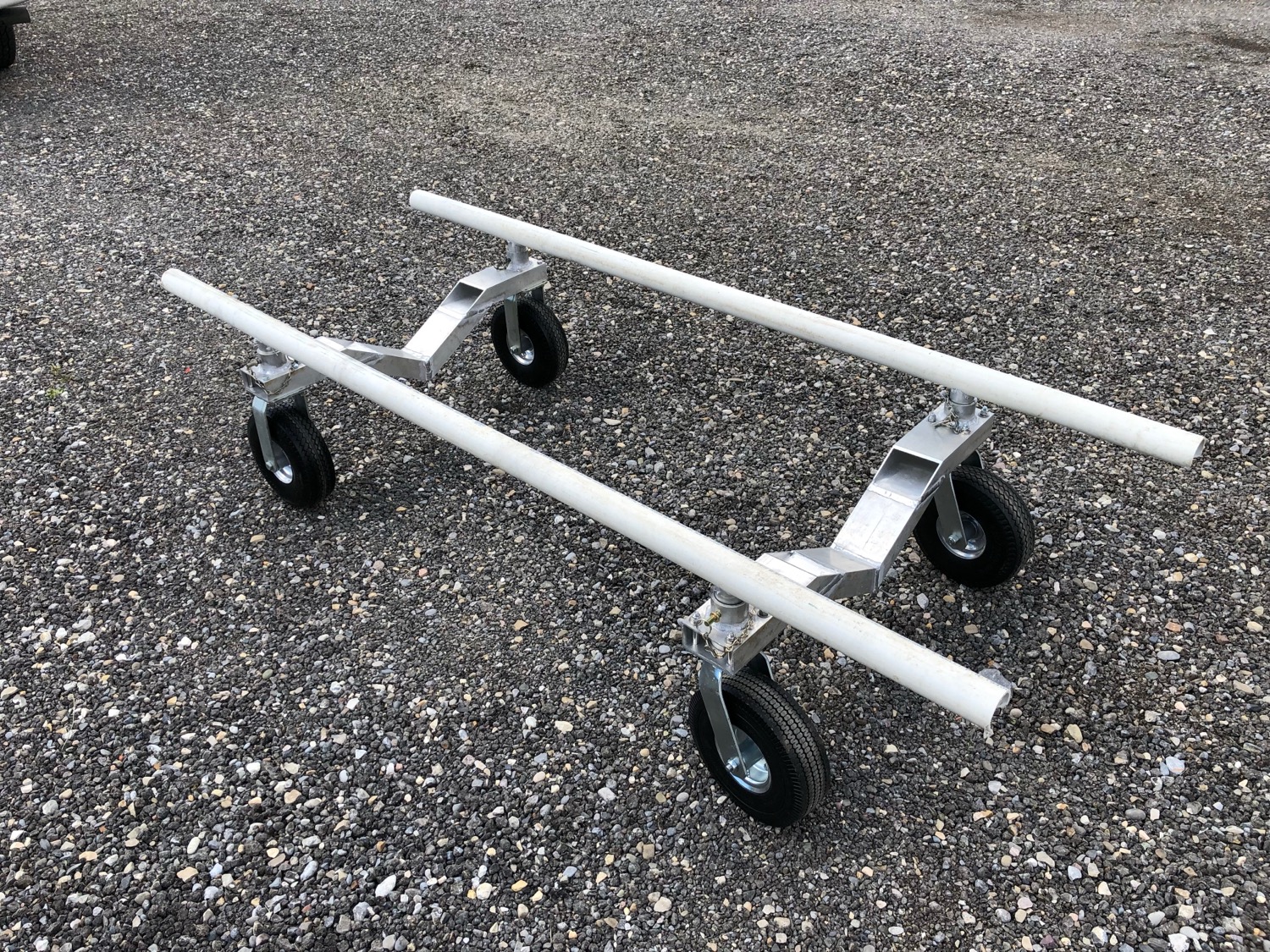

Davit arm or PWC home dolly — with further attachments on the roadmap.
More attachments as lifestyle changes and the catalog grows.
Every attachment is a new SKU, a new dealer upsell, and a new reason for the customer to return.

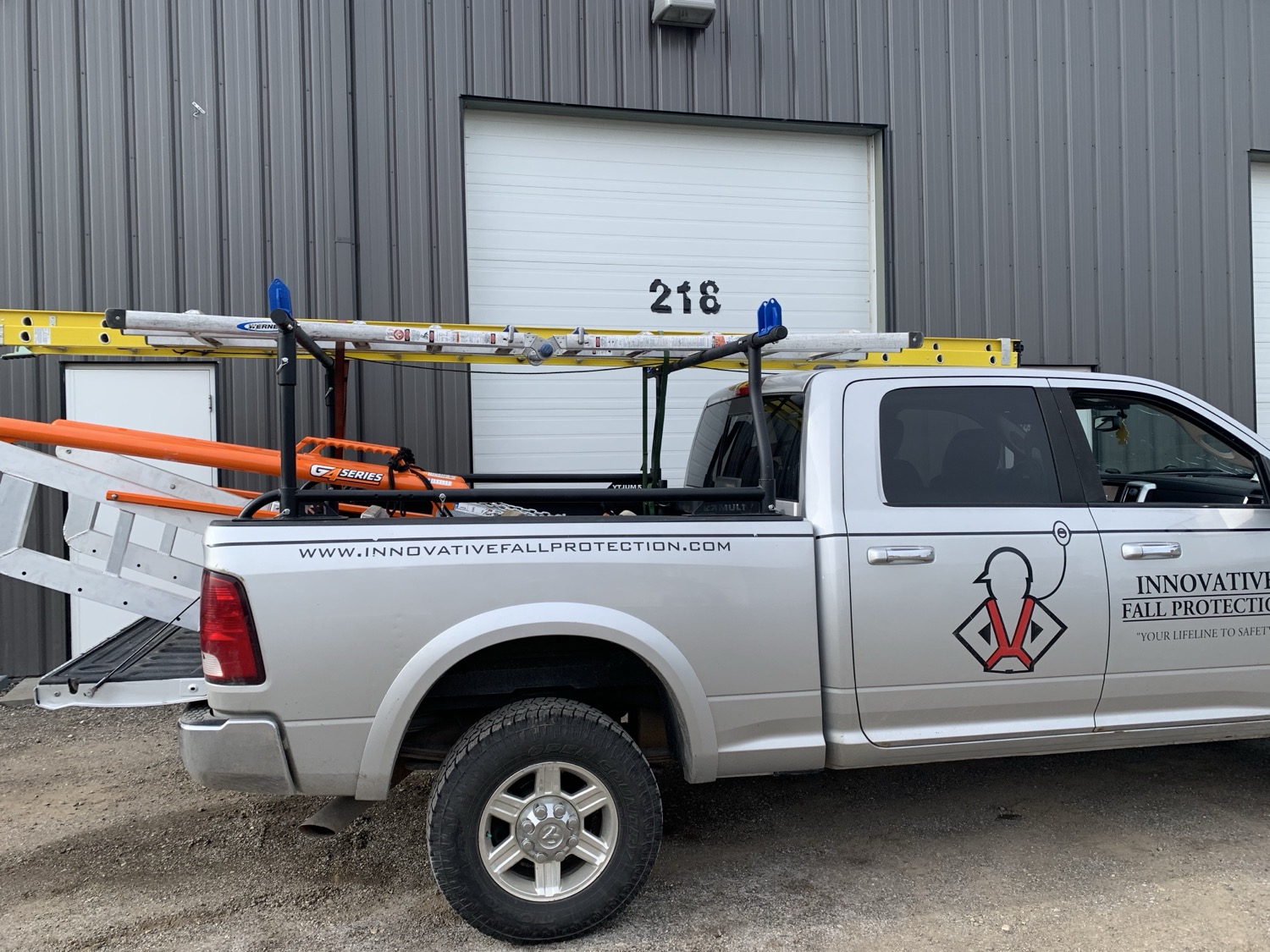

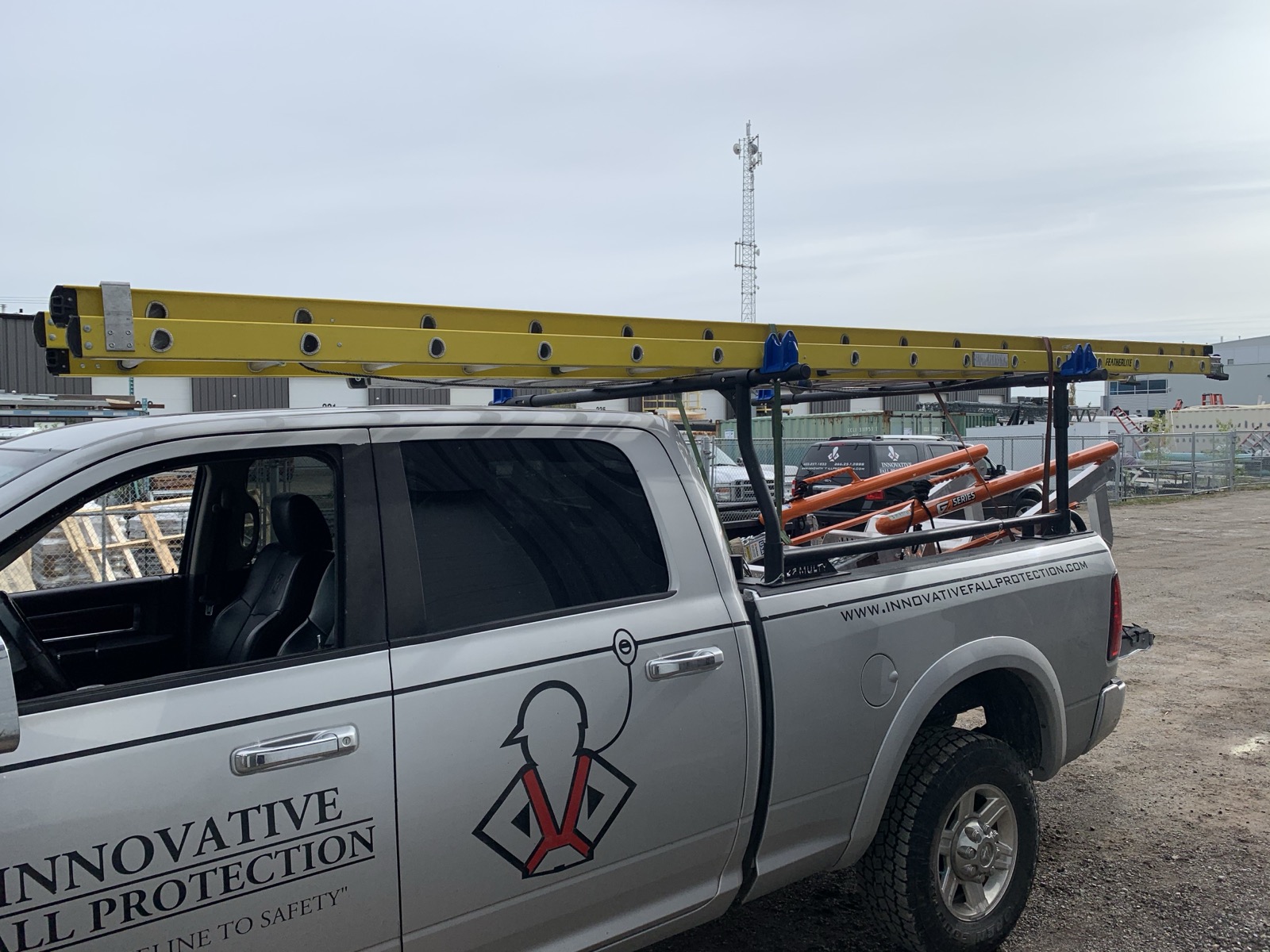

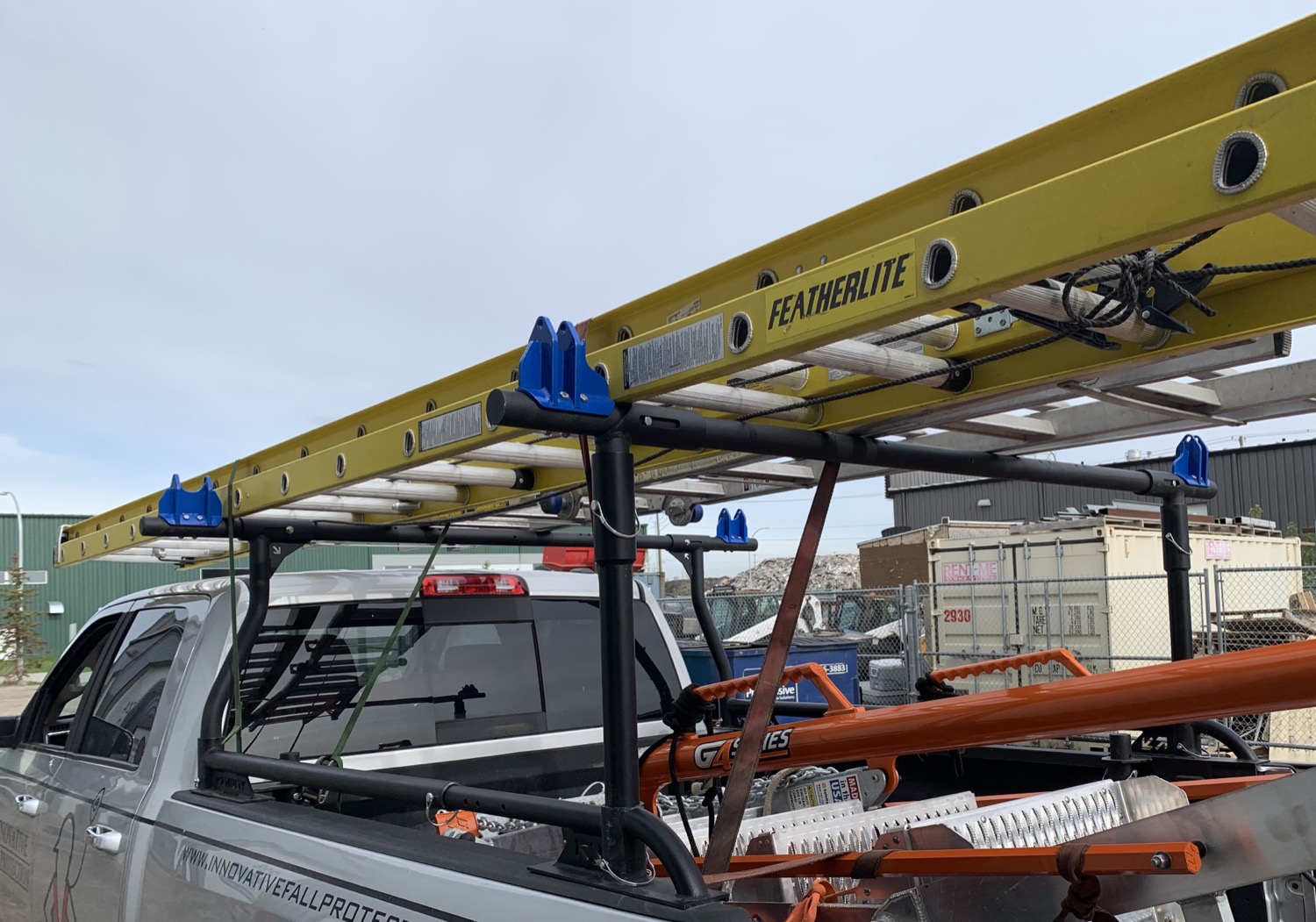

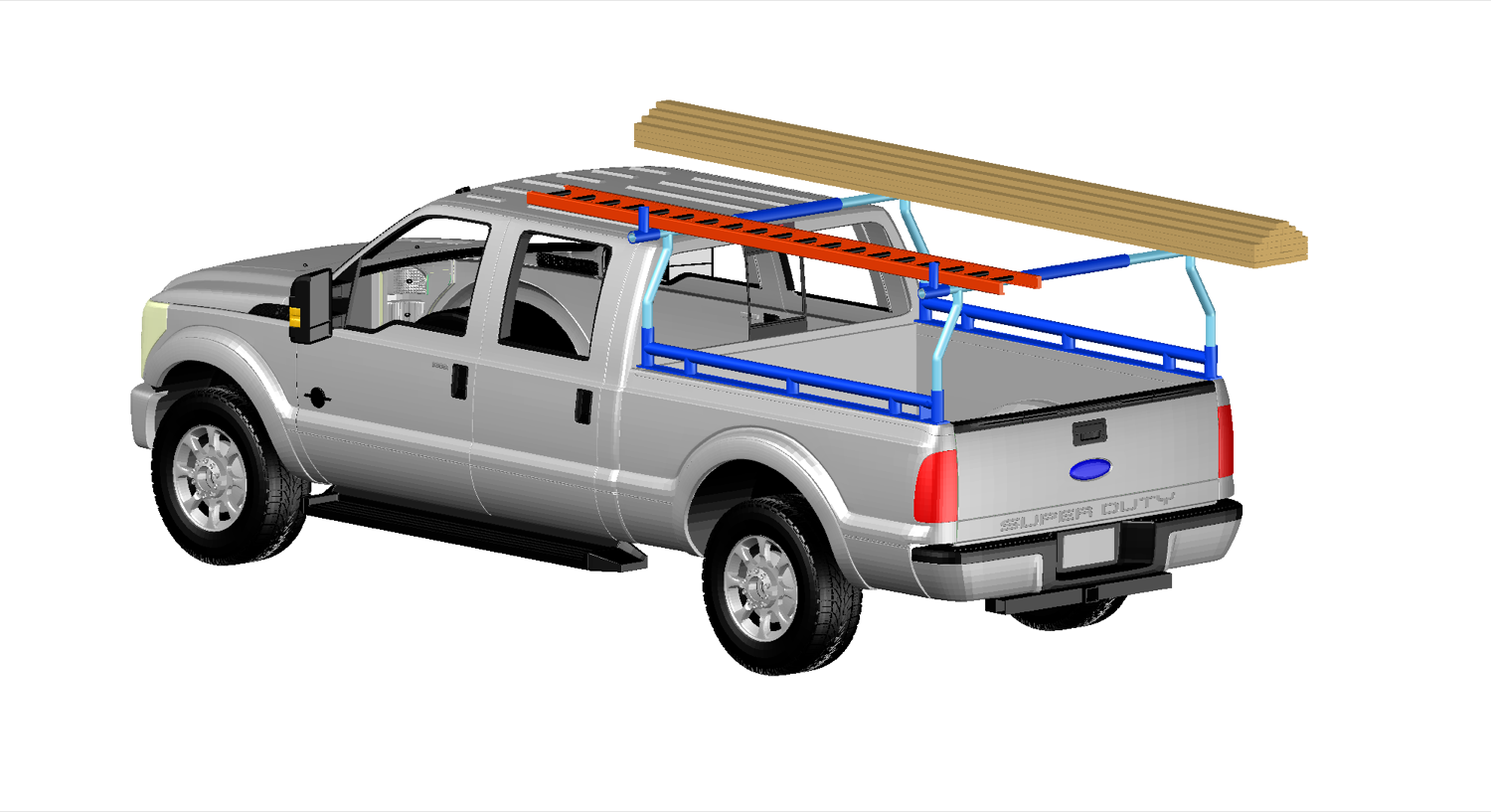

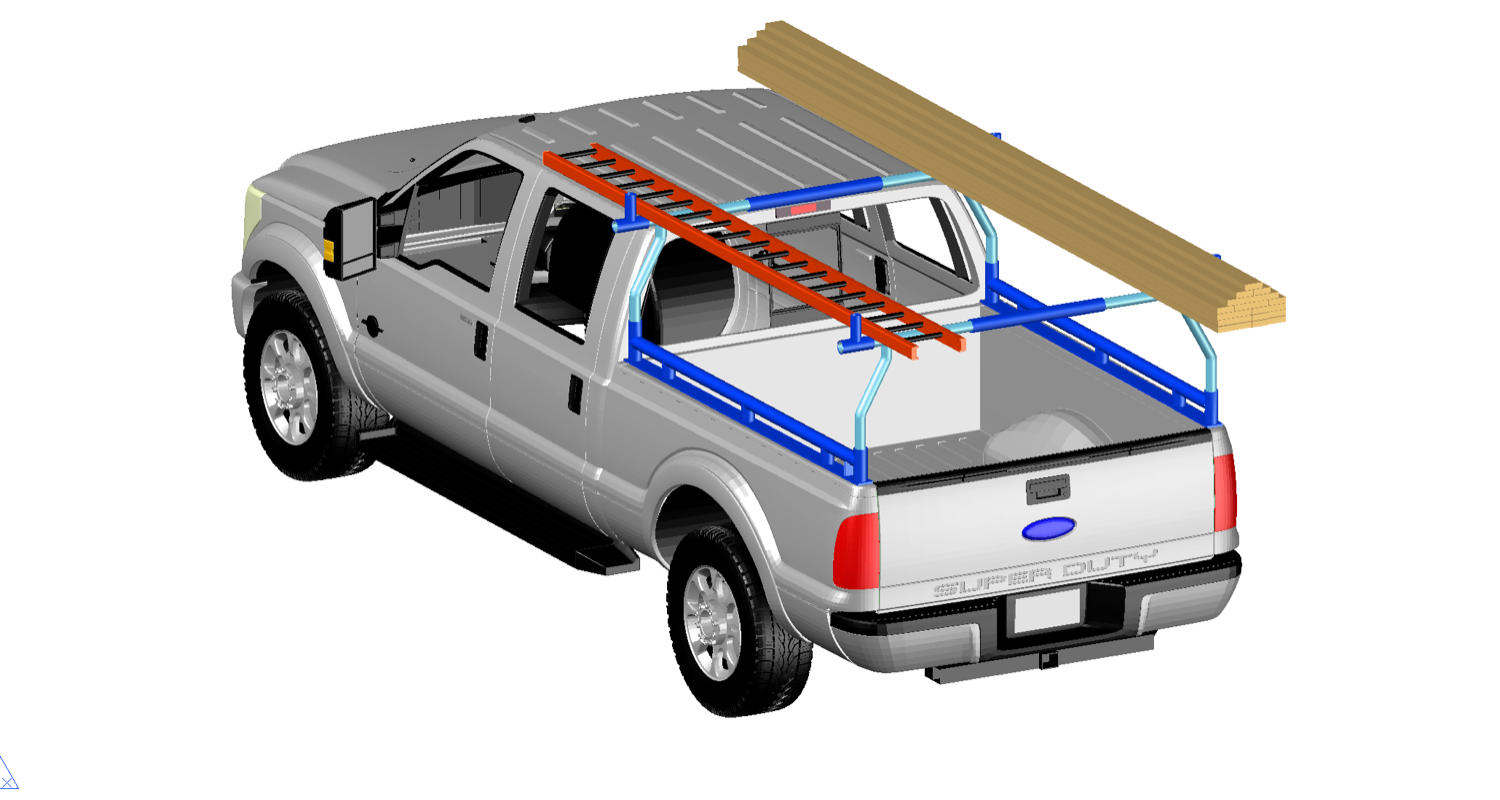

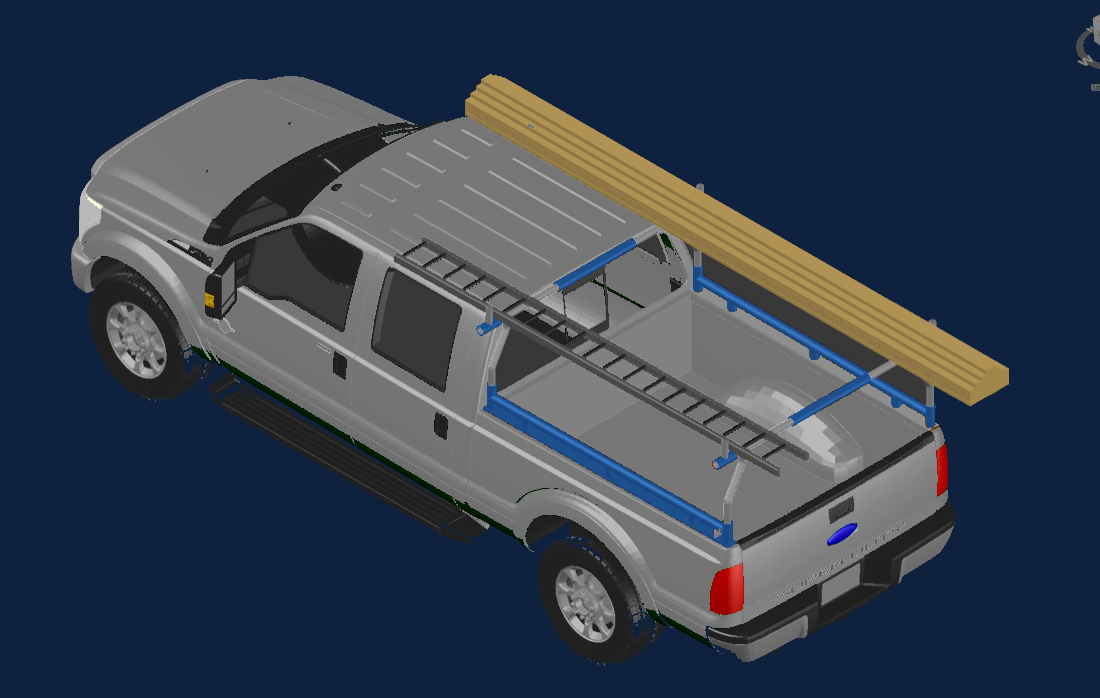

Ladders, pipe, lumber, toolboxes
PWC, ATV, snowmobile, small boat, golf carts

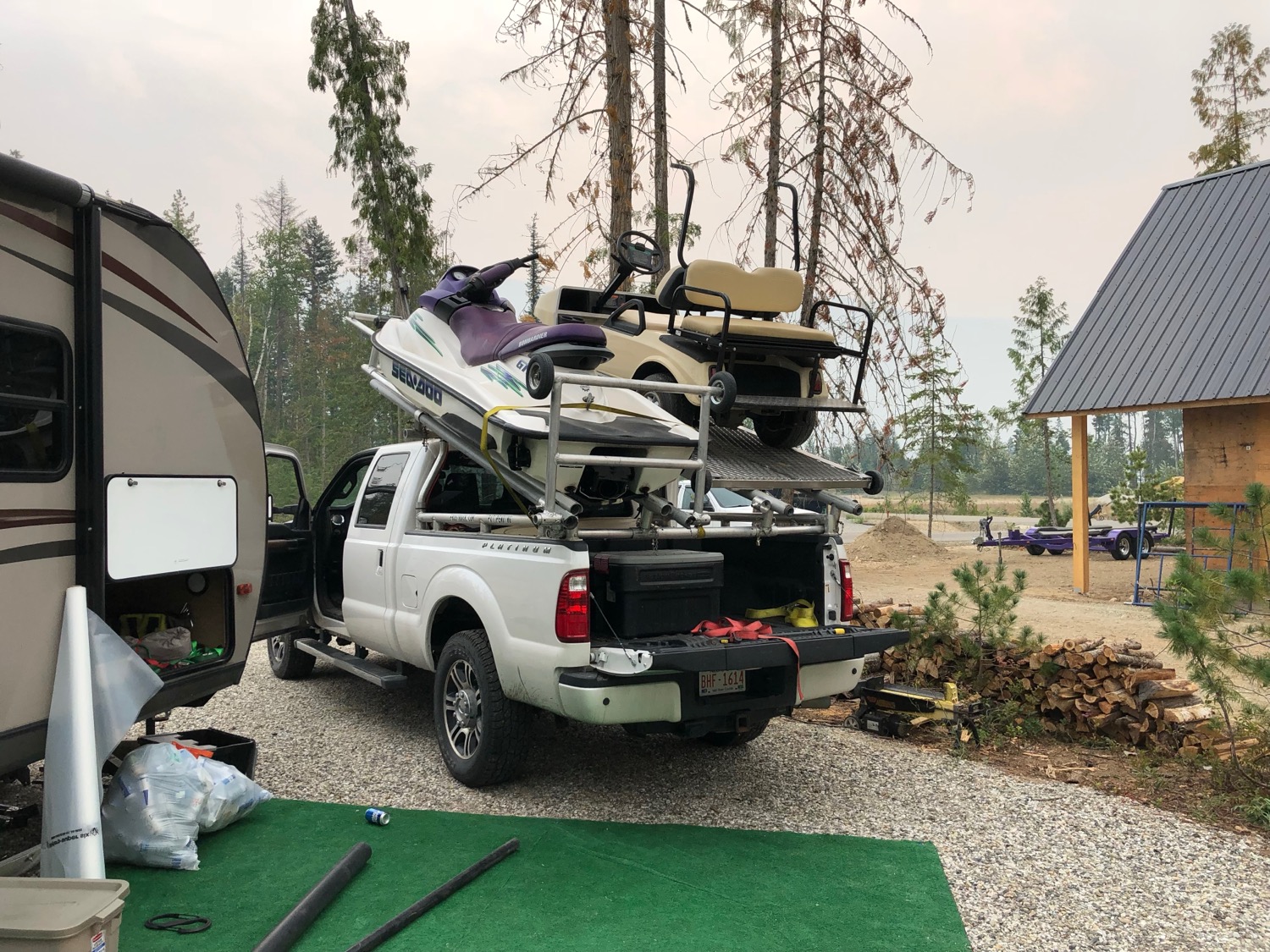

Camping and expedition loads; tent & storage concepts
Davit arm, winch tray, dolly carrier

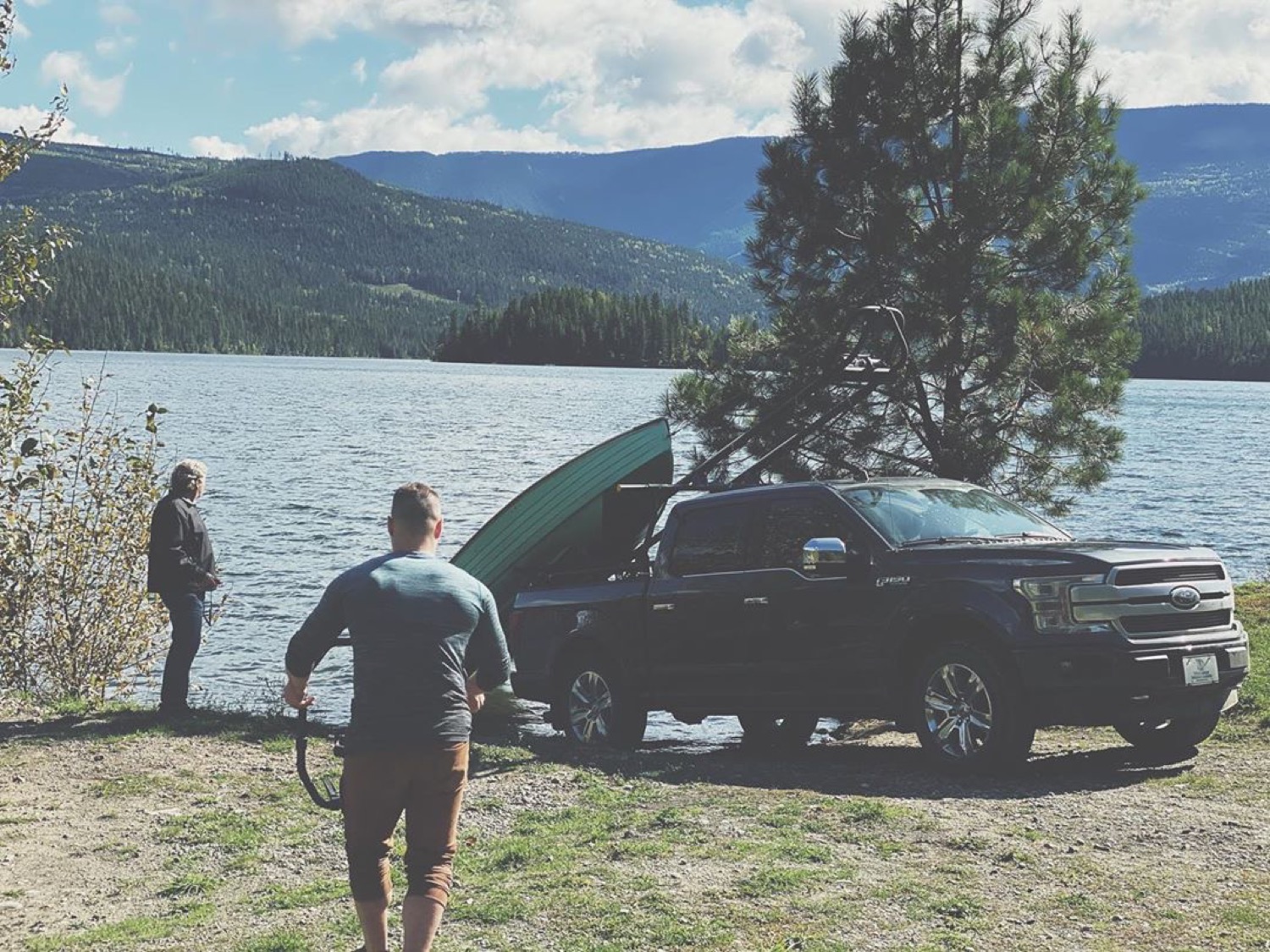

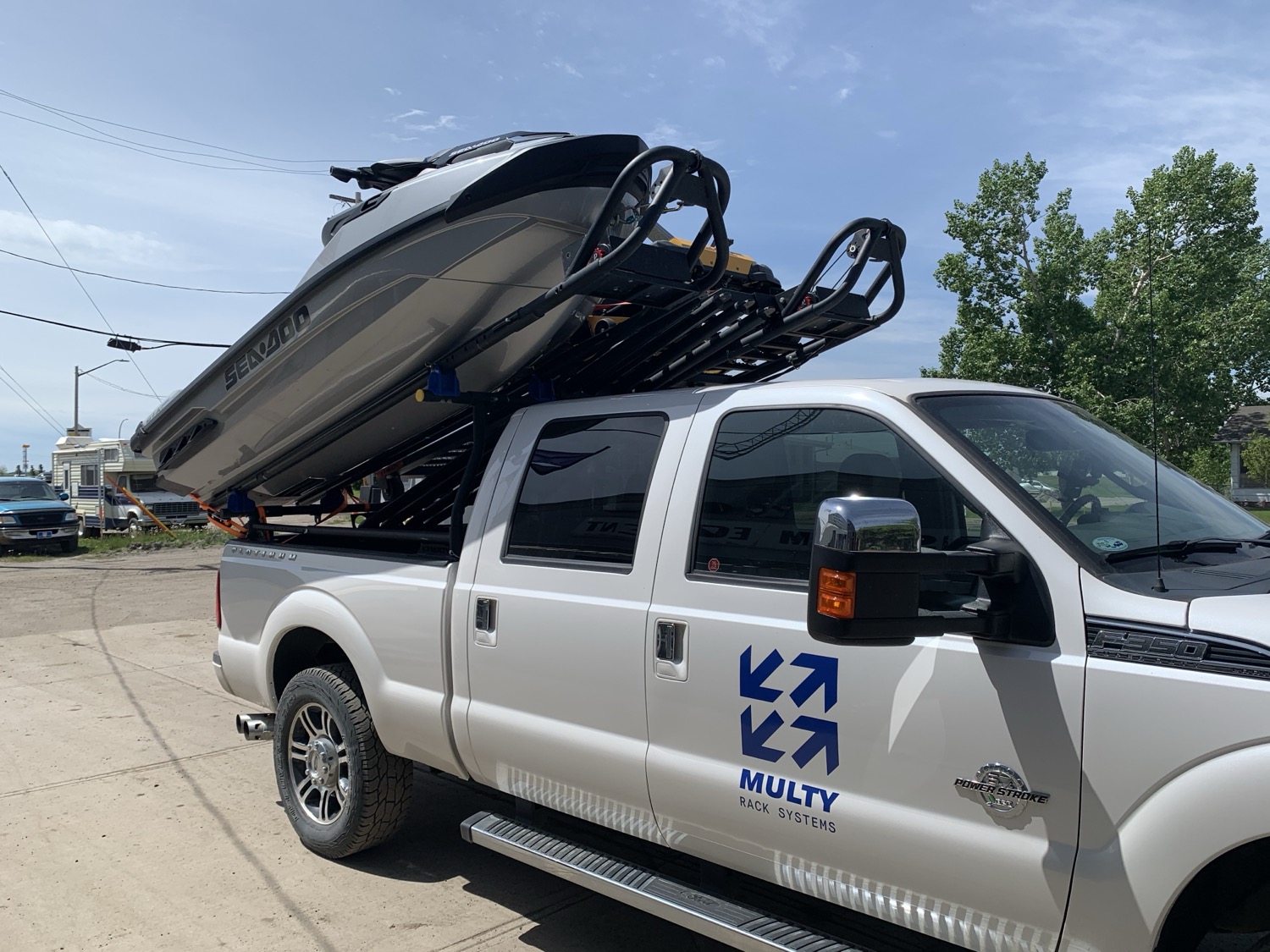

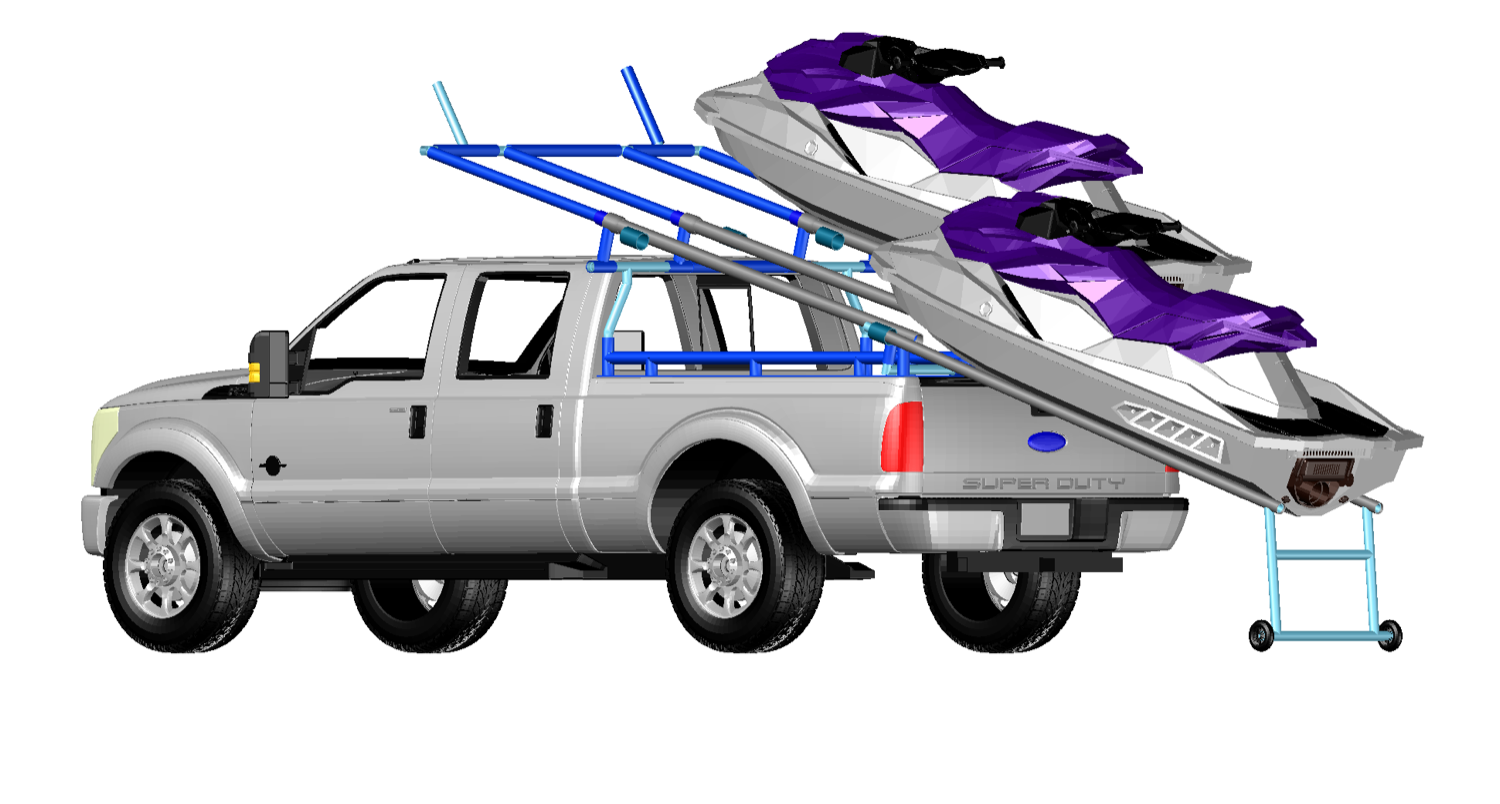

PWC & small-boat transport and shore launching
?Manufacturer & dealer accessory development
77 photos of working prototypes, CAD and field use. Filter by use case, click any image to enlarge.
Loading is winch-assisted and designed for one-person operation — no muscling machines up unstable ramps, no backing a trailer down a boat launch, no lifting heavy gear by hand.
Loading fails — why this matters. Real footage of conventional loading going wrong — ramps shifting, machines running away, loads going over. Each one is the kind of event the design is built to prevent.
The case isn’t a theoretical market-dollar figure. It’s the number of machines sold every year that have to get from a garage to a trail, a lake or a job site.
Frostrack does not need to capture the powersports market. It needs to capture a fraction of the owners who already need a better way to transport their machines — and every one of them owns a pickup.
For a manufacturer or licensee, Frostrack is an entry into the premium truck-rack and loading-platform market, with a built-in attachment roadmap and recurring upsell.
Covered by U.S. Patent 10,889,229 B2 ("Vehicle Rack"), with related U.S. and Canadian filings — a differentiated, defensible product, not a commodity rack.
Every customer is a recurring sale as the accessory catalog grows.
Natural step-up selling at the point of sale and after it.
Powersports, marine, overland, utility and contractor channels.
Snowmobile in winter, PWC in summer, utility all year.
OEM, dealer and aftermarket — direct and through partners.
A manufacturer, strategic buyer or licensing partner with aluminum fabrication, truck-accessory, powersports or dealer-channel capability.
Start the conversationTake a proven, protected design to market under your brand or ours. Engineering, prototypes and drawings are done.
Partner to put aluminum racks back into production. Fabrication drawings and working prototypes are ready to hand off.
Frostrack is patented (U.S. 10,889,229 B2), prototyped and ready for a partner to bring it back to market. If you license patents or fabricate aluminum products, let's open a conversation.
